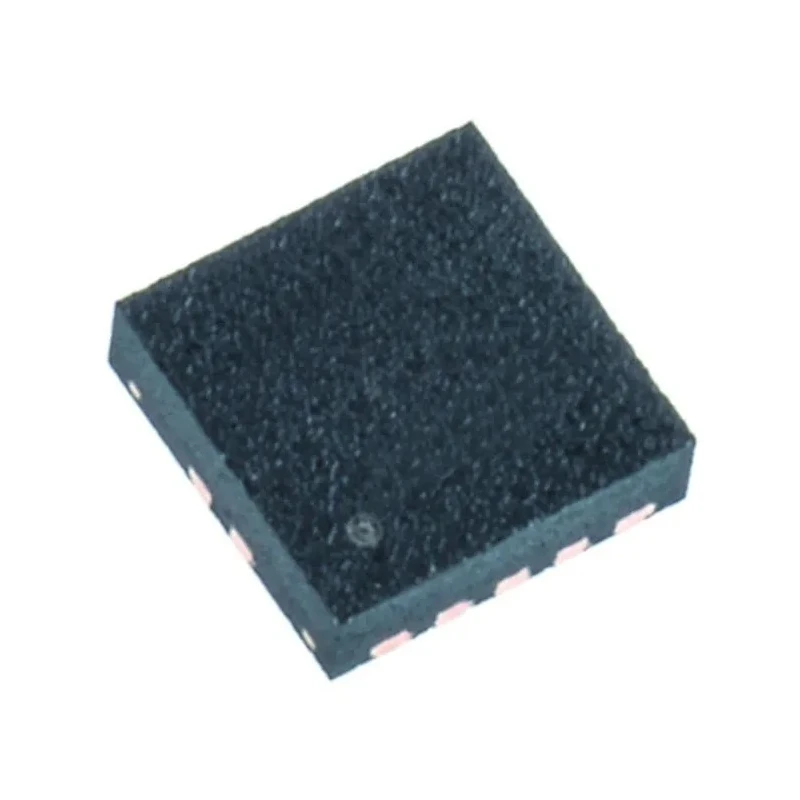

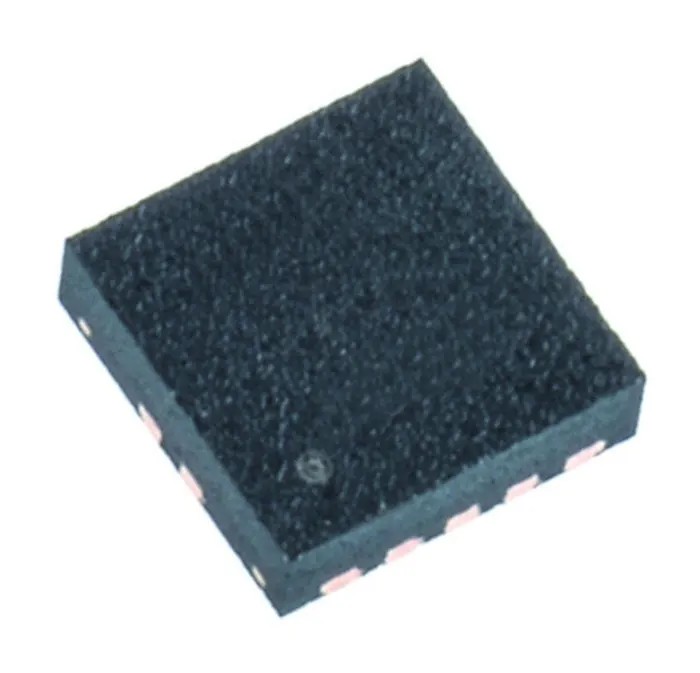

Texas Instruments 5-Channel Adjustable Inverting DC/DC Converter, -2V to -15V, 2.7V to 5.5V Input, 360mA TPS63700DRCT

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 5-Channel Adjustable Inverting DC/DC Converter, -2V to -15V, 2.7V to 5.5V Input, 360mA TPS63700DRCT

Name: Texas Instruments 5-Channel Adjustable Inverting DC/DC Converter, -2V to -15V, 2.7V to 5.5V Input, 360mA TPS63700DRCT
Brand: Texas Instruments
SKU: 203031
Price: 3.24 USD
Availability: InStock



Category DC/DC Converter Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	900μm
Length	3mm
Model	TPS63700DRCT
Width	3mm
Mount Type	Surface
Output type	Adjustable
Series	TPS63700
Topology	Inverting
Maximum Operating Temperature	85°C
Package Type	SON
Minimum Operating Temperature	-40°C
Number of outputs	5
Maximum Input Voltage	5.5V
Maximum Switching Frequency	1.38MHz
Maximum Output Current	360mA
Maximum Output Voltage	-2V
Minimum Input Voltage	2.7V
Pin Count	10
Minimum Output Voltage	-15V

Key Features

This converter utilizes a single inductor buck-boost topology for seamless step-down and step-up voltage regulation.
The device supports a maximum output current of 360mA and switches at a frequency up to 1.38MHz.
Encapsulated in a compact 10-pin SON surface-mount package with dimensions 3mm x 3mm x 0.9mm.
Operating temperature range from -40°C to 85°C enables reliability in diverse environments.
It provides adjustable output voltages suitable for battery-powered and handheld devices.
Designed without automotive standard compliance, ideal for industrial and general electronics applications.
Integrated switching regulator offers high efficiency for portable and fixed power supplies.

Product Description

Texas Instruments TPS63700DRCT is a highly integrated 5-channel inverting DC/DC converter that operates over a wide input voltage range from 2.7V to 5.5V and delivers adjustable output voltages from -2V to -15V, ideal for efficient power management solutions.

This device employs a buck-boost converter topology using a single inductor enabling automatic switching between step-up and step-down modes. This feature makes it especially suitable for battery-powered electronic products such as cellular phones and handheld devices that require stable voltage regulation under varying battery conditions.

The converter provides a maximum output current of 360mA with a maximum switching frequency of 1.38MHz. It is housed in a 10-pin SON surface-mount package with compact physical dimensions (3mm by 3mm and 900μm height), facilitating easy integration into space-constrained designs.

Operating in a wide temperature range from -40°C to 85°C, the TPS63700DRCT ensures stable performance in challenging environmental conditions, making it suitable for various industrial, laboratory, and consumer electronics applications.

This power management IC is designed without automotive standard certification, focusing on general industrial and commercial uses. Its adjustable output and integrated switching regulator enable high efficiency and optimized power consumption, essential for portable and embedded systems.

Single inductor buck-boost topology for seamless voltage conversion. Adjustable output voltage range: -2V to -15V. Wide input voltage range: 2.7V to 5.5V. Maximum output current of 360mA. High switching frequency up to 1.38MHz.

Compact 10-pin SON surface mount package (3mm x 3mm x 0.9mm). Operating temperature from -40°C to 85°C. Explore more in the Electronics & Electricals category at EnvMart for advanced power management ICs and DC/DC Converters from Texas Instruments and other leading manufacturers.
