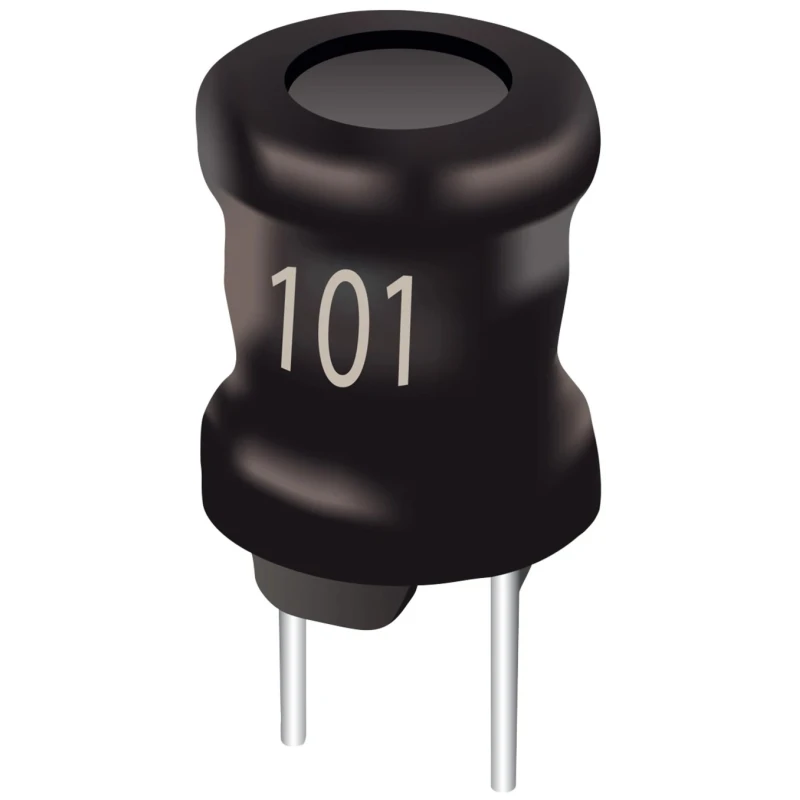

Bourns 82 mH Ferrite Leaded Inductor Radial Mount, 20 mA Max DC Current, 212 Ω Max DC Resistance, Max SRF 100 kHz, RLB0913
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 8.5mm |
| Brand | Bourns |
| Height | 12.5mm |
| Length | 17.5mm |
| Model | RLB0913 |
| Depth | 12.5mm |
| Packaging | Tray |
| Mount Type | Radial |
| Series | RLB0913 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Test Frequency | 0.08MHz |
| Core Material | Ferrite |
| Inductance | 82mH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 20mA |
| Maximum DC Resistance | 212Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Radial Lead |
| Maximum Self Resonant Frequency | 100kHz |
| Minimum Quality Factor | 20 |
| Lead Pitch | 5mm |
| Lead Diameter | 0.65mm |
| Bourns 82 mH Ferrite Leaded Inductor, Max SRF | 100 kHz, Q:20, 20 mA Idc, 212 Ω Rdc, RLB0913 |
Key Features
- The inductor features a radial lead termination style for secure mounting.
- It supports a maximum DC current of 20 mA ensuring reliable operation under low current conditions.
- Maximum DC resistance is 212 Ω contributing to minimal power loss.
- The ferrite core material delivers high inductance and magnetic stability.
- Operating temperature ranges from -55°C to 125°C, suitable for various industrial environments.
- Lead diameter measures 0.65 mm and lead pitch is 5 mm for compatibility with standard through-hole boards.
- The inductor dimension includes length of 17.5 mm, diameter of 8.5 mm, height and depth of 12.5 mm each.
- Inductance tolerance is ±10%, ensuring product precision.
Product Description
Bourns RLB0913 is an 82 millihenry ferrite leaded inductor designed for use in electronic circuits requiring reliable inductance and stable performance. This radial mount inductor delivers a maximum self-resonant frequency of 100 kHz and a quality factor of 20, making it highly suitable for EMI and RFI filtering applications.
Its ferrite core provides consistent inductance with low losses, and the device supports a maximum DC current of 20 mA. With a maximum DC resistance of 212 ohms, it offers efficient power handling with minimal losses.
Engineered for demanding conditions, the inductor operates within a temperature range of -55°C to 125°C. The radial lead termination style ensures firm PCB mounting, with a lead diameter of 0.65 mm and lead pitch of 5 mm compatible with standard radial footprints.
The physical dimensions of the inductor are 17.5 mm in length, 8.5 mm in diameter, and 12.5 mm each for height and depth. Inductance tolerance is ±10%, guaranteeing precision in timing and filtering roles.
This component complies with RoHS directives, emphasizing environmental safety and regulatory adherence. The minimum quality factor of 20 supports efficient signal filtering in power supplies, DC-DC converters, output chokes, and EMI/RFI filters.
The Bourns RLB0913 series is ideal for use in power supplies, EMI filters, and DC-DC converter circuits. Its high saturation current and stable performance ensure reliable operation in industrial and commercial electronics.
The ferrite core enhances magnetic efficiency and minimizes energy loss. Radial lead mounting simplifies integration into standard PCB layouts. Compliance with RoHS ensures the component meets global environmental standards.
Explore the Electronics Components catalog at EnvMart to find compatible inductors, capacitors, and other essential passive components from Bourns and other leading manufacturers.
Explore more products in our Leaded Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 82 millihenries (mH).
It supports a maximum DC current of 20 mA, ensuring reliable operation under low current conditions.
The maximum DC resistance is 212 ohms, which contributes to minimal power loss.
The maximum self-resonant frequency is 100 kHz, making it suitable for various applications including EMI and RFI filtering.
This inductor operates within a temperature range of -55°C to 125°C, suitable for various industrial environments.
The inductor has a length of 17.5 mm, a diameter of 8.5 mm, and both height and depth of 12.5 mm.
The lead diameter measures 0.65 mm and the lead pitch is 5 mm, making it compatible with standard through-hole boards.
It features a radial lead termination style for secure mounting on PCBs.
The inductance tolerance is ±10%, ensuring precision in its applications.
The core material of this inductor is ferrite, which provides high inductance and magnetic stability.
This model complies with RoHS directives, emphasizing environmental safety and regulatory adherence.
It is suitable for use in power supplies, EMI filters, and DC-DC converter circuits.
