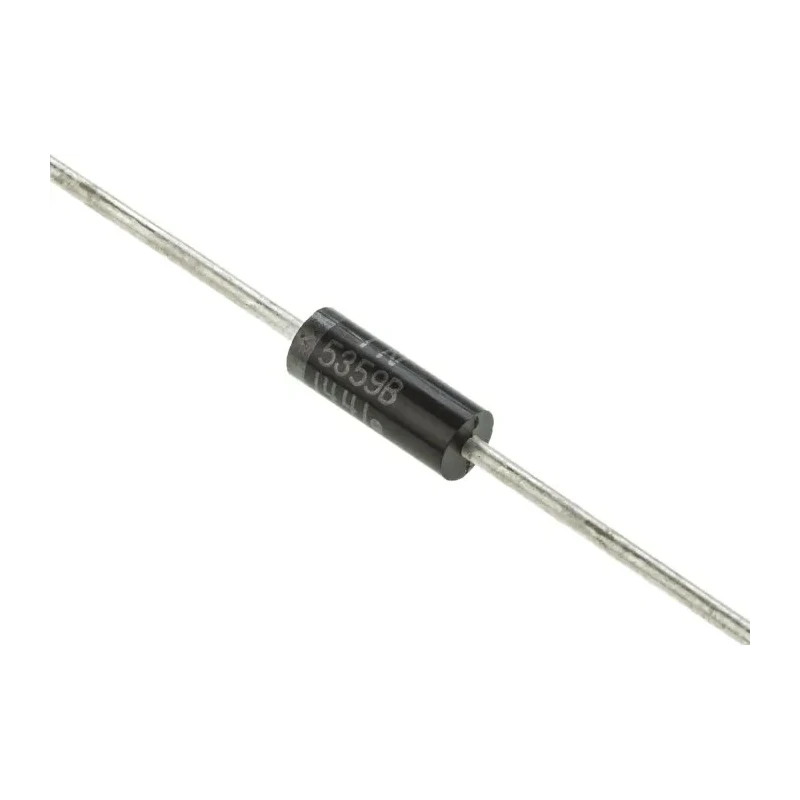

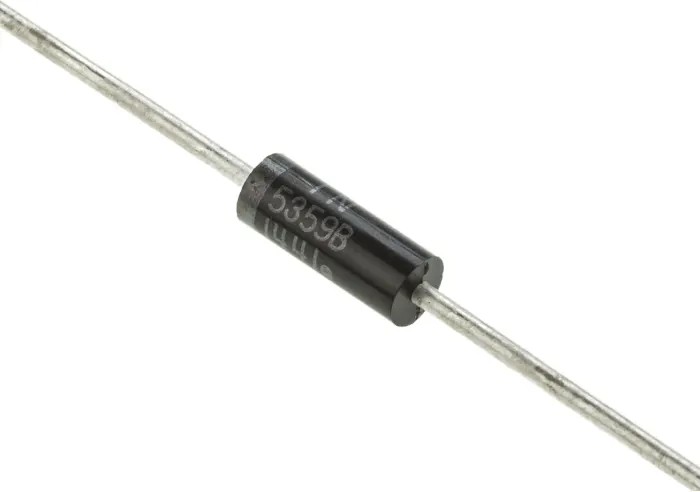

onsemi Zener Diode 24 V 5 W Voltage Regulator Through Hole DO-15 1N5359BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5359BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 50mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 24V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 3.5Ω |
| onsemi 1, 24 V Zener Diode, Single 5 W 5 % Through Hole 2-Pin DO-15Brand | onsemi |
| Vishay, 24V Zener Diode 6% 3.25 W Through Hole 2-Pin SOD-57Brand | Vishay |
| 24V Zener diode,1N5359B 5WBrand | ON Semiconductor |
Key Features
- Nominal zener voltage of 24 volts with ±5% tolerance.
- Maximum power dissipation is rated at 5 watts for reliable operation.
- Designed with a 2-pin configuration for easy through hole mounting.
- Constructed with a molded, void-free thermosetting plastic package offering corrosion resistance.
- Operates within a wide temperature range from -65°C to 200°C.
- Maximum zener impedance of 3.5 ohms ensures stable voltage regulation.
- Reverse leakage current is minimal at 500 nanoamps for efficiency.
- Ideal for industrial applications requiring precise voltage regulation.
Product Description
onsemi 1N5359BRLG Zener Diode is a single-element 24 V zener diode designed for voltage regulation with a power rating of 5 watts. It features a through hole 2-pin DO-15 package constructed from thermosetting plastic that is void-free and corrosion resistant, ensuring durability in various environments.
This device offers a nominal zener voltage of 24 V with tight ±5% tolerance, providing stable voltage regulation suitable for sensitive electronic circuits. Its maximum power dissipation capacity of 5 W allows it to handle moderate power applications effectively.
Operating temperature ranges from -65°C to 200°C enable this diode to perform reliably under harsh industrial conditions. The low maximum reverse leakage current of 500 nA and zener impedance of 3.5 Ω contribute to its efficiency and precision.
The 1N53 series is recognized for its Surmetic™ axial-leaded design, facilitating easy installation in through hole mounting applications. The leads are corrosion resistant and readily solderable, making it ideal for industrial, laboratory, manufacturing, and electronic circuit design environments requiring robust voltage regulation components.
Nominal zener voltage of 24 volts with ±5% tolerance. Power dissipation up to 5 watts for robust operation. 2-pin through hole axial-lead DO-15 package. Wide operating temperature range: -65°C to 200°C. Low reverse leakage current of 500 nA.
Corrosion resistant and solderable leads. Surmetic™ series for reliable performance. Used in industrial electronic circuit applications. Thermosetting plastic molded package for protection. Stable voltage regulator for precision applications.
This onsemi Zener diode is categorized in EnvMart under Electronics & Electricals > Semiconductor > Zener Diodes, making it an essential component for professionals designing power management and voltage regulation circuits.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal zener voltage of this diode is 24 volts with a tolerance of ±5%.
The maximum power dissipation for this model is rated at 5 watts, allowing for reliable operation in moderate power applications.
It features a DO-15 package type with a through hole mounting configuration, designed for easy installation.
This diode operates within a wide temperature range from -65°C to 200°C, making it suitable for harsh industrial conditions.
The maximum reverse leakage current is minimal at 500 nanoamps, contributing to its efficiency.
The maximum zener impedance is 3.5 ohms, ensuring stable voltage regulation.
This zener diode has a 2-pin configuration, facilitating easy connections in circuits.
It is designed for industrial applications requiring precise voltage regulation, making it suitable for sensitive electronic circuits.
The diode is constructed with a molded, void-free thermosetting plastic package, which offers corrosion resistance.
The test current for this model is 50 mA, which is relevant for its performance evaluation.
This zener diode is part of the 1N53 series, which is recognized for its axial-leaded design.
The country of origin for this diode is India.
