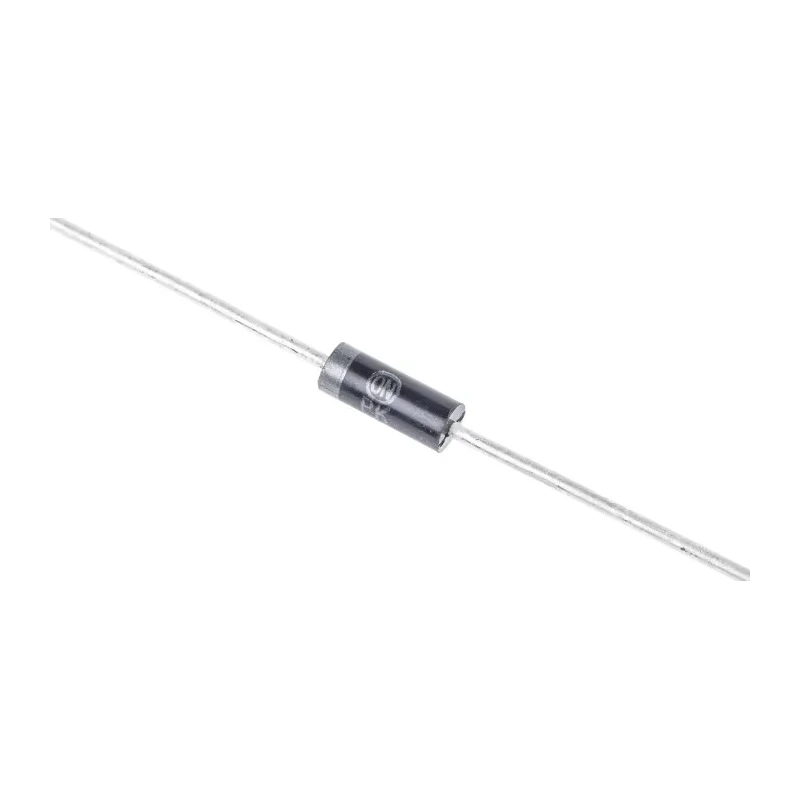

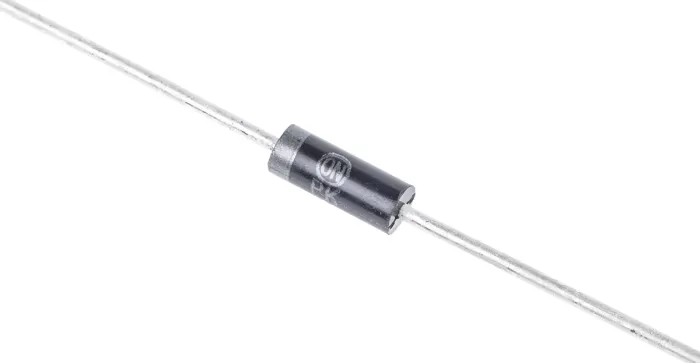

onsemi Zener Diode 3.9 V Voltage Regulator, 5 W Power Dissipation, Through Hole 2-Pin DO-15 1N5335BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5335BRLG |
| Mount Type | Through Hole |
| Series | 1N5335B |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 320mA |
| Maximum Reverse Leakage Current | 50μA |
| Nominal Zener Voltage Vz | 3.9V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2Ω |
| onsemi, 3.6V Zener Diode 5% 5 W Through Hole 2-Pin 017AA-01Brand | ON Semiconductor |
| 3.6V Zener diode,1N5334B 5WBrand | ON Semiconductor |
Key Features
- Single element silicon-oxide passivated junction for reliable voltage regulation.
- 5 watt maximum power dissipation suitable for industrial applications.
- Axial leaded through-hole mount with 2 pins for easy PCB mounting.
- Tight voltage regulation with ±5% tolerance at 3.9 V nominal voltage.
- Operating temperature range from -65°C to 200°C ensures durability.
- Low leakage current of 50 microamperes maximizes efficiency.
- Corrosion-resistant molded thermosetting plastic package for environmental protection.
- 320 mA test current with a maximum Zener impedance of 2 ohms.
Product Description
onsemi 1N5335BRLG is a high-quality Zener Diode designed as a voltage regulator with a nominal Zener voltage of 3.9 V and maximum power dissipation of 5 W. It features a single silicon-oxide passivated junction element, providing tight voltage regulation and superior performance in industrial and electronic applications.
The device is packaged in a robust through-hole DO-15 axial lead configuration, making it suitable for PCB mounting. Its molded, thermosetting plastic package ensures reliability with corrosion resistance, and it meets requirements for tough environmental conditions.
Key features include a 320 mA test current, 2-pin configuration, and low reverse leakage current of 50 microamperes. The operating temperature range from -65°C to 200°C allows use in demanding industrial environments.
This Zener diode is ideal for use in voltage regulation, protecting circuits by maintaining steady voltage levels under variable load conditions. Typical applications include industrial electronic circuits, power supplies, and voltage reference modules.
Single element silicon-oxide passivated junction for reliable voltage regulation. 5 watt maximum power dissipation suitable for industrial applications. Axial leaded through-hole mount with 2 pins for easy PCB mounting. Tight voltage regulation with ±5% tolerance at 3.9 V nominal voltage.
Operating temperature range from -65°C to 200°C ensures durability. Low leakage current of 50 microamperes maximizes efficiency. Corrosion-resistant molded thermosetting plastic package for environmental protection. 320 mA test current with a maximum Zener impedance of 2 ohms.
Compact size with 8.89 mm length and 3.68 mm height dimensions. Ideal for industrial voltage regulation and power management circuits.
onsemi products provide reliable performance for industrial, laboratory, and manufacturing applications where accurate voltage regulation is critical. For more semiconductor components, browse our Electronics & Electricals category.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 3.9 V.
This model has a maximum power dissipation of 5 W.
The test current for this Zener diode is 320 mA.
The operating temperature range for this diode is from -65°C to 200°C.
It is packaged in a DO-15 axial lead configuration suitable for through-hole mounting.
The maximum reverse leakage current for this model is 50 microamperes.
The maximum Zener impedance at the test current is 2 ohms.
This diode has a 2-pin configuration.
The height of this diode is 3.68 mm and the length is 8.89 mm.
The 1N5335BRLG is a single element Zener diode designed for voltage regulation.
The package is made from corrosion-resistant molded thermosetting plastic, providing environmental protection.
The 1N5335BRLG is manufactured in India.
