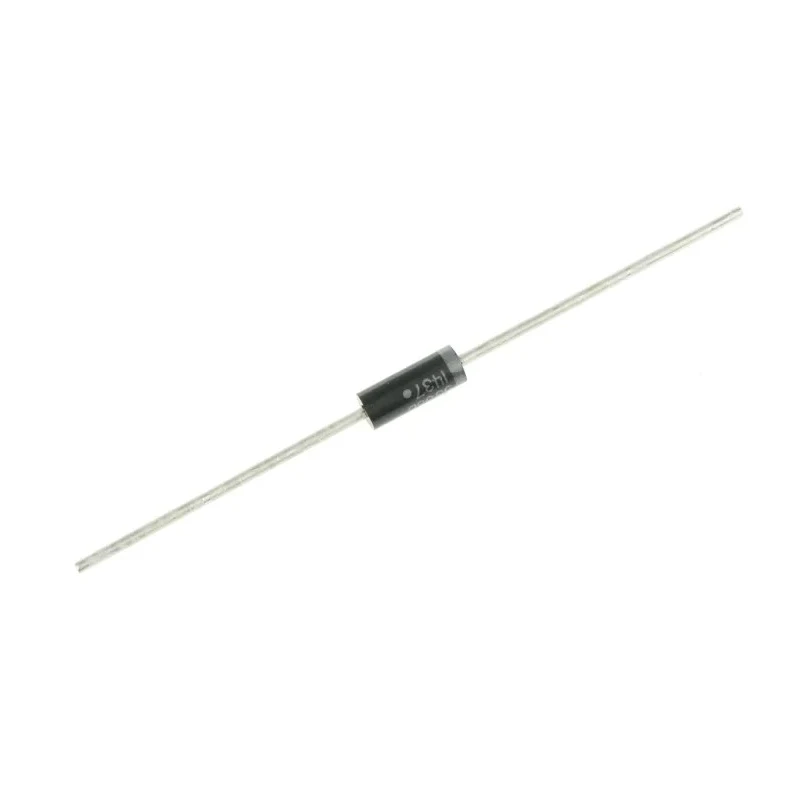

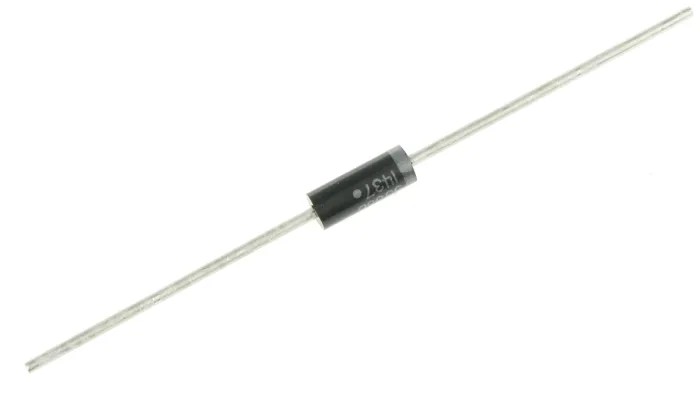

onsemi Zener Diode 200 V, 5 W, 5% Tolerance, Through Hole 2-Pin DO-15 1N5388BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5388BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 200V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 480Ω |
Key Features
- Operates with a test current of 5 mA ensuring stable voltage regulation.
- Maximum Zener impedance is 480 ohms for efficient voltage stabilization.
- Designed for ambient operating temperatures from -65°C up to 200°C.
- Features low reverse leakage current of maximum 500 nA for reliable performance.
- The diode is a single element with 2 pins, suitable for through-hole mounting.
- The package dimensions include a height of 3.68 mm and length of 8.89 mm.
- Belongs to the 1N53 series, ideal for industrial and electronic applications.
- Meets no specific automotive or standards approvals, reflecting a general industrial usage scope.
Product Description
onsemi 1N5388BRLG Zener Diode is a high-quality semiconductor device designed to provide precise voltage regulation with a nominal Zener voltage of 200 V and power dissipation capability of 5 W. Housed in a DO-15 through-hole package with 2 pins, this diode ensures robust performance in demanding industrial, electronic, and power supply applications.
This diode operates with a test current of 5 mA and features a maximum Zener impedance of 480 ohms, promoting stable and efficient voltage regulation in sensitive circuitry. It demonstrates a minimal maximum reverse leakage current of 500 nA, contributing to low power losses and enhanced reliability.
Designed to operate over a wide temperature range from -65°C to 200°C, the 1N5388BRLG diode is suitable for a variety of environments, including harsh industrial and laboratory settings. Its single element construction in the 1N53 series makes it an ideal choice for voltage regulation and protection tasks.
Operates with a test current of 5 mA ensuring stable voltage regulation. Maximum Zener impedance of 480 ohms for superior voltage stabilization. Operating temperature range from -65°C to 200°C for versatility in extreme conditions.
Low maximum reverse leakage current of 500 nA enhances efficiency. Single-element, 2-pin through-hole package DO-15 for easy installation. Compact package dimensions: 3.68 mm height and 8.89 mm length fit standard designs.
Part of the 1N53 series known for consistency and reliability in industrial use. Lacks specific automotive or formal approvals, intended for general semiconductor applications.
This onsemi Zener Diode is widely used in industrial electronics, power supply voltage regulation, protection circuits, and laboratory equipment. Its robust design supports reliable performance in manufacturing, construction, and commercial electronics projects. Suitable for engineers and technicians requiring a durable voltage regulation diode with confirmed specifications.
Explore more options in our Semiconductor and Zener Diode category for compatible components and advanced semiconductor devices at EnvMart.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 200 V.
The maximum power dissipation for this model is 5 W.
It operates with a test current of 5 mA to ensure stable voltage regulation.
The maximum reverse leakage current for this diode is 500 nA.
The package dimensions include a height of 3.68 mm and a length of 8.89 mm.
The maximum Zener impedance is 480 ohms, which promotes efficient voltage stabilization.
It is designed to operate in ambient temperatures ranging from -65°C to 200°C.
This diode features a 2-pin configuration suitable for through-hole mounting.
This model is part of the 1N53 series, known for its voltage regulation capabilities.
The diode configuration is single, consisting of one element per chip.
It is suitable for industrial electronics, power supply voltage regulation, and protection circuits.
The country of origin for this diode is India.
