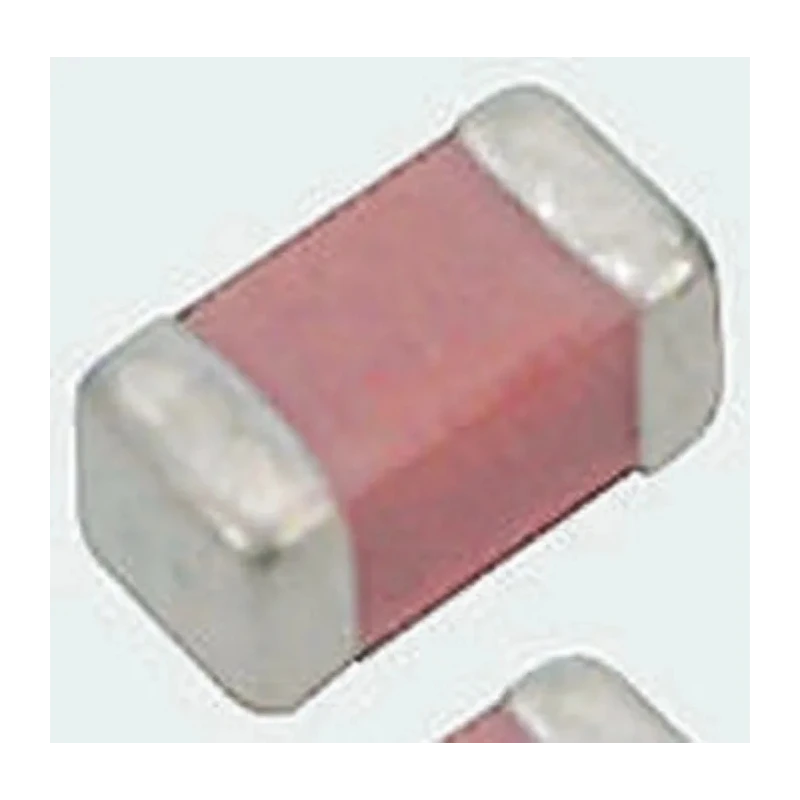

Vishay 56 pF 100V dc Surface Mount Multilayer Ceramic Capacitor C0G Dielectric ±5 % Tolerance VJ0603A560JXBAC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V dc |
| Brand | Vishay |
| Height | 0.94mm |
| Length | 1.6mm |
| Model | VJ0603A560JXBAC |
| Packaging | 7 in Reel/Paper Tape |
| Width | 0.8mm |
| Mount Type | Surface |
| Series | VJ |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 150°C |
| Tolerance | ±5 % |
| Capacitance | 56pF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC 61249-2-21, RoHS, JEDEC JS709A |
| Package/Case | 0603 |
| Dielectric | C0G |
Key Features
- Capacitance of 56 pF suitable for precise electronic applications.
- Surface mount package with 0603 case size enhances PCB integration.
- C0G (NP0) dielectric offers ultra-stable capacitance with low temperature coefficient.
- Excellent aging characteristics ideal for timing and tuning circuits.
- Provides low dissipation and reliable filtering in electronic equipment.
- Manufactured with Noble Metal Electrode system ensuring quality and reliability.
- Operating temperature range from -55°C to 150°C for broad environment compatibility.
Product Description
Vishay VJ0603A560JXBAC is a Surface Mount Multilayer Ceramic Capacitor designed with a precise 56 pF capacitance suitable for high-performance electronic applications. Featuring a voltage rating of 100V dc and C0G dielectric, it ensures ultra-stable capacitance and low temperature coefficient, making it ideal for critical tuning and filtering tasks.
The 0603 package case size (1.6mm length x 0.8mm width x 0.94mm height) allows for compact PCB layouts, supporting modern electronic device designs. Defined by a ±5 % tolerance, this MLCC offers excellent reliability and consistency in performance.
The capacitor utilizes a Noble Metal Electrode (NME) system and a wet build process, providing exceptional aging characteristics and low dissipation factor. Its temperature operating range from -55°C to 150°C enables functionality in harsh industrial, automotive, and laboratory environments.
This Vishay MLCC is suitable for applications including timing and tuning circuits, sensor and scanner devices, decoupling and filtering, as well as surge suppression in advanced electronics manufacturing. With conformity to IEC 61249-2-21, RoHS compliance, and JEDEC JS709A standards, it meets stringent quality and environmental criteria.
Capacitance of 56 pF suitable for precise electronic applications. Voltage rating of 100V dc for durable performance. Surface mount package with 0603 case size enhances PCB integration. C0G (NP0) dielectric offers ultra-stable capacitance with low temperature coefficient.
Excellent aging characteristics ideal for timing and tuning circuits. Provides low dissipation and reliable filtering in electronic equipment. Manufactured with Noble Metal Electrode system ensuring quality and reliability.
Operating temperature range from -55°C to 150°C for broad environment compatibility.
This Vishay multilayer ceramic capacitor is widely used across industrial, laboratory, automotive, and manufacturing sectors, ensuring precise capacitance stability under varied conditions. Explore our extensive catalog of MLCCs and electronic components at EnvMart for reliable, high-quality parts to support your projects and production requirements.
Explore more products in our MLCCs - Multilayer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 56 pF, suitable for precise electronic applications.
The voltage rating of this capacitor is 100V dc, ensuring suitable performance for various applications.
This model features a C0G (NP0) dielectric, which provides ultra-stable capacitance with a low temperature coefficient.
The dimensions of this capacitor are 1.6mm in length, 0.8mm in width, and 0.94mm in height.
It has a tolerance of ±5 %, ensuring reliable and consistent performance in applications.
This unit supports surface mount installation, facilitating compact PCB layouts.
It is packaged in a reel with paper tape, suitable for automated assembly processes.
It conforms to IEC 61249-2-21, RoHS, and JEDEC JS709A standards, meeting strict quality and environmental criteria.
This capacitor is suitable for timing and tuning circuits, sensor devices, decoupling, filtering, and surge suppression.
The country of origin for this model is India.
It is manufactured with a Noble Metal Electrode (NME) system, ensuring quality and reliability.
