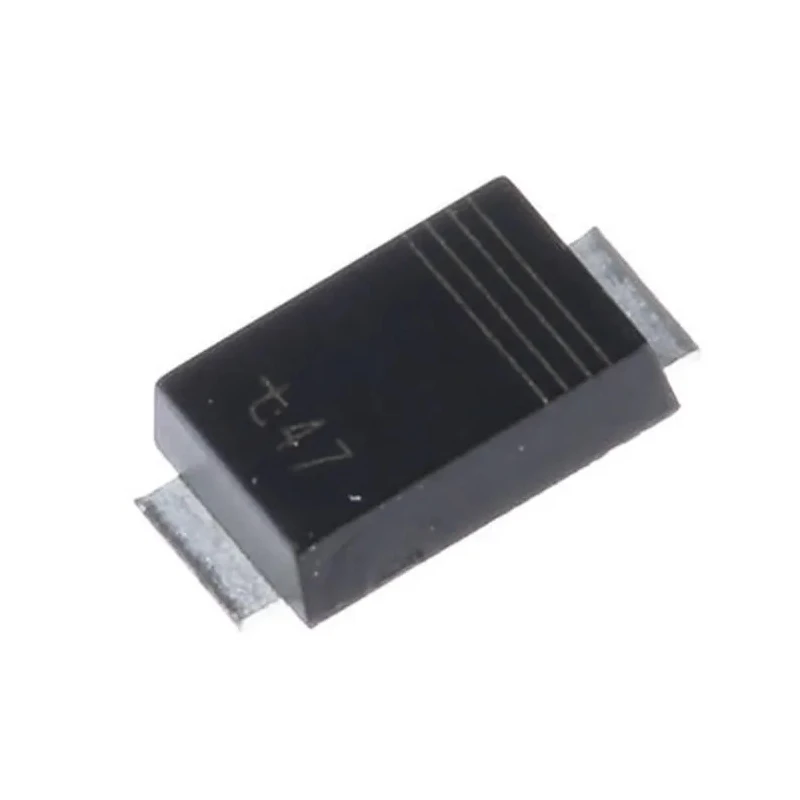

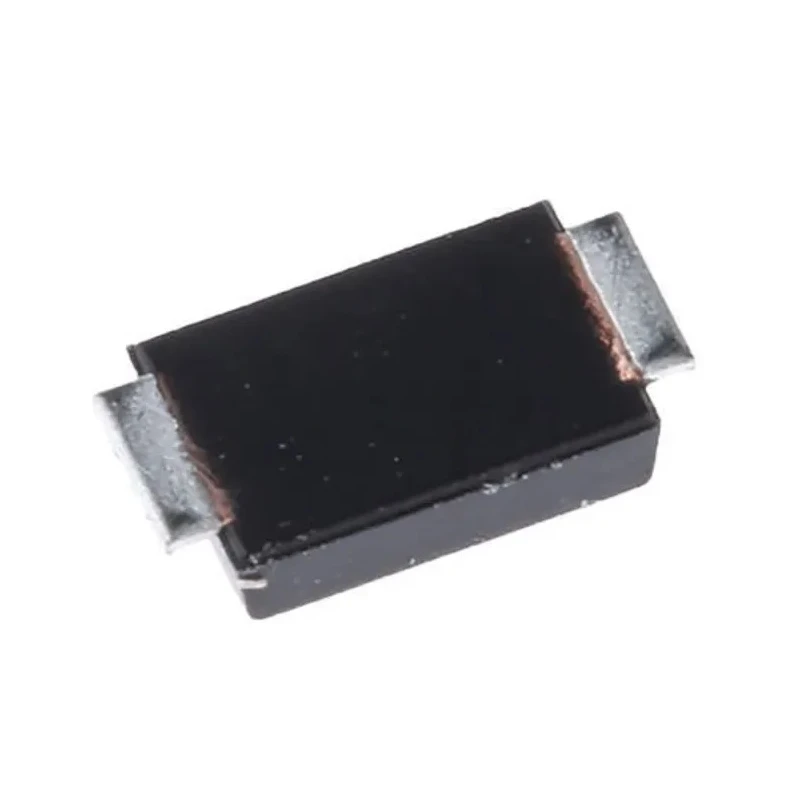

ROHM 40 V 1 A Schottky Diode 2-Pin Surface Mount SOD-323HE RB160VAM-40TR

Name: ROHM 40 V 1 A Schottky Diode 2-Pin Surface Mount SOD-323HE RB160VAM-40TR
Brand: ROHM
SKU: 201492
Price: 0.13 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.5mm
Length	2mm
Model	RB160VAM-40TR
Width	1.4mm
Mount Type	Surface
Series	RB160VAM
Maximum Operating Temperature	150°C
Package Type	SOD-323HE
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	10A
Maximum Forward Voltage Vf	550mV

Key Features

Maximum continuous forward current of 1 ampere.
Peak reverse repetitive voltage rating of 40 volts.
Low forward voltage drop of 550 millivolts ensures high efficiency.
Compact SOD-323HE package with 2 pins for surface mounting.
Maximum operating temperature up to 150 degrees Celsius.
Peak non-repetitive forward surge current capability of 10 amperes.
Very low peak reverse current of 50 microamperes to minimize leakage.

Product Description

ROHM RB160VAM-40TR Schottky Diode is a highly reliable 40 V, 1 A rectifier device packaged in a compact 2-pin SOD-323HE surface mount package. It features a low forward voltage drop of 550 mV which improves power efficiency and enables reduction of heat generation in high frequency switching circuits.

This single diode configuration is designed for use in a variety of electronic applications including power supply rectification, voltage clamping, and reverse polarity protection in industrial, automotive, and consumer electronic devices. The device supports maximum continuous forward currents of 1 A, with a peak surge capacity of 10 A, ensuring robustness under transient load conditions.

The diode exhibits a peak reverse repetitive voltage rating of 40 V with a minimal reverse leakage current of 50 µA, making it suitable for low-noise, high-performance semiconductor circuits. Its maximum operating temperature rating of 150°C allows reliable operation under demanding thermal environments.

The SOD-323HE surface mount package offers a small footprint with dimensions of 2 mm length, 1.4 mm width, and 0.5 mm height, facilitating compact and efficient PCB layouts. The package also supports automated assembly techniques to optimize manufacturing efficiency.

Maximum continuous forward current of 1 ampere. Maximum forward voltage drop of 550 millivolts. Peak reverse repetitive voltage rating of 40 volts. Peak reverse current limited to 50 microamperes. Peak surge current capability of 10 amperes.

Operating temperature range up to 150 degrees Celsius. Compact 2-pin SOD-323HE surface mount package. Dimensions: 2 mm × 1.4 mm × 0.5 mm for space-saving designs.

This ROHM Schottky diode is ideal for industrial electronics, power management, consumer electronics, and automotive circuits. Its balance of performance, reliability, and package size supports efficient, robust semiconductor designs.
