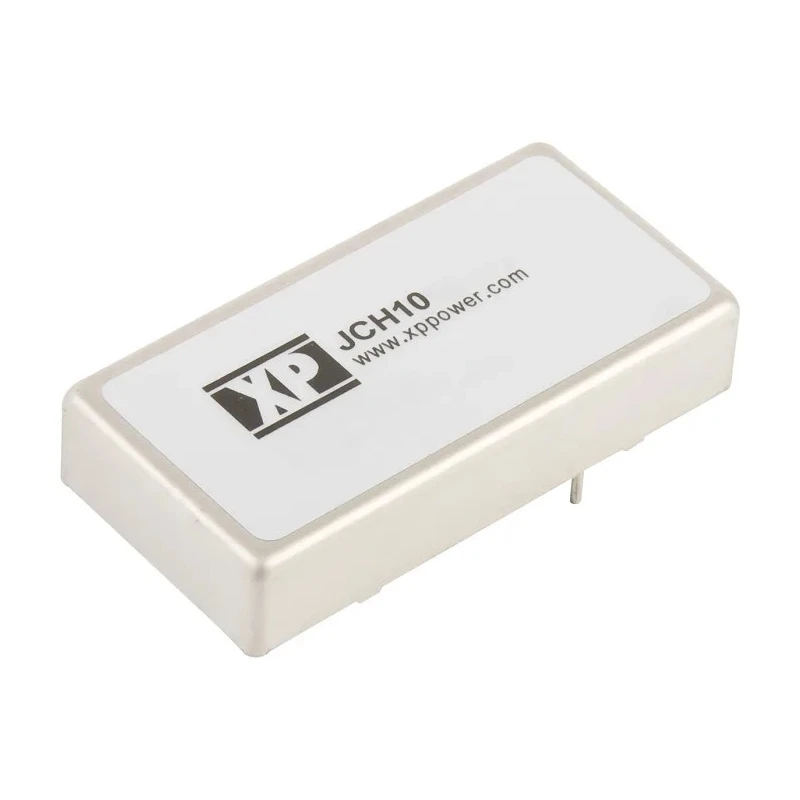

XP Power Isolated DC/DC Converter 12V DC Output 420 mA 36V DC Input 18V Input 10W Efficiency 84% Through Hole JCH1024D12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCH DC/DC Converter, 12V dc/ 420 mA, 36V |
| Brand | XP Power |
| Efficiency | 84% |
| Length | 50.8mm |
| Model | JCH1024D12 |
| Depth | 10.16mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCH |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 2 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 420mA |
| Output Voltage Adjustment Range | ±11.76 V dc, ±12.24 V dc |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- This converter features a compact through-hole DIP package for easy board mounting.
- Offers high efficiency of up to 84%, optimizing power usage.
- Supports operating temperature range from -40°C to 100°C for robust performance.
- Includes 1500 VDC isolation ensuring electrical safety and signal integrity.
- Features 24 pins and dual output capability, allowing versatile applications.
- Meets RoHS standards for environmental compliance and sustainability.
- Compact dimensions with length 50.8mm, width 25.4mm, and depth 10.16mm.
- Has a high MTBF of 1,100,000 hours indicating solid reliability.
Product Description
XP Power JCH1024D12 DC/DC converter is a highly reliable, isolated power supply module delivering regulated 12V DC output with a maximum current of 420 mA and power rating of 10 watts. It supports an input voltage range between 18V and 36V DC, suitable for various industrial power sources.
The product is housed in a compact dual inline package (DIP) with 24 pins, designed for through-hole mounting on circuit boards. This converter offers a 2:1 input voltage ratio and ensures continuous short-circuit protection to safeguard connected circuits during fault events.
Operating efficiently at up to 84% efficiency, the converter supports an operating temperature range spanning from -40°C to 100°C, making it suitable for harsh environmental conditions. It provides 1500 VDC electrical isolation to separate input and output circuits, enhancing safety and noise immunity.
The unit measures 50.8 mm in length, 25.4 mm in width, and 10.16 mm in depth, allowing integration into compact electronic designs. The mean time between failures (MTBF) rating of 1,100,000 hours further demonstrates its durability and suitability for continuous industrial use.
Certified to meet RoHS environmental standards, this converter supports applications across industrial electronics, power supplies, instrumentation, and manufacturing where compact, precise, and reliable DC power conversion is required.
This converter features a compact through-hole DIP package for easy board mounting. Offers high efficiency of up to 84%, optimizing power usage. Supports operating temperature range from -40°C to 100°C for robust performance.
Includes 1500 VDC isolation ensuring electrical safety and signal integrity. Designed with 2:1 input voltage ratio and continuous short-circuit protection. Features 24 pins and dual output capability, allowing versatile applications.
Meets RoHS standards for environmental compliance and sustainability. Compact dimensions with length 50.8mm, width 25.4mm, and depth 10.16mm. Has a high MTBF of 1,100,000 hours indicating solid reliability. Ideal for industrial, electronic, and power management applications.
Explore EnvMart's extensive selection of XP Power DC/DC Converters for industrial and electronic power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 10 watts.
It supports an input voltage range between 18V and 36V DC.
This converter operates with an efficiency of up to 84%.
The dimensions are 50.8 mm in length, 25.4 mm in width, and 10.16 mm in depth.
It provides an isolation voltage of 1500 VDC.
The operating temperature range is from -40°C to 100°C.
This model features two outputs.
It is designed for through-hole mounting.
It meets RoHS standards for environmental compliance.
The MTBF for this converter is rated at 1,100,000 hours.
The input voltage ratio is 2:1.
It can provide an output current of up to 420 mA.
