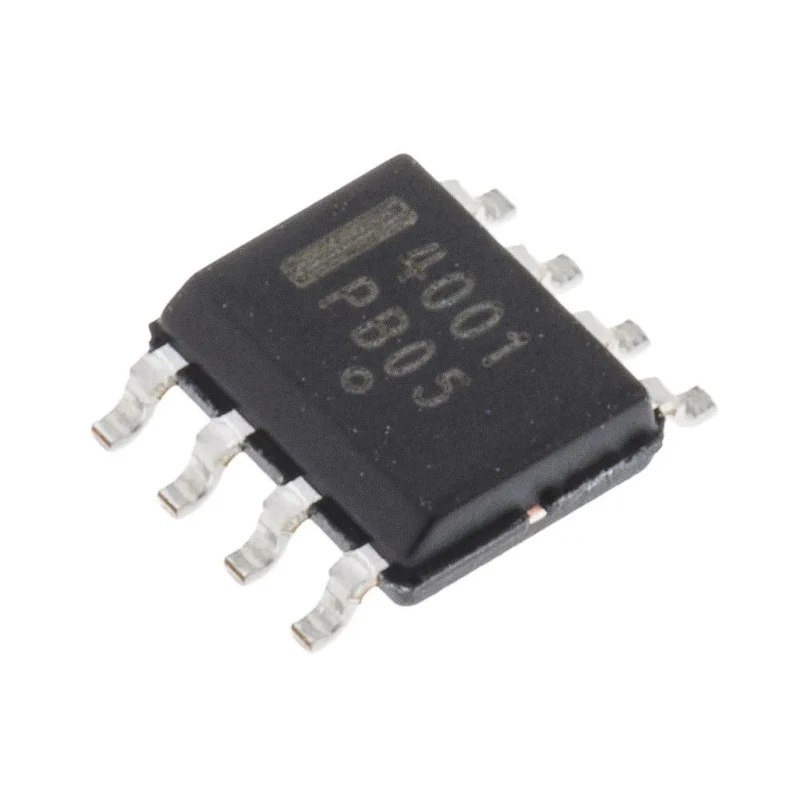

onsemi LED Driver IC 30V, 3.6 V, 500 mA, PWM Dimming, 8-Pin SOIC Package NUD4001DR2G

Free Delivery in India | Lowest Global Shipping Charges

onsemi LED Driver IC 30V, 3.6 V, 500 mA, PWM Dimming, 8-Pin SOIC Package NUD4001DR2G

Name: onsemi LED Driver IC 30V, 3.6 V, 500 mA, PWM Dimming, 8-Pin SOIC Package NUD4001DR2G
Brand: onsemi
SKU: 201377
Price: 0.71 USD
Availability: InStock



Category LED Driver IC Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.75mm
Length	5mm
Model	NUD4001DR2G
Width	4mm
Mount Type	Through Hole
Output Current	500mA
Maximum Operating Temperature	150°C
Package Type	SOIC
Minimum Operating Temperature	-55°C
Maximum Output Power	1.13W
Input Voltage	30, 3.6V
Number of Pins	8
Automotive Standard	AEC-Q101
Dimming Operation	PWM

Key Features

Operates at input voltages of 30 V and 3.6 V for flexible power supply options.
Provides a maximum output power of 1.13 W for efficient LED operation.
Supports PWM dimming operation allowing precise brightness control.
Designed with a through-hole mount type suitable for robust PCB assembly.
Compact dimensions of 5 mm length, 4 mm width, and 1.75 mm height meet space-saving requirements.
Equipped with 8 pins in a SOIC package ensuring compatibility with standard sockets.
Wide operating temperature range from -55°C to 150°C ensures reliability in harsh environments.
Automotive-grade quality certified by AEC-Q101 standard for high performance and durability.

Product Description

onsemi NUD4001DR2G LED Driver IC is a high-quality linear LED driver designed for electronic and industrial applications requiring precise current regulation and efficient power management. With an output current of 500 mA and input voltage capability up to 30 V or 3.6 V, this device supports various LED panel configurations, making it versatile for both commercial and automotive lighting uses.

The device’s PWM dimming feature enables smooth and fine brightness adjustments, ideal for lighting controls in automotive dashboards, architectural lighting, and advanced display systems. Its through-hole mount and 8-pin SOIC package allow easy integration into printed circuit boards, facilitating standard manufacturing processes.

The compact size of 5 mm by 4 mm with a height of only 1.75 mm ensures that it fits well within tight spaces while maintaining robust performance in extreme conditions ranging from -55°C to 150°C. This makes it suitable for automotive and industrial environments that demand reliability and longevity.

Certified to the automotive standard AEC-Q101, the NUD4001DR2G meets stringent quality and safety requirements, confirming its suitability for mission-critical LED lighting applications.

Operates at input voltages of 30 V and 3.6 V for flexible power supply options. Maximum output power of 1.13 W ensures efficient LED performance. Supports PWM dimming for precise light intensity control. Through-hole mount type designed for reliable PCB assembly.

Compact 8-pin SOIC package for easy integration in space-constrained designs. Wide operating temperature range from -55°C to 150°C for harsh environments. Automotive standard AEC-Q101 certified for high durability and quality.

This LED driver IC from onsemi is ideal for use in automotive lighting systems, industrial LED displays, architectural lighting controls, and electronic equipment requiring consistent LED current regulation. Its broad operating temperature and automotive certification also make it well-suited for demanding applications within vehicle electronics and manufacturing environments.
