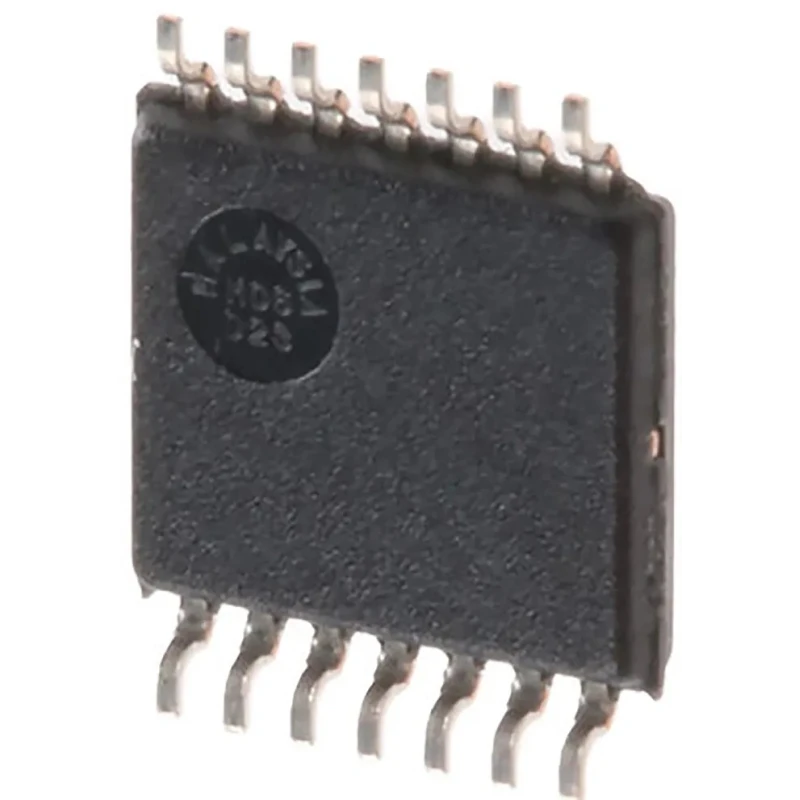

Texas Instruments Operational Amplifier 10 MHz, 4-Channel, 14-Pin TSSOP, 1.8V-5.5V TLV4316IPWR

Texas Instruments TLV4316IPWR is a low voltage CMOS operational amplifier designed for a variety of precision amplification applications. It features a high gain bandwidth product (GBP) of 10 MHz and includes 4 independent amplifier channels housed in a compact 14-pin TSSOP surface mount package. This device supports a wide supply voltage range from 1.8 V up to 5.5 V, allowing flexible deployment in diverse electronic systems.

The operational amplifier offers excellent performance with a low input offset voltage of ±4.5 mV and an input bias current of ±10 pA, ensuring high accuracy for sensitive signal processing. Its high slew rate of 6 V/μs provides fast response for dynamic signals. The output current capability of up to 50 mA is suitable for driving various load types directly.

Designed to operate over a broad temperature range from -40°C to 125°C, this amplifier is suited for industrial, automotive, and commercial applications requiring robust thermal performance. It complies with RoHS environmental standards and meets the automotive AEC-Q100 qualification, making it reliable for automotive electronics.

The TLV4316 series embodies stability and versatility in applications including signal conditioning, instrumentation amplification, data acquisition systems, and embedded sensor interfaces. The 14-pin TSSOP package facilitates easy surface mounting, saving board space in high-density assemblies. Operating parameters such as low supply voltage, high slew rate, and multiple channels make it an ideal choice for multi-channel precision amplification needs in electronics and embedded system designs.

High gain bandwidth product of 10 MHz suitable for precision amplification. Operates with a supply voltage range from 1.8 V to 5.5 V. Low input offset voltage of ±4.5 mV ensuring accuracy. High slew rate of 6 V/μs for fast signal response.

Low input bias current of ±10 pA minimizing input error. Supports output current up to 50 mA for driving loads. Wide operating temperature range from -40°C to 125°C for reliability. Compact 14-pin TSSOP surface mount package for space-saving design.

Complies with RoHS standards and automotive AEC-Q100 qualification guarantees quality and environmental safety. Suitable for industrial, automotive, and commercial electronic instrumentation and control applications. Explore more Texas Instruments Operational Amplifiers and electronic components at EnvMart for your engineering projects and production requirements.
