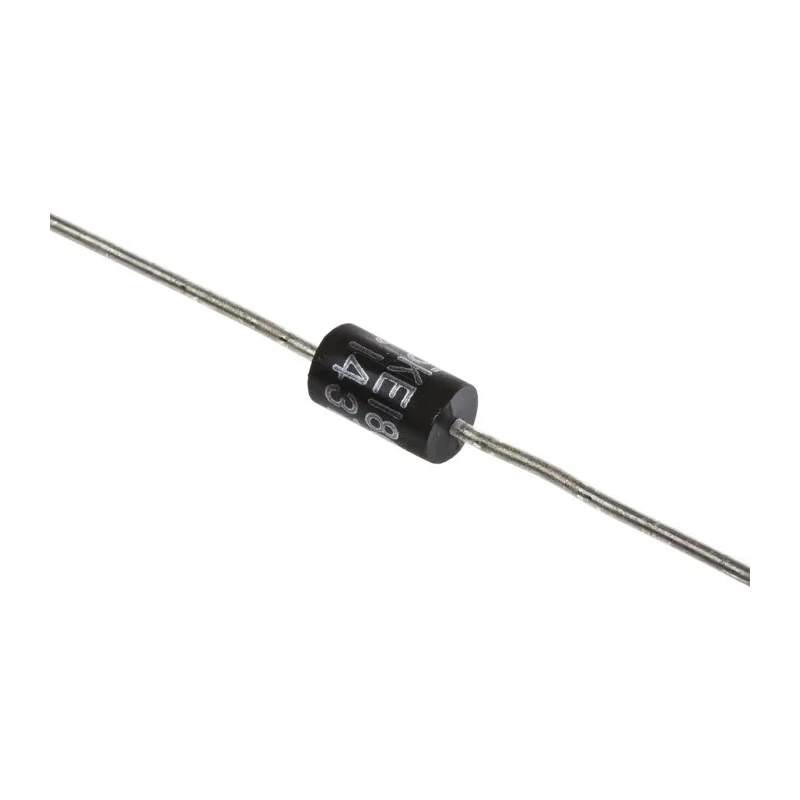

Vishay TRANSZORB TVS Diode Bi-Directional Through Hole 1.5 kW 16.2V 2-Pin 1.5KE18CA-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE18CA-E3/54 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | 1.5KE |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 26.5V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 16.2V |
| Maximum Reverse Stand-off Voltage Vwm | 14.5V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 56.6A |
| Maximum Reverse Leakage Current | 1μA |
| Vishay 1.5KE18CA, Bi-Directional TVS Diode, 1500W, 2-Pin 1.5KEBrand | Vishay |
Key Features
- Single-element diode designed for bi-directional voltage protection.
- Peak pulse power dissipation of 1.5 kW ensures robust surge handling.
- Minimum breakdown voltage of 16.2V and clamping voltage of 26.5V for effective protection.
- Compact axial package suitable for through-hole mounting with 2 pins.
- Operating temperature range from -55°C to 175°C for wide industrial applications.
- Low maximum reverse leakage current of 1μA minimizes power loss.
- Complies with automotive standard AEC-Q101 for high reliability.
- Maximum peak pulse current of 56.6A supports transient transient suppression.
Product Description
Vishay 1.5KE18CA-E3/54 TRANSZORB® TVS Diode is a single-element, bi-directional semiconductor device engineered for transient voltage suppression. This through-hole axial device provides superior surge protection with a peak pulse power dissipation rating of 1.5 kW, making it suitable for protecting sensitive electronic components against voltage spikes.
Its minimum breakdown voltage of 16.2V and clamping voltage of 26.5V ensure effective suppression of transient voltages. The diode is designed with two pins for through-hole mounting, with compact dimensions of 9.5 mm length and 5.3 mm diameter offering ease of integration into PCB layouts.
Operating reliably in temperatures ranging from -55°C to 175°C, the diode is widely applicable across industrial, automotive, and electronic equipment environments. It features a very low maximum reverse leakage current of 1μA, contributing to efficient power usage.
The device conforms to the automotive industry standard AEC-Q101, underscoring its suitability for high-reliability automotive applications requiring stringent quality measures. Single-element diode designed for bi-directional voltage protection.
1.5 kW peak pulse power dissipation for robust surge tolerance. Minimum breakdown voltage of 16.2V and clamping voltage of 26.5V. Compact axial package ideal for through-hole PCB mounting. Wide operating temperature range from -55°C to 175°C.
Low maximum reverse leakage current of 1μA reduces power loss. Automotive standard AEC-Q101 for high reliability. Maximum peak pulse current of 56.6A for transient surge handling. Dimensions: 9.5 mm length and 5.3 mm diameter.
This TVS diode is suitable for use in various industrial settings including electronic component protection, automotive electronics, construction equipment, telecommunications hardware, and power supply units. Its compact size and high power rating support efficient transient voltage suppression without compromising circuit integrity.
Discover more products in the TVS Diode category on EnvMart for all your semiconductor protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay 1.5KE18CA-E3/54 is rated at 1.5 kW, providing robust surge handling capabilities.
The minimum breakdown voltage for this diode is 16.2V, ensuring effective transient voltage suppression.
The clamping voltage of this TVS diode is 26.5V, which helps in protecting sensitive components from voltage spikes.
This model can handle a maximum peak pulse current of 56.6A, supporting effective transient suppression.
The operating temperature range for the Vishay 1.5KE18CA-E3/54 is from -55°C to 175°C, making it suitable for various industrial applications.
This diode has a length of 9.5 mm and a diameter of 5.3 mm, making it compact for integration into PCB layouts.
The Vishay 1.5KE18CA-E3/54 is designed for through-hole mounting with a 2-pin configuration.
Yes, it complies with the automotive standard AEC-Q101, indicating its suitability for high-reliability applications in the automotive sector.
The maximum reverse leakage current for this model is 1μA, which helps minimize power loss during operation.
This diode features a single-element configuration designed for bi-directional voltage protection.
The test current for the Vishay 1.5KE18CA-E3/54 is 1mA, which is used for evaluating its performance characteristics.
This model is suitable for protecting sensitive electronic components in automotive electronics, telecommunications hardware, and power supply units.
