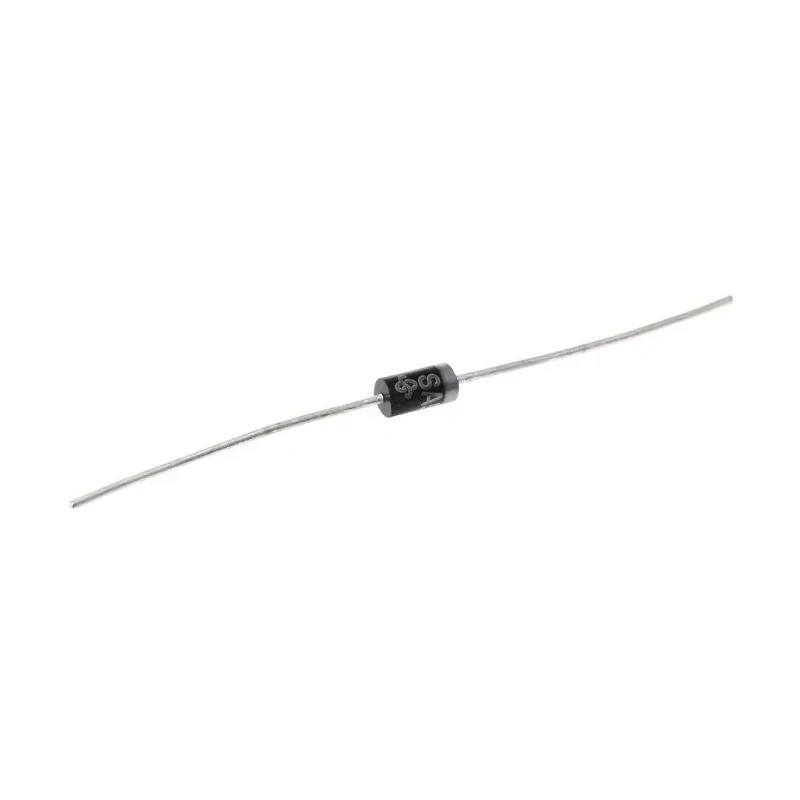

Vishay TRANSZORB TVS Diode 1-Element Uni-Directional 500 W, 2-Pin DO-15 SA5.0A-E3/54

Vishay SA5.0A-E3/54 is a high-performance 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed for transient voltage protection in sensitive electronics. This device offers a robust peak pulse power dissipation capacity of 500 W, packaged in a reliable DO-15 axial through-hole mount suitable for integration in printed circuit boards.

This unidirectional diode is engineered to safeguard circuits against transient voltage spikes by clamping the voltage at 9.2 V, with a maximum reverse stand-off voltage of 5 V, ensuring system stability and component longevity. The device supports a maximum peak pulse current of 54.3 A and is tested at 10 mA for performance consistency, making it ideal for use in automotive and industrial electronics where transient conditions may damage sensitive components.

Rated for operation between -55°C to 175°C, the SA5.0A-E3/54 withstands harsh environmental conditions. Its adherence to the automotive standard AEC-Q101 ensures reliability and durability under vehicle operational stresses.

The diode's compact physical dimensions (length 7.6 mm, diameter 3.3 mm, width and height 3.6 mm) make it a practical choice for space-critical applications. The maximum reverse leakage current of 600 μA minimizes power losses during normal operation.

Applications include circuit protection in automotive electronics, industrial equipment, power supplies, and any application susceptible to voltage transients. The device's single-element design provides straightforward unidirectional transient suppression enhancing circuit reliability.

Its through-hole DO-15 package facilitates mechanical stability and thermal dissipation, making it suitable for both prototyping and high-volume production setups. Offers unidirectional protection with a single diode element.

Supports a peak pulse current of 54.3 A for transient voltage suppression. Has a maximum reverse stand-off voltage of 5 V and clamping voltage of 9.2 V. Operates effectively within a temperature range of -55°C to 175°C. Constructed in DO-15 axial package with compact dimensions suitable for PCB integration.

Includes ESD protection compliant with automotive standard AEC-Q101. Maximum reverse leakage current limited to 600 μA ensuring low leakage during normal operation. Test current rating is 10 mA for reliable performance verification.

Its robust design suits industrial and automotive electronic circuit transient protection. Height of 3.6 mm, length 7.6 mm, diameter 3.3 mm, and width 3.6 mm provide ease of mounting in compact areas. Explore a wide selection of semiconductor TVS Diodes like the Vishay SA5.0A-E3/54 for advanced circuit protection solutions at EnvMart.
