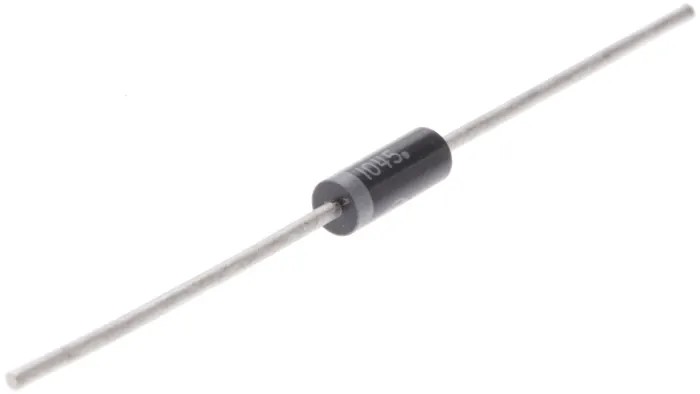

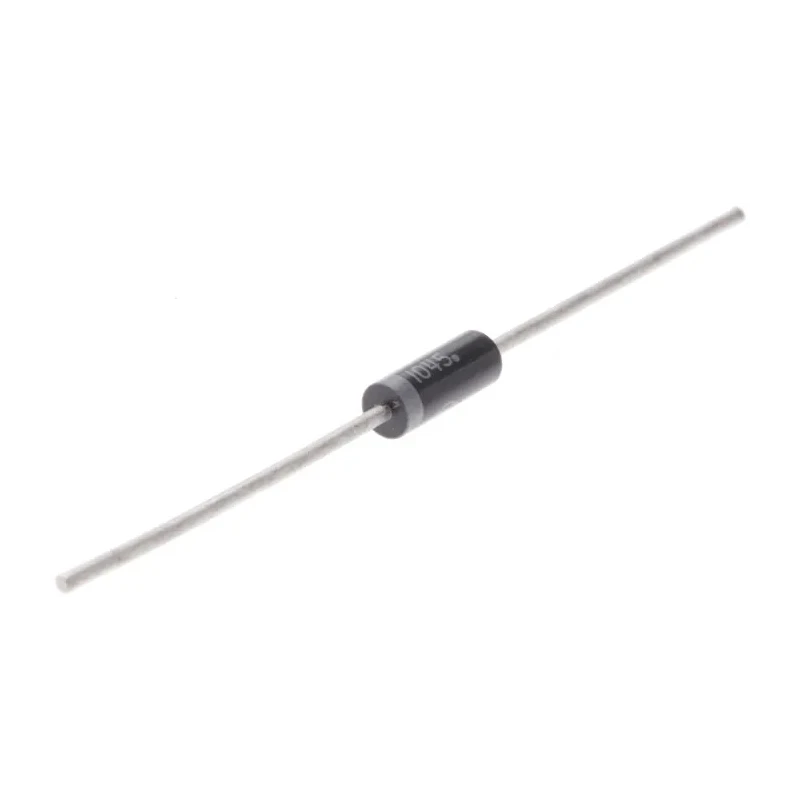

onsemi Zener Diode Single 130 V 5 W 5% Tolerance Through Hole 2-Pin Case 017AA 1N5381BRLG

Free Delivery in India | Lowest Global Shipping Charges

onsemi Zener Diode Single 130 V 5 W 5% Tolerance Through Hole 2-Pin Case 017AA 1N5381BRLG

Name: onsemi Zener Diode Single 130 V 5 W 5% Tolerance Through Hole 2-Pin Case 017AA 1N5381BRLG
Brand: onsemi
SKU: 200532
Price: 0.3 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	3.68mm
Length	8.89mm
Model	1N5381BRLG
Mount Type	Through Hole
Series	1N5381B
Maximum Operating Temperature	200°C
Package Type	Case 017AA
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	5W
Diode Configuration	Single
Test Current It	10mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	130V
Zener Type	Voltage Regulator
Maximum Zener Impedance	190Ω
130V Zener diode,1N5381B 5WBrand	ON Semiconductor

Key Features

Designed for voltage regulation in electronic circuits.
Features a robust Case 017AA package with 2 pins for secure mounting.
Operates reliably within temperature range of -65°C to 200°C.
Maximum power dissipation of 5 watts ensures stable performance.
Maximum reverse leakage current is minimal at 500 nA guaranteeing low power loss.
Test current rating is 10 mA with a maximum Zener impedance of 190 ohms.
Ideal for use in discrete semiconductor applications requiring precise voltage control.
Standard through hole mount type facilitates easy PCB integration.

Product Description

onsemi 1N5381BRLG Zener Diode is a high-quality single-element voltage regulator diode with a nominal Zener voltage of 130 V and power dissipation rated at 5 W. The device is supplied in a Case 017AA through-hole package with 2 pins, enabling reliable mechanical and electrical connections on printed circuit boards.

This diode is specially designed for voltage regulation, providing stable voltage operation within the tolerance of ±5% under nominal test current conditions. It features a maximum reverse leakage current of 500 nanoamperes, minimizing power loss and enhancing efficiency in electronic circuits.

The device operates effectively over a wide temperature range from -65°C to 200°C, suitable for demanding industrial, laboratory, and electronic applications. Its maximum Zener impedance of 190 ohms at test current ensures consistent voltage regulation without significant voltage drops, making it suitable for various discrete semiconductor and power regulation circuits.

The diode's rugged Case 017AA package provides durability and ease of mounting in through-hole assemblies, widely used in power supplies and voltage stabilization modules. With only one element per chip, its simple configuration ensures straightforward implementation in design layouts. Typical use cases include industrial electronics, power management systems, and precise voltage reference sources.

Designed for voltage regulation in electronic circuits. Robust Case 017AA package with 2 pins provides secure mounting. Wide operating temperature range from -65°C to 200°C. Maximum power dissipation of 5 watts assures stable and reliable operation.

Minimal reverse leakage current reduces energy losses. Nominal Zener voltage of 130 V with 5% tolerance for accurate regulation. Test current rating of 10 mA with 190 Ω maximum impedance. Suitable for discrete semiconductor and power regulation applications.

This onsemi diode 1N5381BRLG is an ideal choice for those needing a reliable, efficient voltage regulator diode in electronic components for industrial and commercial use. Explore more semiconductor components and Zener Diodes in EnvMart to enhance your electronic projects and production efficiency.
