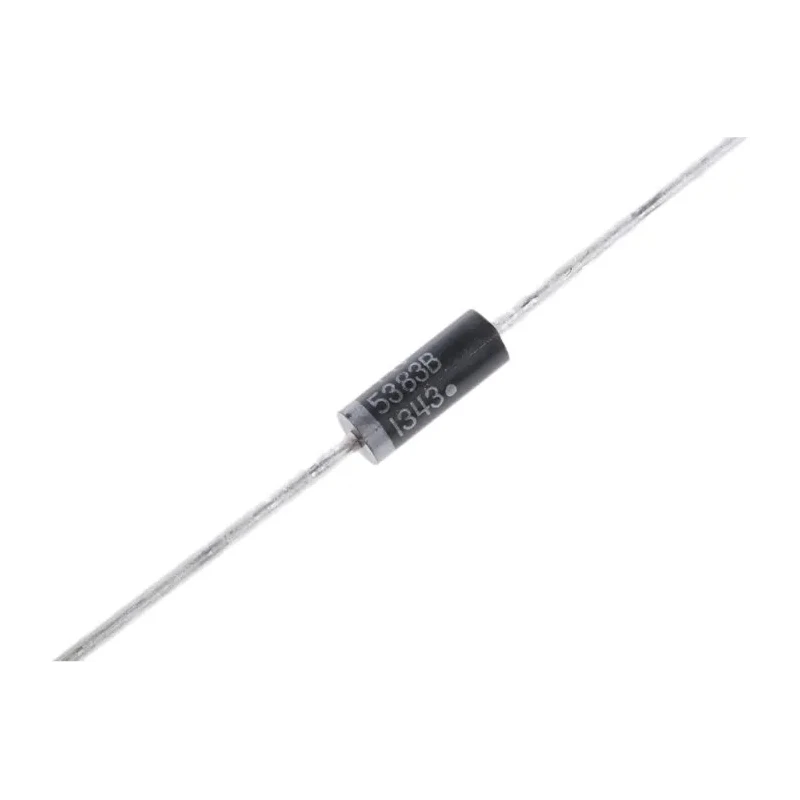

onsemi Zener Diode Single 150 V 5 W 5% Through Hole 2-Pin Case 017AA 1N5383BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5383BRLG |
| Mount Type | Through Hole |
| Series | 1N5383B |
| Maximum Operating Temperature | 200°C |
| Package Type | Case 017AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 8mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 150V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 330Ω |
| onsemi, 150V Zener Diode 5% 5 W Through Hole 2-Pin 017AA-01Brand | ON Semiconductor |
Key Features
- Through hole mount type with 2-pin Case 017AA package.
- Maximum power dissipation is 5 watts suitable for voltage regulation applications.
- Test current is 8 mA ensuring stable voltage performance.
- Maximum reverse leakage current is 500 nA, enabling low leakage operation.
- Operating temperature range from -65°C to 200°C for robust industrial use.
- Zener impedance is maximum 330 ohms for effective voltage regulation.
- Typical use includes discrete semiconductor power regulation and voltage reference circuits.
- Part of the 1N5383B series by onsemi, providing reliable quality and performance.
Product Description
onsemi 1N5383BRLG Zener Diode is a single-element voltage regulator designed for through-hole mounting in a 2-pin Case 017AA package. Rated at 150 volts Zener voltage and 5 watts maximum power dissipation, it enables stable voltage regulation in industrial and electronic circuit applications.
The device operates within a temperature range from -65°C to 200°C, making it suitable for demanding environments including industrial, laboratory, and manufacturing settings. Its low maximum reverse leakage current of 500 nA minimizes power loss during operation.
The 1N5383BRLG has a maximum Zener impedance of 330 ohms tested at 8 mA current, ensuring precise voltage regulation performance. Physical dimensions are compact with a length of 8.89 mm and height of 3.68 mm, facilitating efficient printed circuit board (PCB) mounting.
This diode belongs to the robust 1N5383B series from onsemi, known for high quality and tightly controlled limits. It is ideal for power supply stabilization, voltage reference in power regulation modules, and other electronic semiconductor applications where a stable voltage source is critical.
Through hole mount and 2-pin Case 017AA package. Rated power dissipation of 5 W. Nominal Zener voltage of 150 V with 5% tolerance. Operating temperature from -65°C to 200°C. Maximum reverse leakage current 500 nA. Maximum Zener impedance 330 Ω at 8 mA test current.
Applicable in industrial, laboratory, manufacturing, and electronics use cases. Part of onsemi 1N5383B high-quality diode series. Explore more on Zener Diodes and related semiconductor components on EnvMart to find comprehensive solutions for your electronic designs and power regulation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum power dissipation of this Zener diode is 5 watts.
The nominal Zener voltage for the 1N5383BRLG is 150 volts.
This model operates within a temperature range from -65°C to 200°C.
The maximum reverse leakage current is 500 nA, which helps minimize power loss during operation.
The dimensions of this diode are 8.89 mm in length and 3.68 mm in height.
It uses a through-hole mounting type in a 2-pin Case 017AA package.
The maximum Zener impedance is 330 ohms at a test current of 8 mA.
This Zener diode is suitable for voltage regulation applications, including discrete semiconductor power regulation and voltage reference circuits.
This diode has one element per chip, configured as a single diode.
The test current for this model is 8 mA, which is used for measuring Zener impedance.
It belongs to the 1N5383B series by onsemi, known for its reliable quality and performance.
The country of origin for this Zener diode is India.
