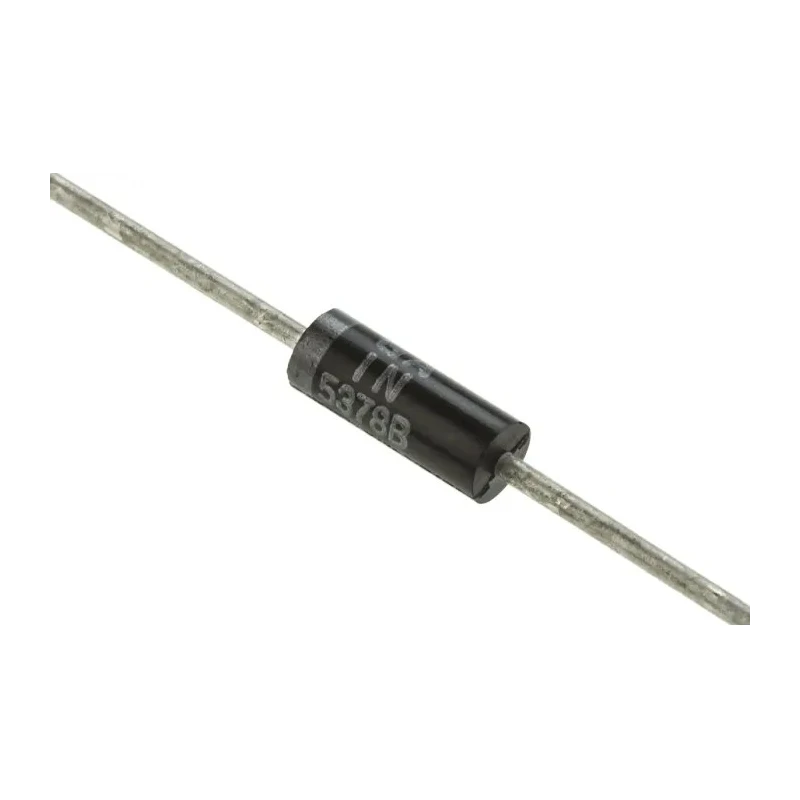

onsemi Zener Diode 100 V, 5 W Power Dissipation, Single Diode, Through Hole DO-15 Package 1N5378BRLG

onsemi 1N5378BRLG Zener Diode is a high-quality discrete semiconductor designed for voltage regulation with a nominal zener voltage of 100 V and a maximum power dissipation rating of 5 W. Packaged in a robust DO-15 through-hole format, this single diode component is engineered for industrial and electronic applications requiring stable voltage control.

This diode features a tight zener voltage tolerance of ±5% and operates effectively at test currents of 12 mA. It maintains very low maximum reverse leakage current at 500 nA ensuring minimal power loss and efficient circuit protection. The maximum zener impedance of 800 Ω supports consistent voltage stabilization.

Its operational temperature range from -65°C to 200°C enables durable performance in demanding environments including industrial machinery, power supplies, and other electronic equipment. The compact physical dimensions of 8.89 mm in length and 3.68 mm in height allow for convenient mounting on printed circuit boards using through-hole techniques.

While it carries no explicit standards or automotive certifications, the onsemi 1N5378BRLG series is recognized for reliability in semiconductor discrete applications. This diode is an ideal choice for designers requiring a robust and precise voltage regulator for power and signal conditioning circuits.

This component is a single Zener diode designed for voltage regulation. It supports up to 5 Watts maximum power dissipation for dependable performance. The DO-15 package provides ease of installation with through-hole mounting.

The device operates within a wide temperature band from -65°C to 200°C suitable for industrial use. Its nominal zener voltage is 100 V with a ±5% tolerance for accurate voltage regulation. Low reverse leakage current of 500 nA reduces unwanted power loss.

Test current is set at 12 mA optimizing performance at typical operating conditions. Maximum zener impedance of 800 Ω ensures voltage stabilization is maintained. Explore the range of reliable discrete semiconductor components including Zener Diodes on EnvMart for various industrial, electronic and power management use cases.
