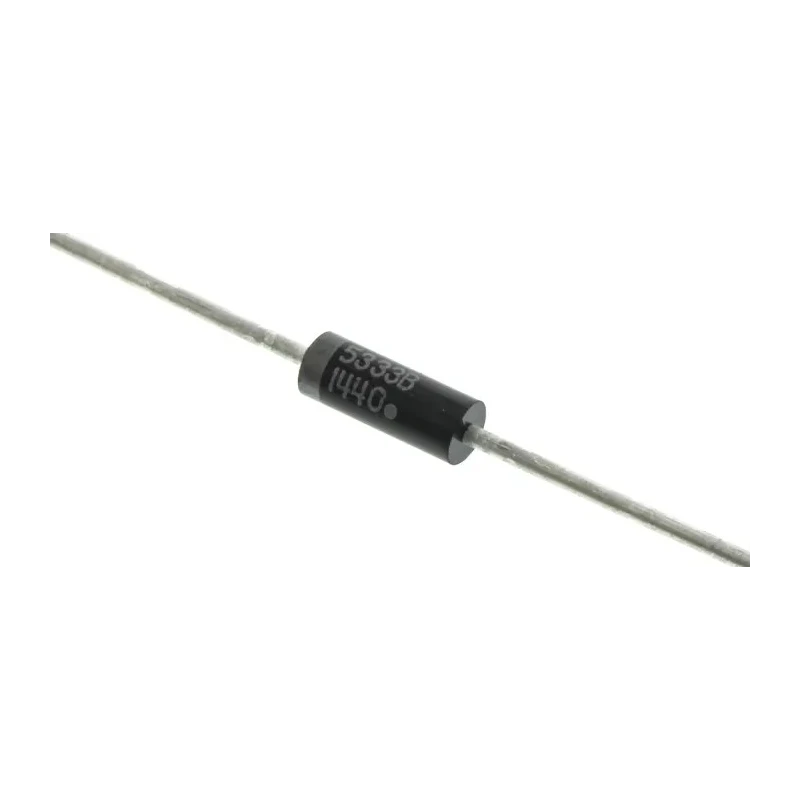

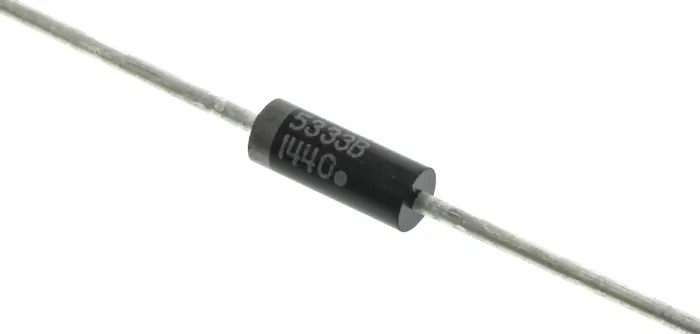

onsemi Zener Diode 3.3V 5W Single Through Hole 2-Pin DO-15 1N5333BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5333BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 380mA |
| Maximum Reverse Leakage Current | 300μA |
| Nominal Zener Voltage Vz | 3.3V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 3Ω |
| onsemi 1, 3.3 V Zener Diode, Single 5 W 5 % Through Hole 2-Pin DO-15Brand | onsemi |
| Diode, Zener, 1N5333BBrand | ON Semiconductor |
| onsemi, 3.3V Zener Diode 5% 5 W Through Hole 2-Pin Surmetic 40Brand | ON Semiconductor |
Key Features
- This 5 Watt zener diode has a nominal zener voltage of 3.3V with ±5% tolerance.
- It features a DO-15 molded package suitable for through hole mounting.
- The device operates within a temperature range of -65°C to 200°C.
- Maximum power dissipation is 5 Watts with a test current of 380mA.
- The diode offers a maximum zener impedance of 3 ohms and a maximum reverse leakage current of 300μA.
- Its axial leaded design includes corrosion-resistant surfaces and readily solderable leads.
- The package dimensions include a height of 3.68mm and a length of 8.89mm.
- It is part of the 1N53 series and does not conform to automotive standards.
Product Description
onsemi 1N5333BRLG Zener Diode is a high-quality single element 3.3 Volt voltage regulator diode designed for industrial and electronic circuit applications. It is housed in a robust DO-15 axial leaded through-hole package that provides reliable performance and protection in common environmental conditions.
This diode supports a maximum power dissipation of 5 Watts and maintains precise voltage regulation with a ±5% tolerance on its nominal 3.3V zener voltage. With a test current of 380mA, it ensures stable operation while its maximum zener impedance of 3 ohms contributes to consistent voltage regulation under varying loads.
Its operating temperature range from -65°C to 200°C allows it to be used in demanding industrial environments. The maximum reverse leakage current is limited to 300μA, minimizing power loss and improving efficiency.
The axial leaded design offers corrosion-resistant surfaces with readily solderable leads for ease of assembly in industrial manufacturing processes. The dimensions of the package are 3.68mm in height and 8.89mm in length, suitable for standard through-hole mounting and automated insertion.
This device belongs to the 1N53 Surmetic™ 40 series known for superior silicon-oxide passivated junctions ensuring dependable voltage regulation. The diode is ideal for industrial electronics, power management circuits, and voltage reference applications requiring stable and efficient voltage regulation.
Package: DO-15 through hole; Pin Count: 2. Voltage Rating: 3.3 V nominal with ±5% tolerance. Power Rating: 5 Watts maximum dissipated power.
The onsemi 1N5333BRLG is suited for use in manufacturing, industrial automation, and electronic circuit protection, making it a reliable choice for robust, long-lasting voltage regulation needs. It supports a range of operating conditions and offers excellent durability in harsh environments.
Explore more high-quality semiconductor components within the onsemi brand at EnvMart for your industrial and electronics projects, ensuring performance and reliability.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal zener voltage of this diode is 3.3V with a tolerance of ±5%.
The maximum power dissipation for this model is 5 Watts.
It operates within a temperature range of -65°C to 200°C.
The maximum reverse leakage current is limited to 300μA.
The maximum zener impedance is 3 ohms, which contributes to consistent voltage regulation under varying loads.
The DO-15 package has a height of 3.68mm and a length of 8.89mm.
This model supports through-hole mounting.
The test current for this diode is 380mA.
It belongs to the 1N53 series.
The diode configuration is single.
This model does not conform to automotive standards.
The country of origin for this diode is India.
