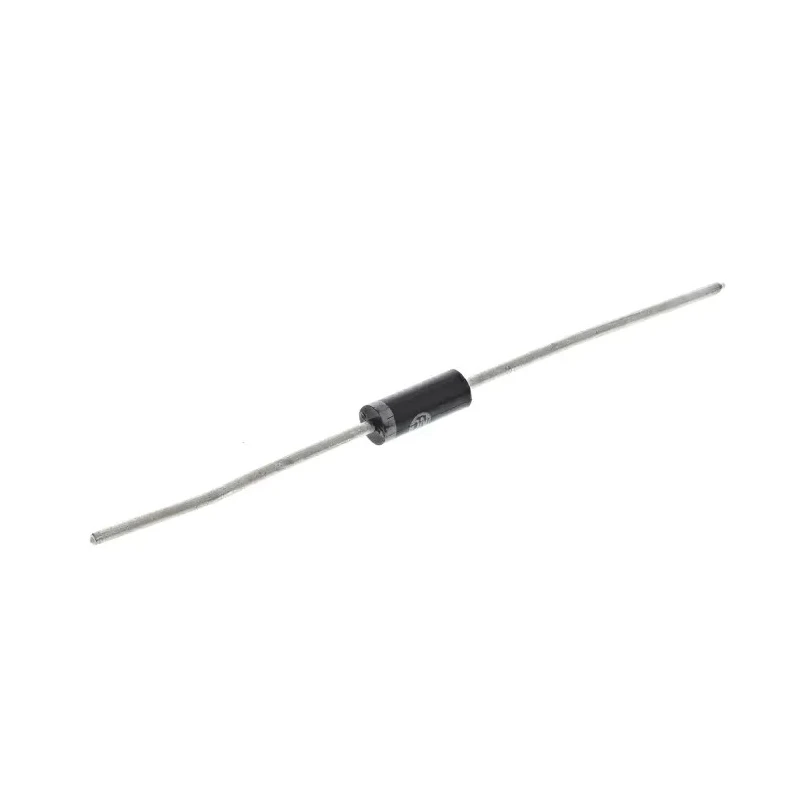

onsemi Zener Diode Single 5 W 5 % Through Hole 2-Pin DO-15 Nominal 91 V 1N5377BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5377BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 15mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 91V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 75Ω |
Key Features
- The diode operates with a test current of 15 mA and a maximum Zener impedance of 75 ohms.
- It has a maximum reverse leakage current of 500 nA ensuring minimal leakage in reverse bias conditions.
- Engineered for use in through-hole mounting with 2 pins in a compact DO-15 package.
- The device maintains performance over a temperature range from -65°C to 200°C.
- It is suited for industrial, electronics, and power regulation applications requiring tight voltage regulation.
- The diode features a Zener voltage tolerance of ±5% for precision control.
- Onsemi’s 1N53 series offers reliable voltage regulation with improved operating characteristics.
Product Description
onsemi 1N5377BRLG Zener Diode is a single-element discrete semiconductor component intended for voltage regulation and protection in electronic circuits. It is designed to maintain a stable voltage of nominal 91 V with a maximum power dissipation rating of 5 W, suitable for both industrial and laboratory applications.
The device uses a DO-15 through-hole package with 2 pins, making it compatible with standard PCB mounting techniques. This Zener diode operates optimally at a test current of 15 mA, ensuring low power consumption while maintaining steady voltage regulation.
With a maximum Zener impedance of 75 Ω and a low reverse leakage current of 500 nA, the diode ensures high efficiency and reliability in electronic circuits. It is engineered to function across a wide temperature range from -65°C to 200°C, making it robust for harsh operating conditions.
This diode is part of the 1N53 series by onsemi, known for tight limits and improved operating characteristics, providing stable performance and durability. It is ideal for use in power supply circuits, voltage reference circuits, and surge protection systems in electronics manufacturing and maintenance.
The diode operates with a test current of 15 mA and a maximum Zener impedance of 75 ohms. Maximum reverse leakage current is limited to 500 nA. Compact DO-15 package for through-hole mounting with 2 pins. Wide operating temperature range from -65°C to 200°C.
Nominal Zener voltage is 91 V with ±5% tolerance. Designed for 5 W power dissipation capacity. Single element chip configuration ensures precise voltage regulation.
This onsemi Zener diode is suitable for diverse applications including industrial electronics, power regulation, manufacturing, and electrical protection systems. Browse the Zener Diodes category at EnvMart for additional voltage regulation components and electronic parts to suit your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 91 V, with a tolerance of ±5%.
This model has a maximum power dissipation rating of 5 W.
The diode operates over a wide temperature range from -65°C to 200°C.
The maximum reverse leakage current for the 1N5377BRLG is limited to 500 nA.
The maximum Zener impedance is 75 ohms.
This diode features a 2-pin configuration for through-hole mounting.
The diode operates optimally at a test current of 15 mA.
It comes in a DO-15 package type, suitable for through-hole mounting.
The diode has a single-element chip configuration, designed for voltage regulation.
This model is part of the 1N53 series by onsemi.
The country of origin for this diode is India.
This Zener diode is suitable for industrial electronics, power regulation, and electrical protection systems.
