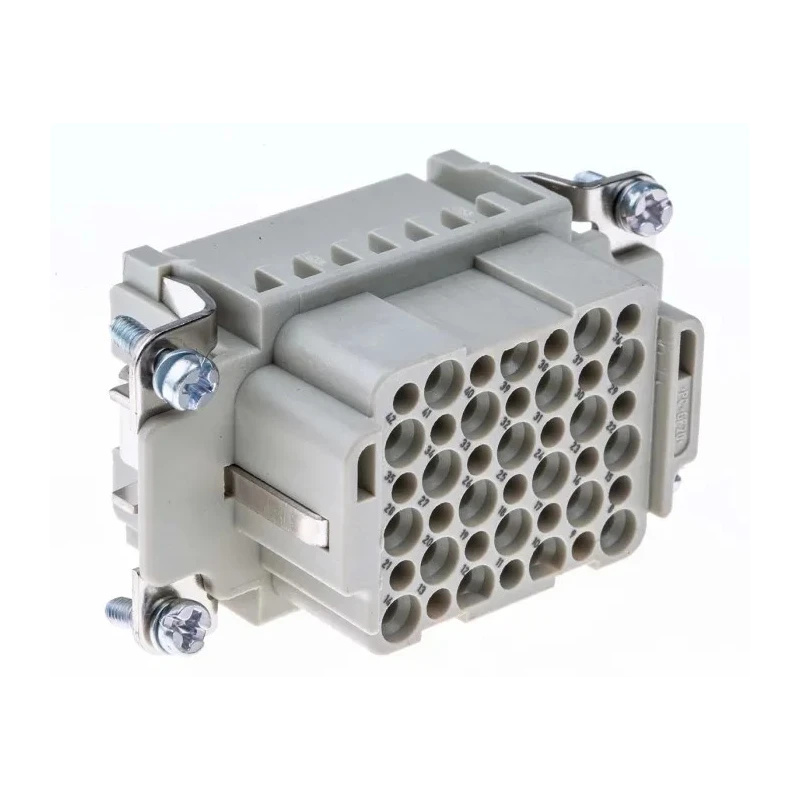

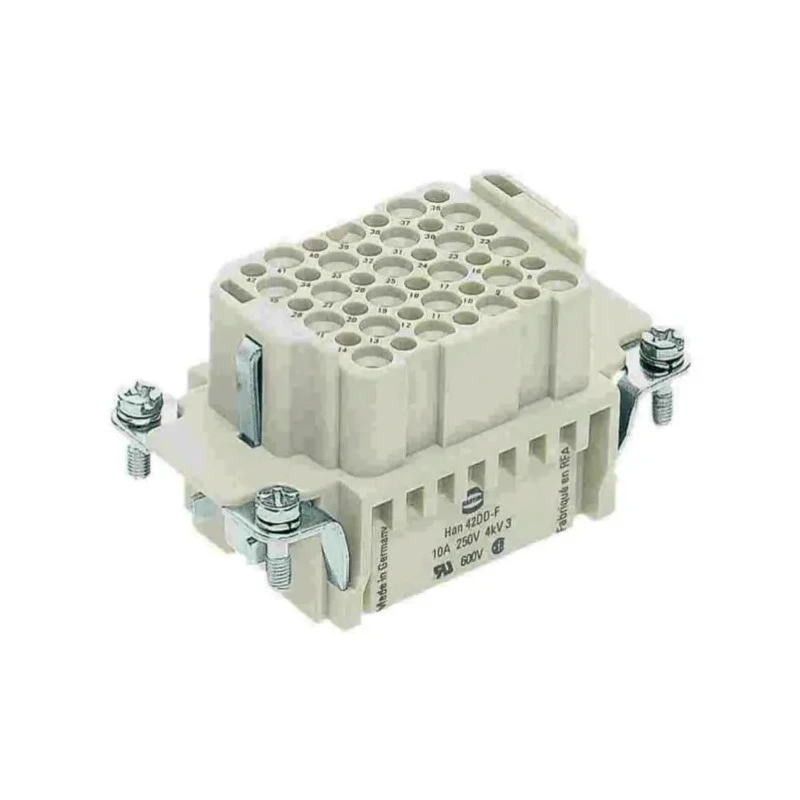

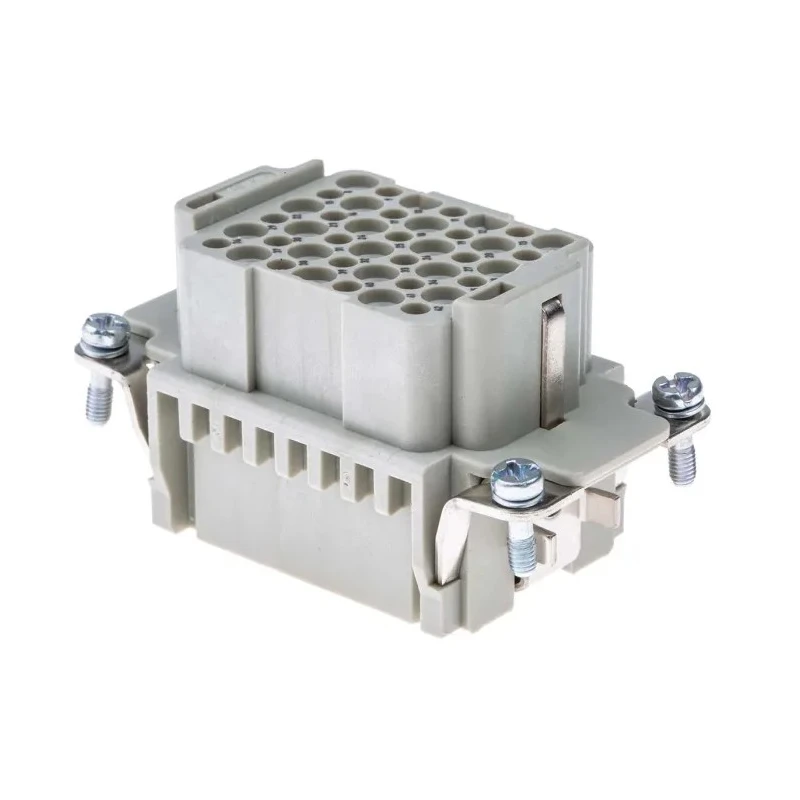

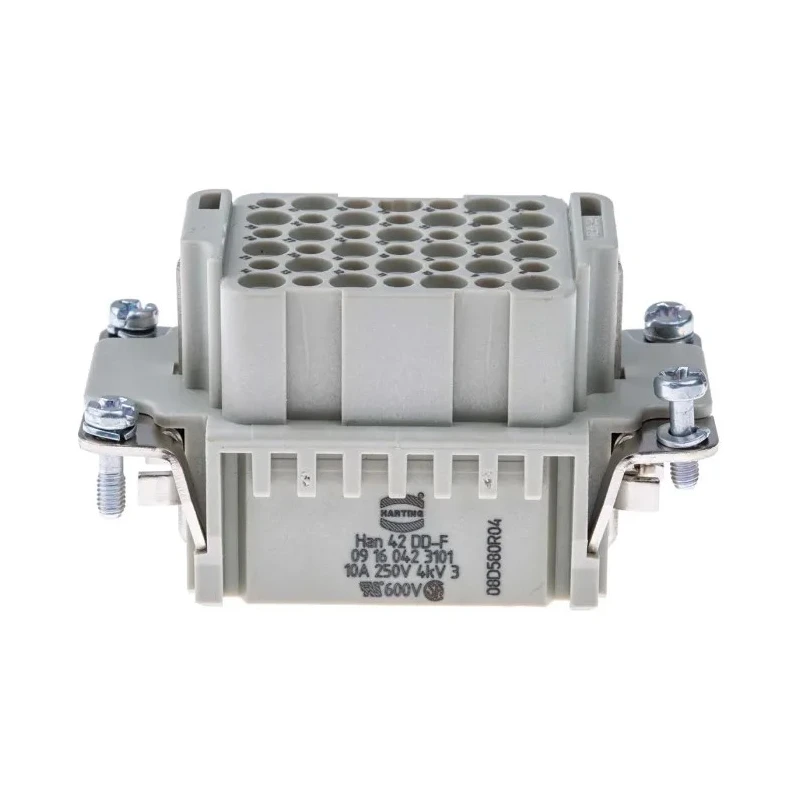

HARTING Heavy Duty Power Connector Insert 10A 250V HAN DD Series Female 42 Contacts 09160423101
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Cable |
| Current Rating | 10A |
| Series | HAN DD |
| Sub Type | Connector Insert |
| Number of Rows | 6 |
| For Use With | Heavy Duty Power Connector |
| Standards/Approvals | IEC 60664-1 |
| Pole Format | 43 |
| Number of Contacts | 42 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Rated for 10A continuous current and 250V operational voltage.

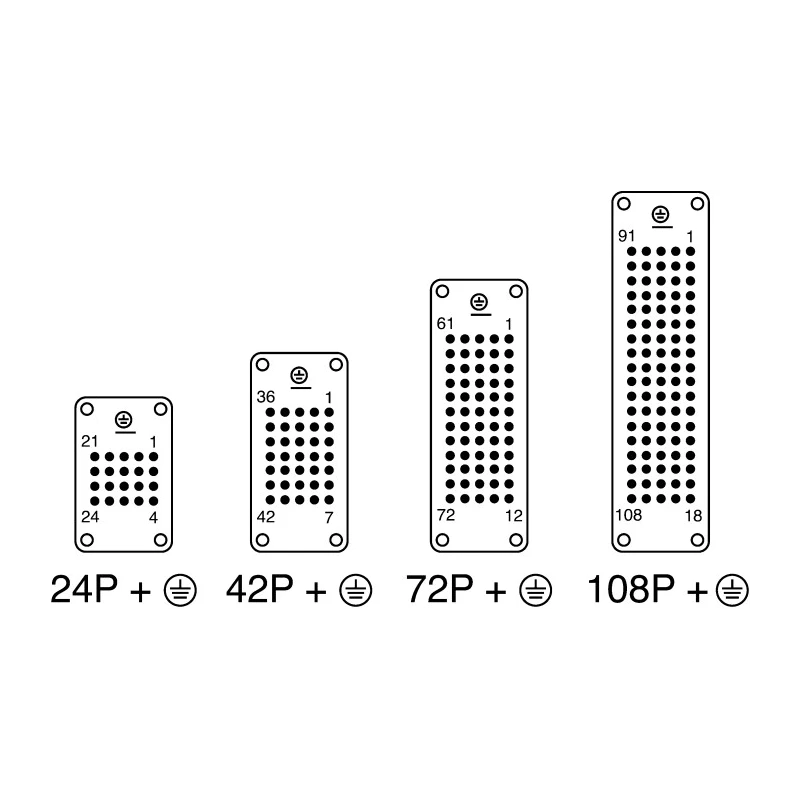

- Features 42 contacts across six rows for mixed power and signal use.
- Compatible with conductor sizes from 0.14 mm² to 2.5 mm².
- Cable mount type with a straight orientation for easy assembly.
- Complies with IEC 60664-1 insulation standards for safety.
- Designed as a female insert to mate with heavy-duty connector housings.
- Ideal for industrial automation, robotics, and factory distribution systems.
- Manufactured in Germany ensuring high quality and reliability.
Product Description
HARTING 09160423101 Heavy Duty Power Connector Insert is designed for demanding industrial applications requiring reliable mixed power and signal connectivity. This female connector insert supports a continuous current of 10A and an operating voltage of 250V, making it ideal for machine tools, robotics control cabinets, and factory automation.
Featuring a compact layout with 42 contacts arranged in six rows, it enables dense and efficient signal and power routing within heavy-duty connector housings. The straight cable mount type allows for direct termination of conductors ranging from 0.14 mm² for fine wiring to 2.5 mm² for power cables, supporting robust cable connections.
This product complies with IEC 60664-1 insulation safety standards, providing secure operation in industrial environments. The female connector insert is specifically designed to mate with corresponding male connectors to ensure reliable contact engagement and prevent incorrect connections through polarization.
Typical industrial use cases include power and signal termination in machine tools, robotics control systems, conveyor connections, and electrical distribution panels. Its robust construction and German manufacturing origin underlie its suitability for harsh and repetitive use in electrical systems within manufacturing, automation, and water treatment sectors.
Rated for 10A current and 250V voltage with IEC 60664-1 compliance. 42 contacts arranged in 6 rows for mixed signal and power lines. Cable mount type with straight orientation for ease of assembly. Accepts conductor sizes from 0.14 mm² to 2.5 mm².
Female insert design for use within modular heavy-duty connector housings. Suitable for industrial automation, factory power distribution, and robotics applications. Manufactured in Germany ensuring high quality and industry standards.
Explore more heavy duty connector solutions from HARTING at EnvMart for your industrial power and signal requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert is rated for a continuous current of 10A and an operational voltage of 250V.
It features 42 contacts arranged in six rows, allowing for mixed power and signal use.
This connector insert accepts conductor sizes ranging from 0.14 mm² to 2.5 mm².
It is a cable mount type with a straight orientation, facilitating easy assembly.
It complies with IEC 60664-1 insulation safety standards, ensuring secure operation in industrial environments.
It is ideal for industrial automation, robotics, and factory distribution systems, providing reliable mixed power and signal connectivity.
Yes, this model is a female connector insert, designed to mate with corresponding male connectors.
This connector insert is manufactured in Germany, ensuring high quality and reliability.
The pole format of this connector insert is 43.
Yes, it is suitable for harsh and repetitive use in electrical systems within manufacturing, automation, and water treatment sectors.
It is designed for use within modular heavy-duty connector housings.
The contacts are arranged in a compact layout with six rows, enabling efficient signal and power routing.
