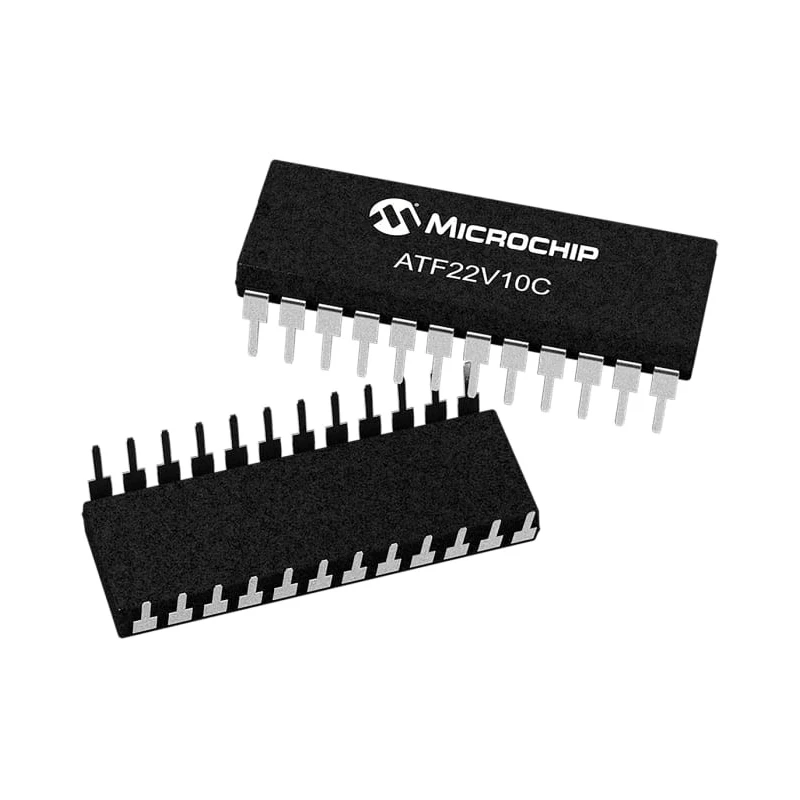

Microchip Simple Programmable Logic Device 350 Gates, 10 Macro Cells, 10 I/O, 166 MHz In System ATF22V10C-7PX
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 32.13mm |
| Model | ATF22V10C-7PX |
| Mount Type | Through Hole |
| Series | ATF22V10CQ |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 24 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time | 7.5ns |
| Number of Gates | 350 |
| Number of Macro Cells | 10 |
| Number of User I/Os | 10 |
| Maximum Internal Frequency | 166MHz |
Key Features
- High-performance device suitable for complex programmable logic applications.
- Features in-system programmability with re-programmability support.
- Operates with supply voltage range 4.5V to 5V ensuring low power consumption.
- Through hole PDIP package with 24 pins for easy mounting.
- Wide operating temperature from -40°C to 85°C ensures reliability in various environments.
- Maximum propagation delay time is 7.5ns providing fast operation.
- Compliant with RoHS standards ensuring environmental safety.
- Manufactured in Taiwan, Province Of China, guaranteeing quality standards.
Product Description
Microchip ATF22V10C-7PX is a high-performance simple programmable logic device (SPLD) that offers a blend of low power usage and high reliability, engineered for complex logic functions in electronic circuit designs. Featuring 350 gates and 10 macro cells, it supports up to 10 user input/output pins. The device is capable of operating at a maximum internal frequency of 166 MHz, making it suitable for high-speed applications.
This SPLD supports in-system programmability with full re-programmability, enabling flexible device configuration after deployment. Packaged in a through-hole PDIP with 24 pins, it is designed for straightforward mounting onto PCBs.
The device operates within a supply voltage range of 4.5V to 5V and supports a wide temperature range from -40°C to 85°C, ensuring functionality in harsh industrial and commercial environments. Its maximum propagation delay time is 7.5 ns, which facilitates fast logical operations. It fully complies with RoHS standards, ensuring environmental compatibility.
Physical dimensions are compact, with a length of 32.13 mm and height of 4.95 mm, optimizing board space usage in embedded system designs.
The Microchip ATF22V10C-7PX is sourced from Taiwan, Province Of China, known for high manufacturing standards. This device is ideal for a wide range of industrial, laboratory, and commercial electronics applications requiring programmable logic solutions.
High-performance simple programmable logic device with 350 gates and 10 macro cells. Supports in-system programmability with re-programmability support. Operates on 4.5V to 5V supply voltage with low power consumption. Through hole PDIP package type with 24 pins for easy integration.
Wide operating temperature range from -40°C to 85°C. Maximum propagation delay time of 7.5 ns. RoHS compliant for environmental safety. Compact dimensions: 32.13 mm length, 4.95 mm height. Manufactured in Taiwan, Province Of China.
For engineers and designers requiring reliable and flexible Programmable Logic ICs, the Microchip ATF22V10C-7PX provides an efficient solution. Browse our Electronics & Electricals category for more semiconductor components from trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum internal frequency of the ATF22V10C-7PX is 166 MHz, making it suitable for high-speed applications.
This model operates within a supply voltage range of 4.5V to 5V, ensuring low power consumption.
It features 350 gates and 10 macro cells, allowing for complex programmable logic applications.
The maximum propagation delay time is 7.5 ns, facilitating fast logical operations.
It supports a wide operating temperature range from -40°C to 85°C, ensuring reliability in various environments.
The device is packaged in a through-hole PDIP with 24 pins, designed for easy mounting onto PCBs.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
It supports up to 10 user input/output pins, providing flexibility in circuit designs.
The dimensions are 4.95 mm in height and 32.13 mm in length, optimizing board space usage.
This device is manufactured in Taiwan, Province Of China, known for high manufacturing standards.
Key features include in-system programmability, full re-programmability, and low power usage, making it suitable for complex logic functions.
It belongs to the ATF22V10CQ series, which encompasses various simple programmable logic devices.
