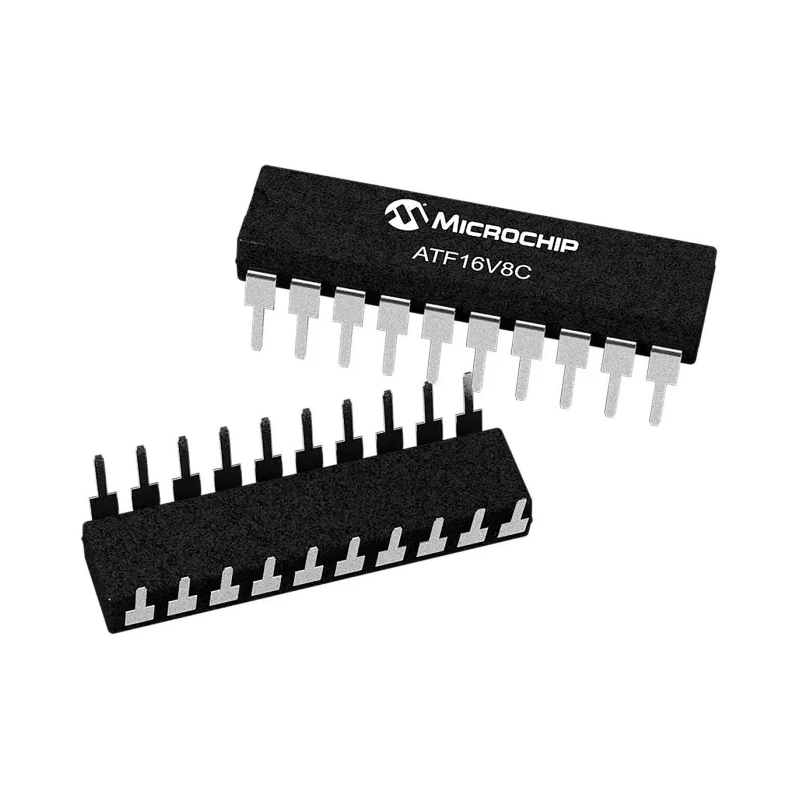

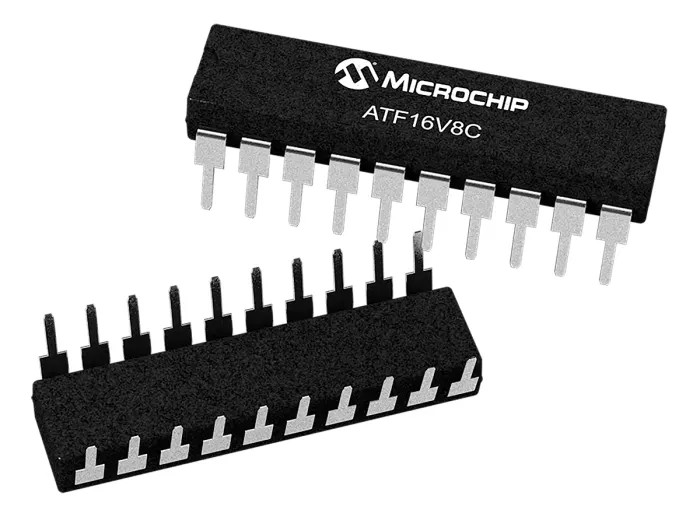

Microchip Simple Programmable Logic Device ATF16V8C 150 Gates, 8 Macro Cells, 8 I/O, 125 MHz In System Programmability
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 26.92mm |
| Model | ATF16V8C |
| Mount Type | Through Hole |
| Series | ATF16V8C |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time | 7.5ns |
| Number of Gates | 150 |
| Number of Macro Cells | 8 |
| Number of User I/Os | 8 |
| Maximum Internal Frequency | 125MHz |
Key Features
- The device supports re-programmability and in-system programming for flexible applications.
- It features a 20-pin PDIP through-hole package suitable for easy prototyping and integration.
- Operates within a supply voltage range of 4.5V to 5V, ideal for standard digital circuits.
- Designed with a maximum propagation delay time of 7.5 ns, ensuring fast signal processing.
- Functions reliably across a wide temperature range from -40°C to 85°C.
- Complies with RoHS standards ensuring environmentally friendly manufacturing.
- The compact dimensions include 26.92 mm length and 4.95 mm height, enabling space-efficient layouts.
- Automotive grade compliance is not supported for this model.
Product Description
Microchip ATF16V8C Simple Programmable Logic Device is a high-performance programmable logic IC designed for a variety of electronic applications requiring programmable gate arrays. Featuring 150 gates, 8 macro cells, and 8 user input/output pins, it enables flexible logic configurations with in-system programmability and re-programmability support.
This device comes in a 20-pin PDIP through-hole package, making it suitable for manual assembly and prototyping. With an operating voltage range of 4.5V to 5V, it fits well within standard digital logic circuits, offering efficient and reliable operation.
It supports a maximum internal frequency of 125 MHz and a maximum propagation delay time of just 7.5 nanoseconds, making it appropriate for speed-critical logic designs. The device can operate reliably in temperatures ranging from -40°C to 85°C, ensuring stability in diverse industrial environments.
The compact form factor with a length of 26.92 mm and a height of 4.95 mm allows integration where board space is constrained. However, it does not comply with automotive standards.
Compliant with RoHS directives, the device supports environmentally conscious manufacturing and application. Suitable for industrial, telecommunications, consumer electronics, and embedded systems where programmable logic devices are required for custom digital logic implementation.
The device features 150 programmable gates and 8 macro cells for complex logic functions. In-system programmability and re-programmability enable flexible and iterative development. 20-pin PDIP package facilitates through-hole mounting and prototyping.
Wide operating voltage range ensures compatibility with common digital systems. Fast signal propagation with 7.5 ns maximum delay supports high-speed logic circuits. Operating temperature range from -40°C to 85°C extends usability across environments.
RoHS compliant for eco-friendly design and production. Explore more Programmable Logic ICs and Microchip products at EnvMart for industrial and electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum internal frequency of the ATF16V8C is 125 MHz, suitable for speed-critical applications.
It operates within a supply voltage range of 4.5V to 5V, making it compatible with standard digital circuits.
This model features 150 gates and 8 macro cells, allowing for flexible logic configurations.
The maximum propagation delay time for the ATF16V8C is 7.5 ns, ensuring fast signal processing.
The device has a length of 26.92 mm and a height of 4.95 mm, making it compact for space-efficient layouts.
It comes in a 20-pin PDIP (Plastic Dual In-line Package) through-hole package, suitable for prototyping and manual assembly.
The ATF16V8C operates reliably in temperatures ranging from -40°C to 85°C, suitable for diverse industrial environments.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing.
This model features 8 user input/output pins, allowing for various configurations in applications.
It is suitable for industrial, telecommunications, consumer electronics, and embedded systems that require programmable logic devices.
Yes, it supports in-system programmability and re-programmability for flexible applications.
No, the ATF16V8C does not support automotive grade compliance.
