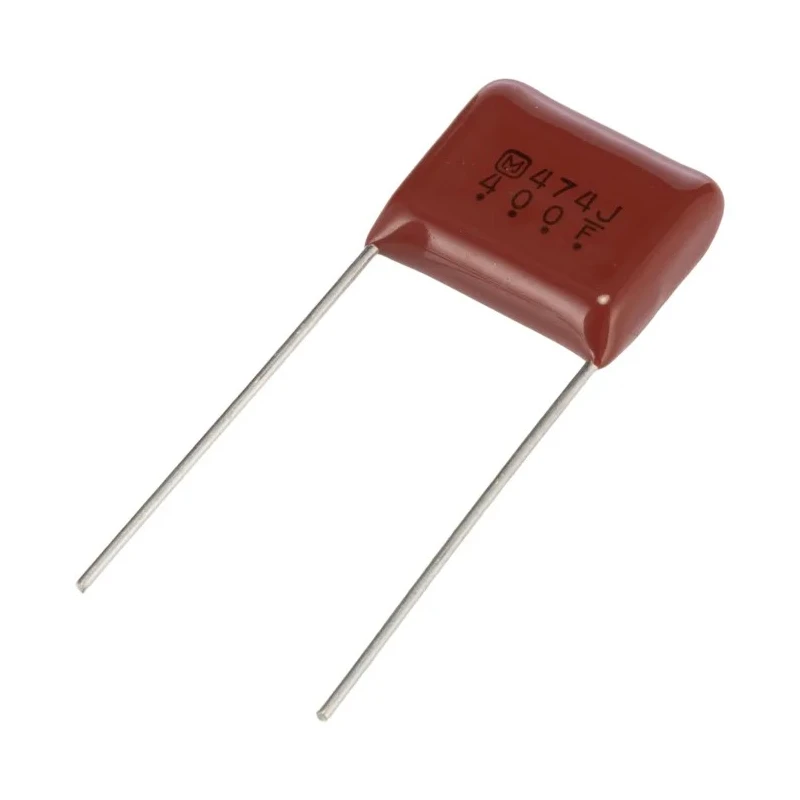

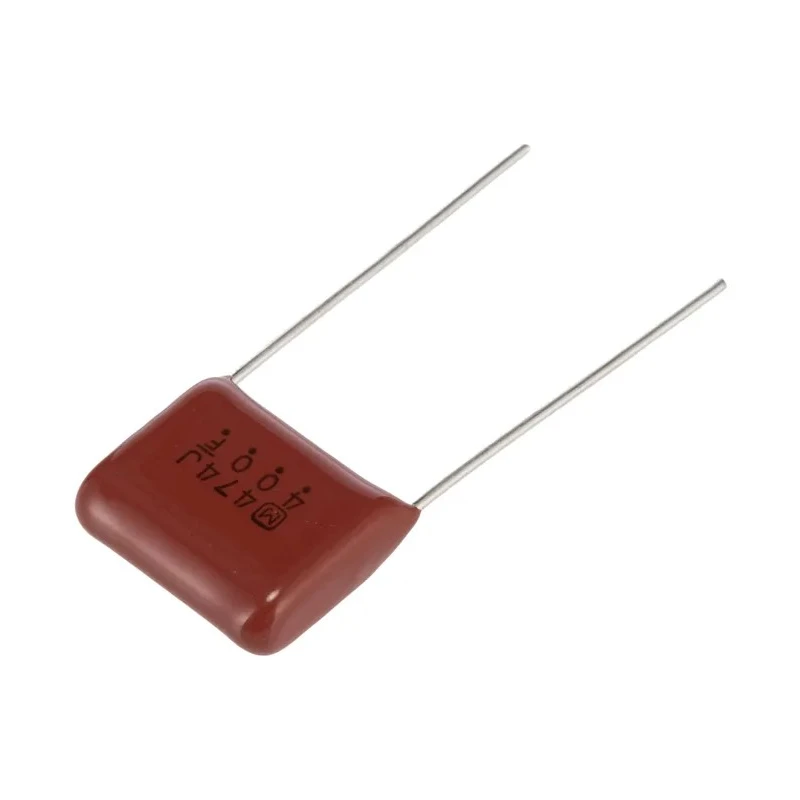

Panasonic ECQE(F) Film Capacitor 470 nF 400V AC 400V DC Through Hole Mount ECQE4474JF

Panasonic ECQE4474JF film capacitor features a capacitance of 470 nF and a voltage rating of 400V AC and 400V DC. This through-hole mount capacitor is designed with a 15mm lead pitch and compact physical dimensions of 7.8 mm width, 17 mm height, and 18.5 mm length, making it suitable for a variety of industrial and automotive electronic applications.

Constructed using metallised polyester film, it incorporates a flame-retardant epoxy resin coating that enhances electrical safety by minimizing fire hazards. The capacitor supports operation within a broad temperature range from -40°C up to 105°C, ensuring reliable performance in harsh environments. Its ±5% capacitance tolerance and non-inductive design provide precision and consistent operation in sensitive circuits.

Panasonic’s ECQE(F) series capacitors include a self-healing property that enables the capacitor to recover from minor dielectric disruptions, extending the component's functional life. The product complies with stringent automotive standard AEC-Q200 and is certified to international standards CSA E60384-14, EN 60384-14, and UL 60384-14.

This capacitor is commonly deployed in power supplies to stabilize voltage, in timing circuits to ensure accurate timings, in snubber circuits protecting motor drives, and in audio/RF filters for signal integrity.

This capacitor features a 15mm lead pitch for secure PCB mounting. Constructed from metallised polyester film with flame-retardant epoxy coating for enhanced safety. Operates reliably from -40°C to +105°C in demanding industrial environments.

Capacitance tolerance is tightly controlled at ±5% for precision applications. Compliance with AEC-Q200 automotive standards ensures robust automotive usage. Designed for applications including power supplies, motor drive snubber circuits, and RF filtering.

Self-healing dielectric property ensures longer component lifespan under electrical stress. Certifications include CSA E60384-14, EN 60384-14, and UL 60384-14 standards.

These capacitors are ideal for industrial automation, automotive electronics, communications equipment, and other precision electronic devices where high reliability is critical. Explore other Film Capacitors and electronic components in the EnvMart catalog for complementary products.
