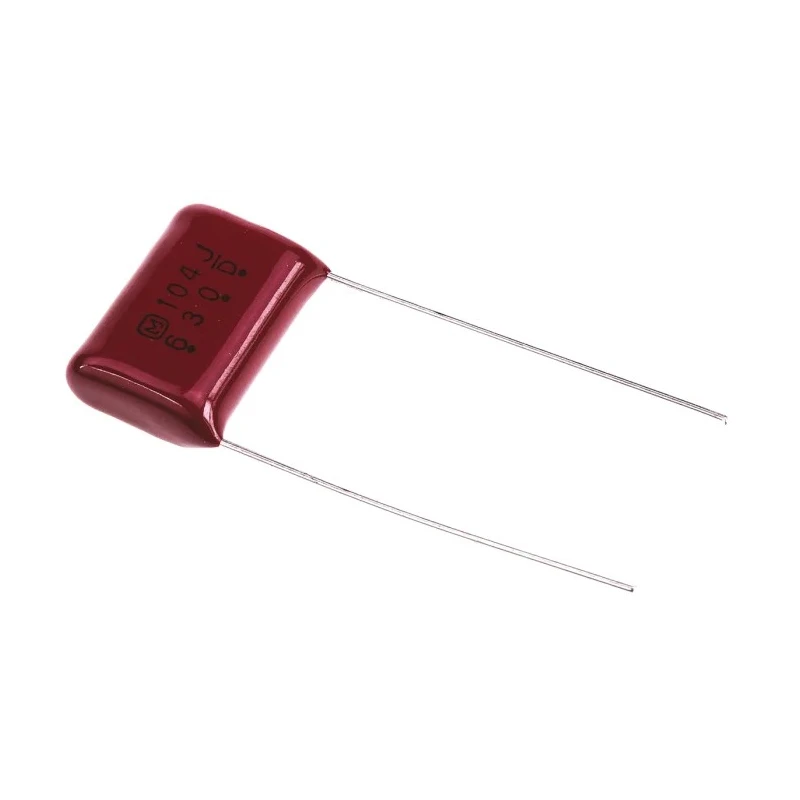

Panasonic ECQE(F) Film Capacitor 100 nF 630V AC 630V DC Through Hole 2 Pin ECQE6104JF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 14mm |
| Length | 18.5mm |
| Model | ECQE6104JF |
| Width | 6.3mm |
| Mount Type | Through Hole |
| Series | ECQE(F) |
| Maximum Operating Temperature | 105°C |
| Capacitance | 100nF |
| Pin Count | 2 |
| Rated AC Voltage | 630V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Capacitance value of 100 nF with ±5% tolerance ensures precise charge storage.
- Rated for both 630V AC and 630V DC voltage handling.
- Constructed with flame-retardant epoxy resin coating for enhanced safety.
- Self-healing property improves longevity and reliability of circuits.
- Supports operating temperatures from -40°C to +105°C for wide environmental adaptability.
- Leads spaced with 15 mm pitch suitable for through-hole PCB mounting.
- Compact dimensions of 18.5 mm length, 14 mm height, and 6.3 mm width optimize space usage.
- Compliant with automotive standard AEC-Q200 and certifications EN 60384-14, UL 60384-14, CSA E60384-14.
Product Description
Panasonic ECQE6104JF Film Capacitor is a 100 nF capacitance component rated for 630V AC and 630V DC operation, featuring a through-hole 2-pin mount and compliance with stringent standards. Its compact dimensions (18.5 mm x 14 mm x 6.3 mm) make it suitable for space-constrained circuit boards.
Equipped with flame-retardant epoxy resin coating, this capacitor offers enhanced safety and durability. The self-healing characteristic allows it to recover from minor electrical faults, promoting extended service life and increased reliability in various applications.
Designed to operate at temperatures ranging from -40°C to +105°C, it can be deployed in diverse environments, including automotive, industrial, and consumer electronics. This component meets the automotive standard AEC-Q200 and international certifications EN 60384-14, UL 60384-14, and CSA E60384-14, ensuring its robustness and high quality.
Typical applications include ignition systems, lighting controls, audio equipment, radio frequency circuits, timer circuits, and signal coupling, making it a versatile choice for electronic engineers.
Capacitance value of 100 nF with ±5% tolerance ensures precise charge storage. Rated for 630V AC and 630V DC voltage handling in demanding circuits. Flame-retardant epoxy coating enhances user safety. Self-healing properties improve circuit reliability and lifespan.
Suitable for operation between -40°C and +105°C in various conditions. Through-hole mount with 15 mm lead pitch for stable PCB integration. Compact size: 18.5 mm length, 14 mm height, and 6.3 mm width. Certified to automotive and international safety standards.
Explore more Film Capacitors and electronic components in the Electronics & Electricals category on EnvMart to find compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 100 nF with a tolerance of ±5%.
It is rated for both 630V AC and 630V DC operation.
The maximum operating temperature is 105°C.
The dimensions are 18.5 mm in length, 14 mm in height, and 6.3 mm in width.
It features a through-hole mount with a lead pitch of 15 mm.
The lead diameter is 0.6 mm.
It complies with the automotive standard AEC-Q200.
It is constructed with a flame-retardant epoxy resin coating.
The self-healing property allows it to recover from minor electrical faults, improving reliability and longevity.
Typical applications include ignition systems, lighting controls, audio equipment, radio frequency circuits, timer circuits, and signal coupling.
The country of origin is India.
This model has a pin count of 2.
