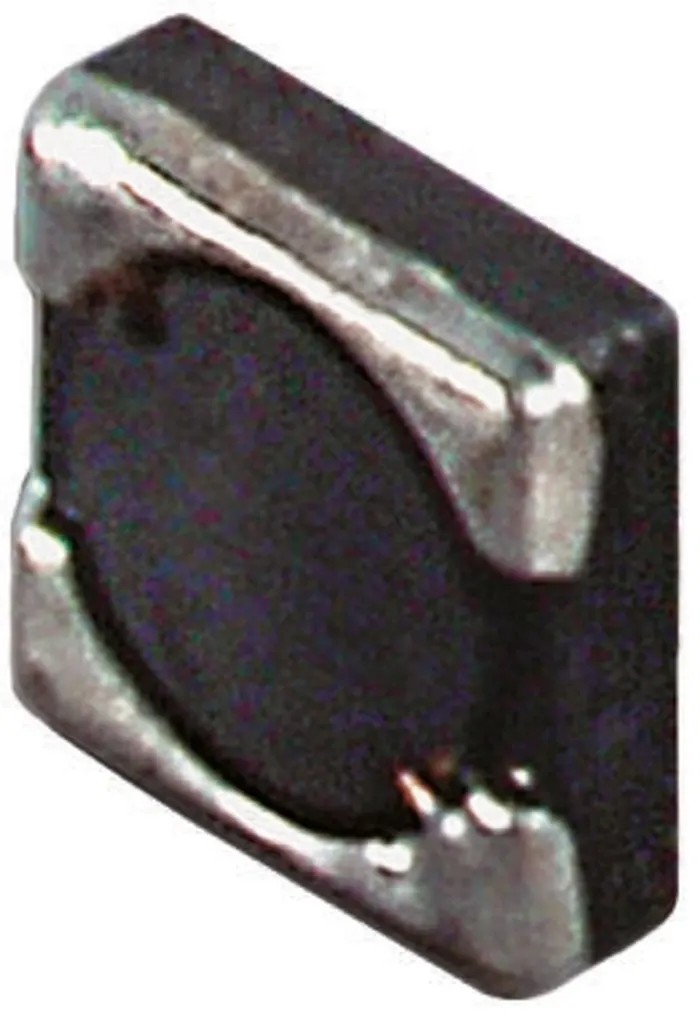

Wurth Elektronik Wirewound Shielded Surface Mount Inductor 10μH ±30%, 1.3A Idc, Ferrite Core, 4.8x1.8x3.6mm WE-TPC 744042100
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.6mm |
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 1.8mm |
| Length | 4.8mm |
| Depth | 4.8mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Package/Case | 4818 |
| Maximum DC Current | 1.3A |
| Maximum DC Resistance | 150mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 45MHz |
| Inductor Construction | Wirewound |
| IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS, IEC 60286-3 | 2013 |
Key Features
- The inductor features a compact 4.8mm by 1.8mm by 3.6mm package size suitable for surface mounting.
- Its ferrite core construction ensures stable inductance and reduced electromagnetic interference.
- Designed for operating temperatures from -40°C up to 125°C, ensuring reliability in harsh environments.
- Maximum DC resistance is rated at 150mΩ contributing to efficient current handling.
- The magnetic shielding minimizes leakage fields, ideal for sensitive electronic applications.
- Complies with RoHS, REACH, IEC, IPC/JEDEC standards, ensuring quality and environmental compliance.
- Suitable for portable power devices, DC/DC converters, embedded PCs, and mobile telemetric systems.
- Packaged in tape and reel format to facilitate automated manufacturing processes.
Product Description
Wurth Elektronik 744042100 WE-TPC Series wirewound surface mount inductor features a ferrite core and is magnetically shielded to minimize leakage fields. This 10μH inductance component comes in a compact 4818 package (4.8mm length, 1.8mm height, and 3.6mm diameter), designed for efficient surface mounting on PCBs. It supports a maximum DC current of 1.3A and operates reliably across a wide temperature range from -40°C to +125°C.
This inductor's robust construction includes a wirewound coil over a ferrite core, offering stable inductance with ±30% tolerance and low DC resistance of 150mΩ to maintain energy efficiency. Its magnetic shielding ensures minimal electromagnetic interference, making it ideal for use in sensitive electronic devices.
Compliant with international standards such as IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, and RoHS certifications, the WE-TPC series guarantees safety and environmental responsibility in manufacturing.
Typical applications include portable power systems such as PDAs, digital cameras, PCMCIA cards, embedded PCs, and telemetric devices, particularly in DC/DC converter circuits. Its tape and reel packaging supports automated insertion systems, enhancing production efficiency.
The inductor provides 10μH inductance with a ±30% tolerance. Maximum DC current rating of 1.3A ensures suitability for high current applications. Compact 4818 package supports space-saving PCB designs. Ferrite core with wirewound construction offers durability and stable performance.
Operating temperature range from -40°C to 125°C ensures versatility. Magnetically shielded design reduces EMI and leakage fields. Compliance with multiple industry standards for quality assurance. Tape and reel packaging suitable for automated assembly lines.
Explore more high-quality Inductors and electronic components available at EnvMart for your industrial and professional electronic equipment needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 10μH with a tolerance of ±30%.
It has a maximum DC current rating of 1.3A, making it suitable for high current applications.
The inductor has a compact package size of 4.8mm in length, 1.8mm in height, and a diameter of 3.6mm.
It operates reliably across a temperature range of -40°C to +125°C.
The inductor features a ferrite core, which contributes to its stable inductance and reduced electromagnetic interference.
It is packaged in tape and reel format, which facilitates automated manufacturing processes.
The maximum DC resistance is rated at 150mΩ, which supports efficient current handling.
It complies with several standards including RoHS, REACH, IEC 61249-2-21, IPC/JEDEC J-STD-020E, and JEDEC JS709B.
The maximum self-resonant frequency is rated at 45MHz.
Typical applications include portable power systems, DC/DC converters, embedded PCs, and mobile telemetric systems.
It features a surface mount termination style, making it suitable for PCB applications.
This unit is constructed as a wirewound inductor, providing stable performance and inductance.
