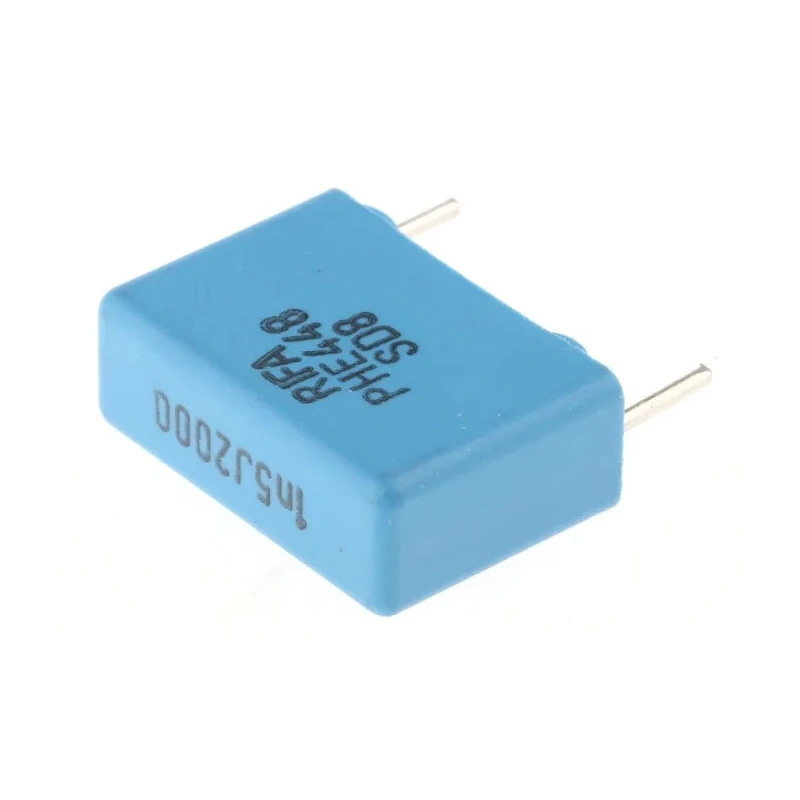

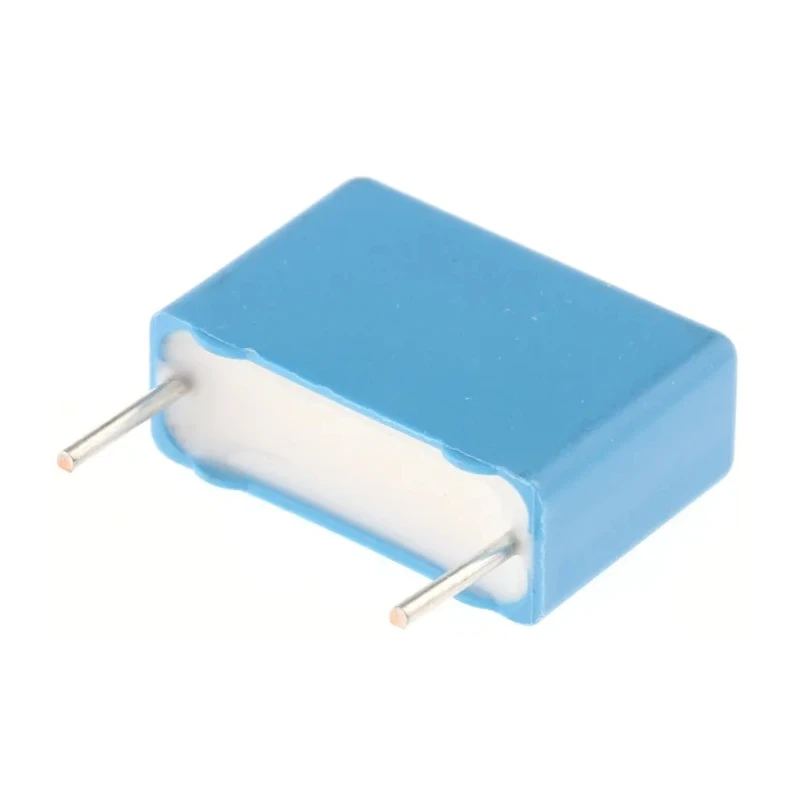

KEMET Film Capacitor 1.5 nF ±5% 2 kV DC 700 V AC Through Hole Radial Lead PHE448

Free Delivery in India | Lowest Global Shipping Charges

KEMET Film Capacitor 1.5 nF ±5% 2 kV DC 700 V AC Through Hole Radial Lead PHE448

Name: KEMET Film Capacitor 1.5 nF ±5% 2 kV DC 700 V AC Through Hole Radial Lead PHE448
Brand: KEMET
SKU: 199099
Price: 0.93 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	Finland
Brand	KEMET
Height	12.5mm
Length	18mm
Model	PHE448
Packaging	Tape & Reel
Width	6.5mm
Mount Type	Through Hole
Series	PHE448
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	1.5nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.001%
Lead Length	6mm
Pin Count	2
Rated AC Voltage	700V ac
Rated DC Voltage	2kV dc
Lead Pitch	15mm
Lead Diameter	0.8mm

Key Features

Capacitance of 1.5 nF with ±5% tolerance.
Rated for 2 kV DC voltage and 700 V AC voltage.
Encapsulated in UL94V-0 self-extinguishing material.
Through-hole radial lead mounting with 15 mm lead pitch.
Operates from -55°C to 105°C temperature range.
Low dissipation factor of 0.001%.
Packaged in tape and reel for automated assembly.
Made in Finland ensuring high quality.

Product Description

The KEMET PHE448 film capacitor (Model: PHE448) is a high-performance electronic component designed for industrial and commercial use. It provides a capacitance value of 1.5 nF with a tolerance of ±5%, making it precise for sensitive circuit applications. Rated for a DC voltage of 2 kV and an AC voltage of 700 V, this capacitor is suitable for high voltage and high frequency pulse and snubber circuits.

Constructed with polypropylene film and encapsulated in self-extinguishing UL94V-0 compliant material, the capacitor ensures safety and durability in demanding environments. The radial lead through-hole mounting type with a 15 mm lead pitch and 0.8 mm lead diameter facilitates easy insertion on printed circuit boards. It operates efficiently across a temperature range of -55°C to 105°C, maintaining performance under harsh conditions.

With physical dimensions of 18 mm in length, 12.5 mm height, and 6.5 mm width, the compact form factor allows versatile usage in various electronic assemblies. The very low dissipation factor (0.001%) ensures minimal energy loss during operation. The product is delivered in tape and reel packaging, making it compatible with automated pick-and-place systems, enhancing production efficiency.

Applications include high frequency power electronics, pulse circuits, and snubber networks in power supplies and converters. The Finnish manufacture guarantees consistency in quality and performance across production batches.

Encapsulated in UL94V-0 certified self-extinguishing material for enhanced safety. Capable of withstanding voltage derating at elevated temperatures (1.3% per °C from 85°C to 125°C). Radial lead mounting suitable for through-hole PCB applications.

Packaged in tape and reel format for streamlined manufacturing.

This KEMET PHE448 film capacitor is an excellent choice for demanding industrial and electronic component applications requiring reliability and precise electrical performance. Browse more Film Capacitors in the EnvMart catalog to explore related parts and compatible components.
