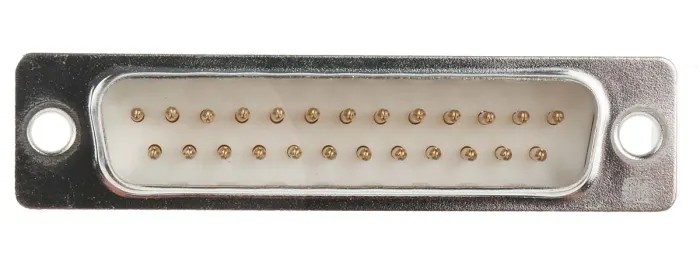

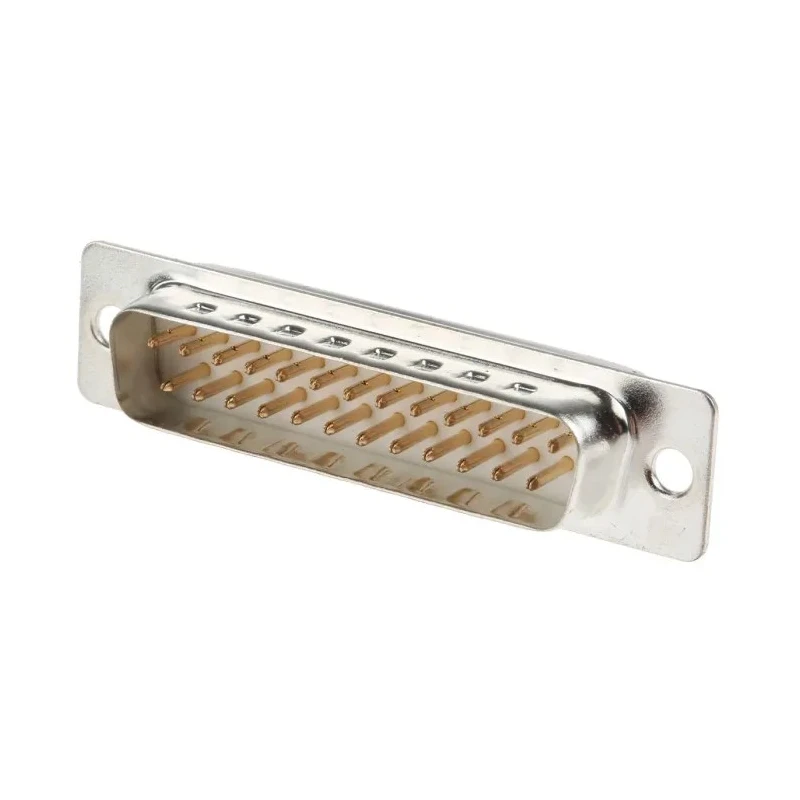

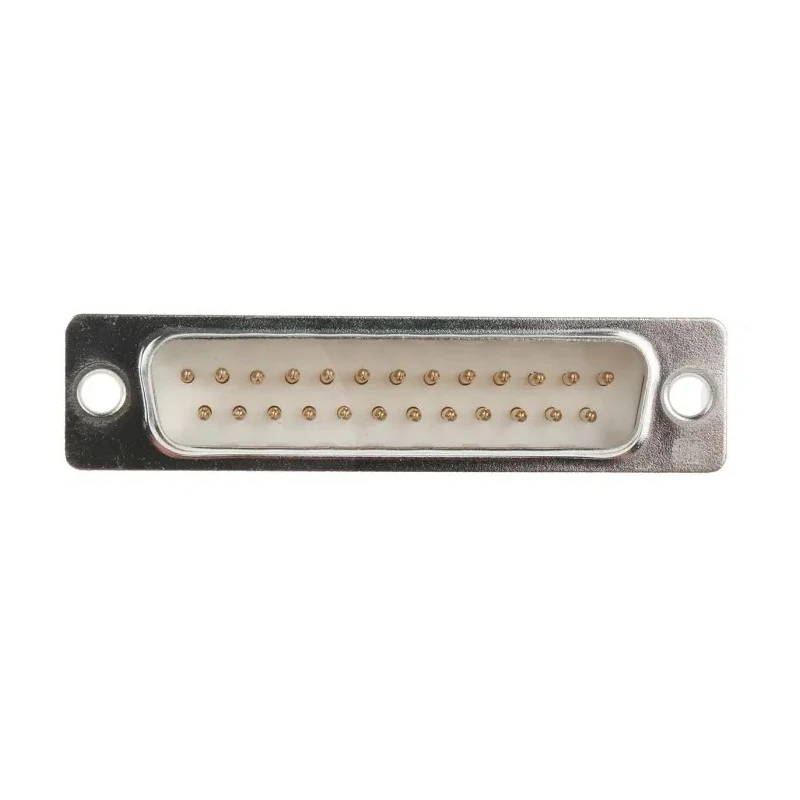

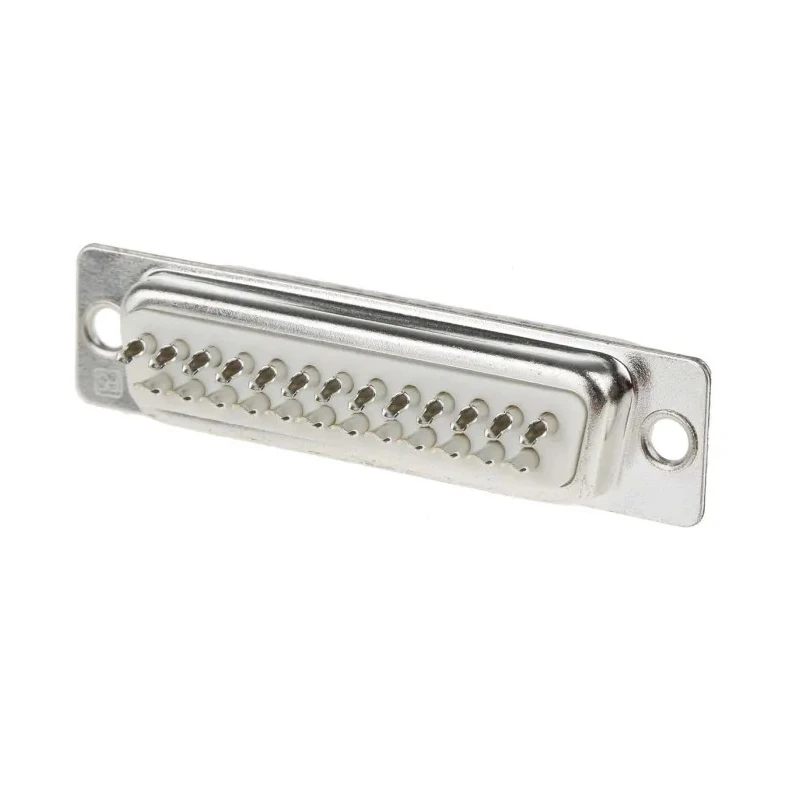

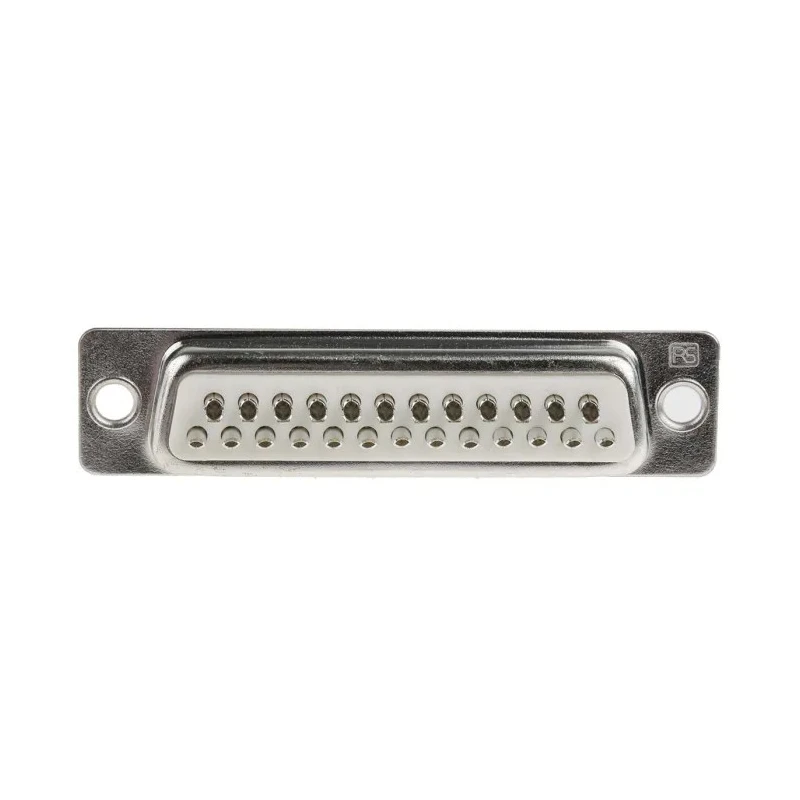

RS PRO 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector, 3.05 mm Through Hole Male 544-3806

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector, 3.05 mm Through Hole Male 544-3806

Name: RS PRO 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector, 3.05 mm Through Hole Male 544-3806
Brand: RS PRO
SKU: 196840
Price: 4.48 USD
Availability: InStock



Category D-Sub Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	500V
Brand	RS PRO
Orientation	Straight
Current	5A
Model	544-3806
Mount Type	Panel Mount
Housing Material	Steel
Contact Material	Brass
Mounting Hardware	3.05 mm Through Hole
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.77mm
Contact Plating	Gold
Number of Contacts	25
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub
D-Sub Shell Size	B
RS PRO 25 Way Straight Panel Mount D-Sub Connector MaleBrand	RS PRO
25W ECON D PLGBrand	NEUTRAL
25 way formed cont straight D plg,500VacBrand	NEUTRAL

Key Features

The connector offers a current rating of 5A suitable for industrial signal applications.
It has a male connector gender with a straight orientation for panel mounting.
Durable steel shell provides strong EMI/RFI protection and mechanical support.
Supports voltage levels up to 500V with solder termination type for secure connections.
Operates within a wide temperature range from -55°C to 105°C for harsh environments.
Includes mounting hardware with 3.05 mm through holes for easy installation.
Contact plating is gold ensuring corrosion resistance and optimal conductivity.
Designed for use in communications, industrial equipment, and data processing systems.

Product Description

RS PRO 544-3806 is a 25 Way Straight Panel Mount D-Sub Connector designed for robust industrial and commercial applications. Featuring a 2.77 mm pitch and constructed with a durable steel housing, this connector ensures reliable connectivity in demanding environments. The male connector with gold-plated brass contacts provides excellent conductivity and corrosion resistance, making it ideal for signal and power transmission up to 500 volts.

Its solder termination type allows for secure wire connections, and the mounting hardware includes 3.05 mm through holes that facilitate easy panel installation. The connector operates efficiently across a broad temperature range, from -55°C up to 105°C, ensuring stable performance in harsh conditions.

With features such as EMI/RFI shielding due to its tin-plated steel shell, RS PRO 544-3806 supports high integration with networking, communication, data processing equipment, industrial machinery, and test instrumentation. The metal D-shaped shell ensures mechanical stability and proper mating alignment with compatible female connectors.

This D-Sub Connector is extensively used for input/output interconnections in computers, monitors, scanners, remote sensors, and portable electric generation equipment. The mounting flanges with holes secure the connector firmly to panels, enhancing installation integrity.

The connector offers a current rating of 5A suited for signal interconnections. It has a robust construction with gold-plated contacts for enhanced conductivity. Suits panel mounting with 3.05 mm through-hole mounting hardware.

Operates reliably within -55°C to 105°C temperature range. Provides excellent EMI/RFI protection with a tin-plated steel shell. Male straight orientation connector for panel mounting applications. Voltage rating up to 500V for industrial use.

Manufactured in Taiwan, Province Of China ensuring quality and consistency. Discover more premium connectors and related components at EnvMart to fulfill your electronic assembly and communication needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It has a current rating of 5A, making it suitable for industrial signal applications.

The connector supports voltage levels up to 500V, suitable for various industrial uses.

This connector operates efficiently within a temperature range from -55°C to 105°C, ensuring stable performance in harsh conditions.

It utilizes a solder termination type for secure wire connections.

The housing is made of steel, and the contacts are made of brass with gold plating for enhanced conductivity and corrosion resistance.

It is designed for panel mounting and includes mounting hardware with 3.05 mm through holes for easy installation.

The pitch of this connector is 2.77 mm, which is standard for its type.

This model features 25 contacts, suitable for various input/output interconnections.

It has a male connector gender, designed for compatibility with female connectors.

This connector is extensively used for input/output interconnections in computers, monitors, scanners, remote sensors, and portable electric generation equipment.

It features a durable steel shell that provides strong EMI/RFI protection, ensuring reliable performance in demanding environments.

It is manufactured in Taiwan, ensuring quality and consistency in its production.
