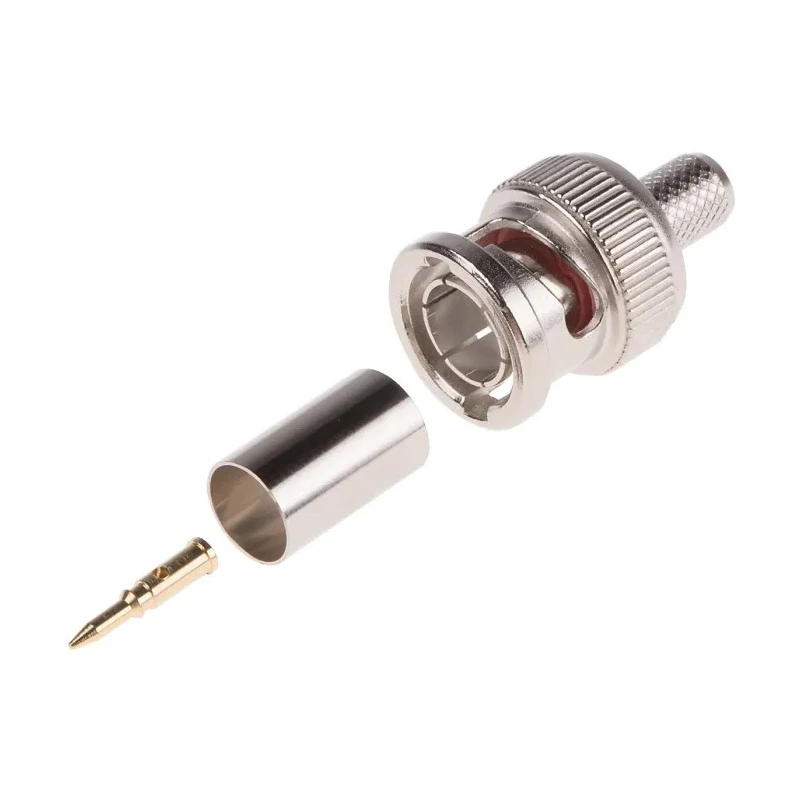

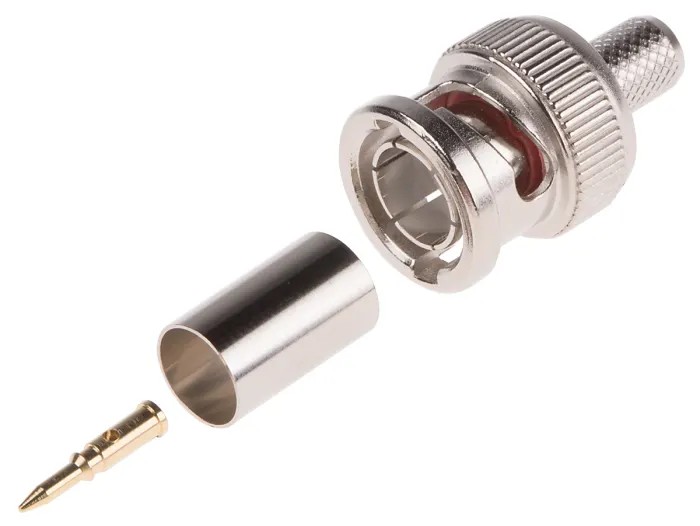

RS PRO Coaxial Connector Cable Male BNC 75 Ω Straight Body Crimp 546-3658
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-3658 |
| Mount Type | Cable |
| Operating Frequency | 1GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Cable Type | PSF 1/3 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| • Insulation material | PTFE |
Key Features
- This BNC connector features a nickel plated body for robust durability.
- Gold plated brass contacts provide excellent conductivity and corrosion resistance.
- Crimp termination allows easy and secure attachment to PSF 1/3 coaxial cables.
- Suitable for operating frequencies up to 1 GHz with normal polarity.
- Designed to operate between -65°C and 85°C with a PTFE insulator ensuring high insulation reliability.
- The connector uses the secure bayonet coupling system for quick and stable connection.
- Widely used in antenna connections, telecom, medical equipment, CCTV, and satellite communications.
Product Description
RS PRO 546-3658 Coaxial Connector Cable Male BNC with 75 Ω impedance offers a high-quality crimp connector solution for robust RF signal applications. Designed for PSF 1/3 coaxial cable, this straight body BNC connector features a nickel plated body for heavy-duty use and gold plated brass contacts to guarantee long-lasting conductivity and resistance to corrosion. The connector uses a convenient bayonet coupling system common to BNC connections, ensuring reliable and quick coupling.
This connector supports operating frequencies up to 1 GHz and withstands a temperature range from -65°C to 85°C. Its insulation material is PTFE, providing enhanced electrical insulation and performance reliability in demanding environments. The crimp termination method is compatible with appropriate crimping tools for secure cable attachment, making installation straightforward.
Typical applications include antenna connections, cable modems, telecom infrastructure, medical and test equipment, satellite communications, and CCTV setups. This component is part of the trusted RS PRO series, known for rigorous industry testing and consistent quality assurance.
Nickel plated heavy-duty body for durability. Gold plated brass contacts for optimum conductivity. Easy crimp termination to PSF 1/3 coaxial cables. Supports frequencies up to 1 GHz with normal polarity. Temperature range from -65°C to 85°C with PTFE insulation.
Bayonet coupling ensures secure connections. Ideal for RF signal applications in various industries.
This RS PRO coaxial connector is an essential component in Electronics & Electricals for applications requiring secure, efficient RF connections. Explore more in the Coaxial Connector category at EnvMart for compatible accessories and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports operating frequencies up to 1 GHz, making it suitable for robust RF signal applications.
It operates within a temperature range of -65°C to 85°C, allowing it to function effectively in various environments.
This connector is designed for use with PSF 1/3 coaxial cables, ensuring a secure and reliable connection.
The connector features a nickel plated body for durability, gold plated brass contacts for excellent conductivity, and PTFE insulation for enhanced electrical performance.
It uses a crimp termination method, allowing for easy and secure attachment to compatible coaxial cables.
This model has an impedance of 75 Ω, which is standard for many RF applications.
It employs a bayonet coupling system, which ensures quick and stable connections.
This connector features a male contact gender, making it suitable for specific applications requiring male connections.
The orientation of this model is straight, allowing for direct connections without bends.
The country of origin for this model is Taiwan, indicating its manufacturing location.
It is widely used in antenna connections, telecom infrastructure, medical equipment, CCTV, and satellite communications.
The contacts are made of brass, which is plated with gold to provide excellent conductivity and resistance to corrosion.
