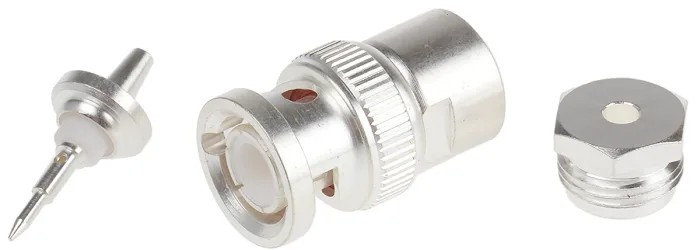

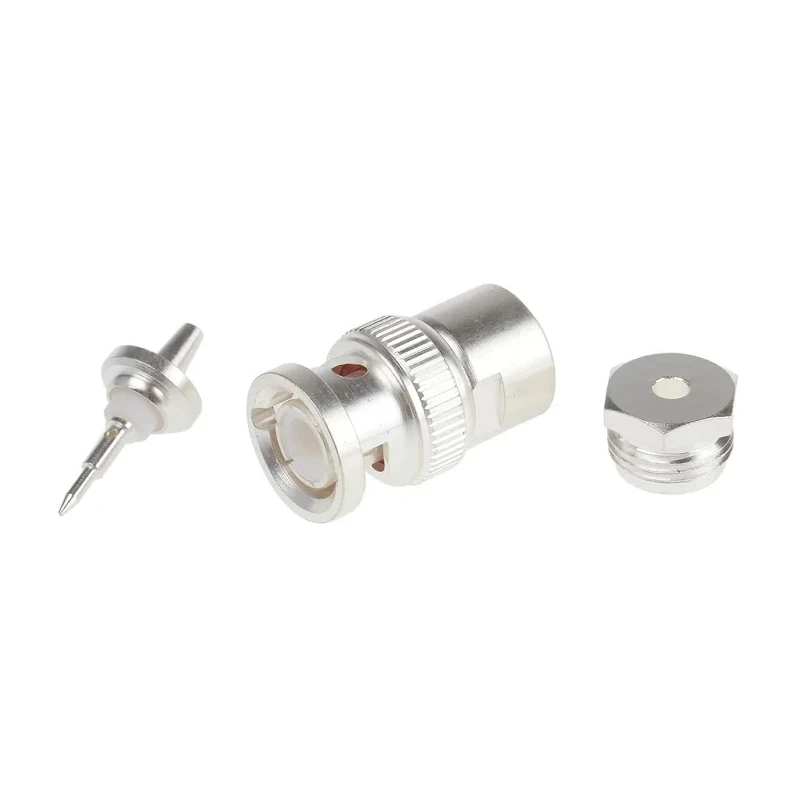

RS PRO Coaxial Connector Cable Male BNC 50 Ω Straight Body Clamp 546-4285
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-4285 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Copper |
| Series | RS PRO |
| Termination Type | Clamp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG174B |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Silver |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Silver |
| RS PRO Coaxial Connector Cable Male BNC, 50 Ω, Straight Body ClampBrand | RS PRO |
| Clamp BNC straight plg-RG174B cable50ohmBrand | RS PRO |
Key Features
- It features a silver plated brass body and silver plated copper contact for excellent conductivity.
- The connector supports cable mounting with an easy-to-terminate clamp design.
- Suitable for use with RG174B coaxial cable type of standard size.
- The connector operates within a temperature range of -65°C to 165°C providing durability in various environments.
- The operating frequency of the connector is up to 4 GHz, supporting a wide range of RF applications.
- Its bayonet-type straight body design ensures a secure and reliable connection.
- Typical applications include antenna connections, CCTV, satellite communication, telecom, and medical/testing equipment.
- Made in Taiwan, Province Of China, ensuring international manufacturing standards.
Product Description
RS PRO 546-4285 Coaxial Connector Cable Male BNC is a precision-engineered RF connector designed to provide outstanding performance and reliability in coaxial cable connections. The connector features a robust silver plated brass body and copper contact with silver plating to ensure superior electrical conductivity and corrosion resistance. It is specifically designed for use with RG174B coaxial cables of standard size and uses a clamp termination type for secure cable attachment.
Operating comfortably at frequencies up to 4 GHz, it suits numerous high-frequency RF applications. The connector covers a broad temperature range from -65°C to 165°C, making it ideal for diverse environmental conditions encountered in industrial, commercial, and laboratory settings.
The bayonet coupling with a straight body design ensures quick and secure mating, reducing connection failures and downtime. This model is commonly deployed across antenna connections, CCTV surveillance systems, satellite communication setups, telecom devices, as well as in medical and testing equipment for reliable signal transmission.
Manufactured in Taiwan, Province Of China, this RS PRO connector meets rigorous quality standards, providing a cost-effective and durable solution for RF connectivity needs. Silver plated brass body enhances durability and conductivity.
Silver plated copper contact ensures stable electrical performance. Clamp termination for secure and easy cable mounting. Supports RG174B cable type of standard size. Operates within -65°C to 165°C temperature range. Handles frequencies up to 4 GHz for versatile RF use.
Straight bayonet body design for quick connection. Wide industrial and commercial application including CCTV, telecom, and test equipment.
This Coaxial Connector is part of the RS PRO series, known for reliable and high-quality electrical components used worldwide. Explore the RS PRO category on EnvMart for additional connectors and accessories to support your projects and operations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 4 GHz, making it suitable for various RF applications.
This model is designed for use with RG174B coaxial cables of standard size.
The connector operates within a temperature range of -65°C to 165°C, allowing for use in diverse environmental conditions.
It features a silver plated brass body and a silver plated copper contact for enhanced conductivity and corrosion resistance.
This model uses a clamp termination type, which allows for secure and easy cable mounting.
The impedance rating of this connector is 50 Ω, suitable for various RF applications.
This connector has a straight orientation, which ensures a secure connection.
This model is manufactured in Taiwan, Province Of China, ensuring adherence to international manufacturing standards.
Typical applications include antenna connections, CCTV, satellite communication, telecom, and medical/testing equipment.
The contact gender of this connector is male, designed for male-to-female connections.
It features a bayonet-type straight body design, which ensures a secure and reliable connection.
Given its wide operating temperature range and robust construction, it is suitable for various environments, including outdoor applications.
