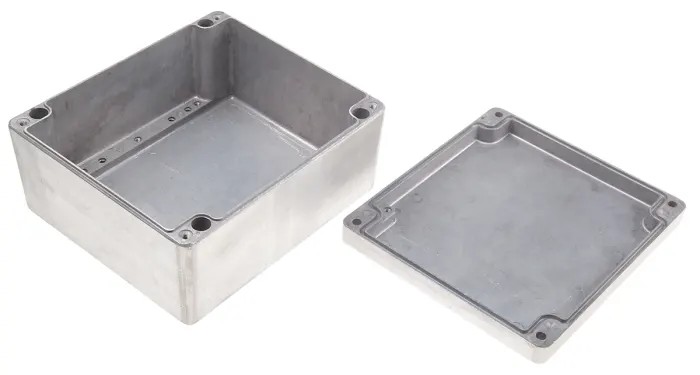

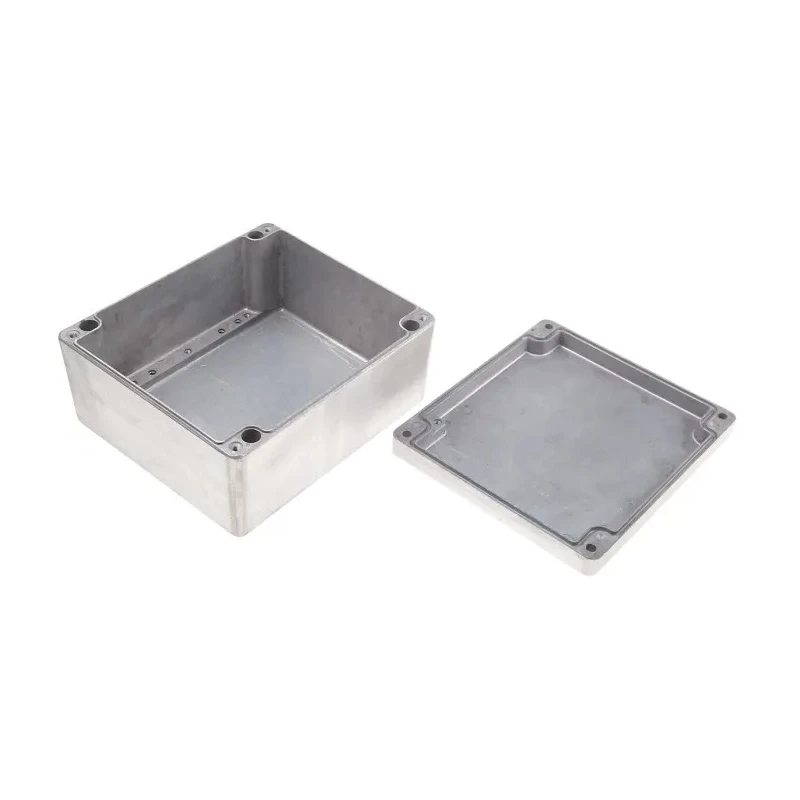

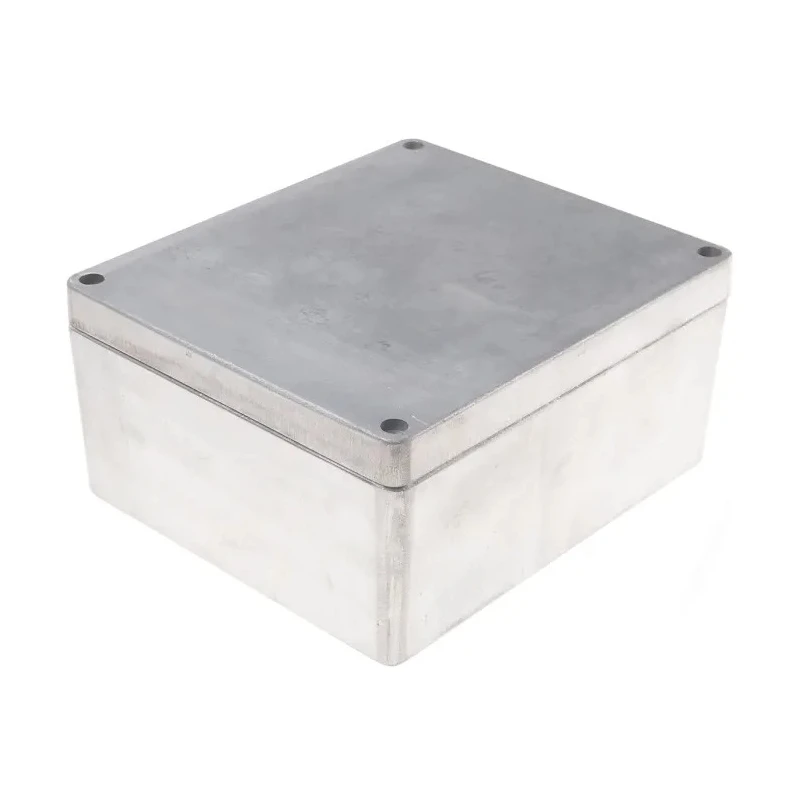

RS PRO Silver Lid Die Cast Aluminium Enclosure IP66 110 mm x 230 mm x 200 mm
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Die Cast Aluminium |
| Model | IP66 |
| IP Rating | IP66 |
| Series | RS PRO |
| External Width | 200mm |
| External Height | 110mm |
| Shielding | Unshielded |
| External Length | 230mm |
| Lid Colour | Silver |
| Gasket Material | Neoprene |
Key Features
- The enclosure is made of durable die cast aluminium with a silver lid for enhanced corrosion resistance.
- It offers IP66 ingress protection, ensuring dust tightness and protection against powerful water jets.
- The enclosure includes a continuous Neoprene O-Ring gasket for watertight sealing.
- It features captive stainless steel lid screws and copper plated earthing screws for reliable grounding.
- The wall thickness of the enclosure is 3 mm, providing mechanical strength.
- Suitable for indoor and outdoor industrial applications, including electrical, telecommunications, and automation projects.
- Temperature stability of the cover seal ranges from -40 to +100°C.
- Includes DIN rail mounting points for easy installation of electrical components.
Product Description
RS PRO IP66 Die Cast Aluminium Enclosure with dimensions 110 mm height x 230 mm length x 200 mm width is specially designed to provide superior protection for electrical and electronic components under demanding environmental conditions.
Constructed from high-quality die cast aluminium (ALSi12) with a natural finish, this enclosure features a silver-coloured lid and body that offer excellent corrosion resistance and durability. The enclosure meets the IP66 rating, meaning it is fully protected against dust ingress and powerful jets of water, making it suitable for both indoor and outdoor use in industrial, electrical, telecommunications, mechanical, and automation applications.
The enclosure includes a Neoprene O-Ring continuous gasket which ensures a watertight seal between the lid and base. It is secured using captive stainless steel lid screws, enhancing ease of use while maintaining high protection levels. Additionally, four copper plated earthing screws are supplied to provide proper grounding of the enclosure and its contents.
The robust design features a wall thickness of 3 mm for mechanical strength, and the cover seal maintains temperature stability in the range of -40 to +100°C, ensuring reliability in varied environments. DIN rail mounting points are integrated to facilitate the secure installation of various electrical modules and components.
Applications for this die cast aluminium enclosure include housing electrical components, telecommunication junction boxes, and various mechanical or automation elements. Its heat dissipation properties make it suitable for projects with thermal considerations, while its ruggedness protects sensitive internals from dust, water, and mechanical impacts.
The enclosure is designed and tested according to standards including DIN1725 and IEC 60529. Certified for mechanical shock and vibration resistance per MIL-STD-810G. Compliant with UL 508A, UL 50, UL 50E, CE, and other international approvals.
Choose the RS PRO IP66 Die Cast Aluminium Enclosure to ensure the highest levels of protection and durability for your electrical and industrial projects. For more options and related products, explore the general purpose enclosures category on EnvMart.
Explore more products in our Electrical Enclosure category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure has external dimensions of 110 mm in height, 230 mm in length, and 200 mm in width.
It has an IP66 ingress protection rating, meaning it is dust-tight and protected against powerful water jets.
The enclosure is constructed from die cast aluminium, which provides excellent corrosion resistance and durability.
The cover seal maintains temperature stability in the range of -40 to +100°C, ensuring reliable performance in various environments.
Yes, it includes a continuous Neoprene O-Ring gasket for a watertight seal between the lid and base.
The enclosure features captive stainless steel lid screws for secure fastening and ease of use.
It comes with four copper plated earthing screws to provide proper grounding of the enclosure and its contents.
Yes, the enclosure is designed for both indoor and outdoor industrial applications, making it versatile for various environments.
It is compliant with UL 508A, UL 50, UL 50E, CE, and has been tested according to standards including DIN1725 and IEC 60529.
The wall thickness of the enclosure is 3 mm, providing mechanical strength.
It includes DIN rail mounting points for the easy installation of electrical components.
The country of origin for this enclosure is India.
