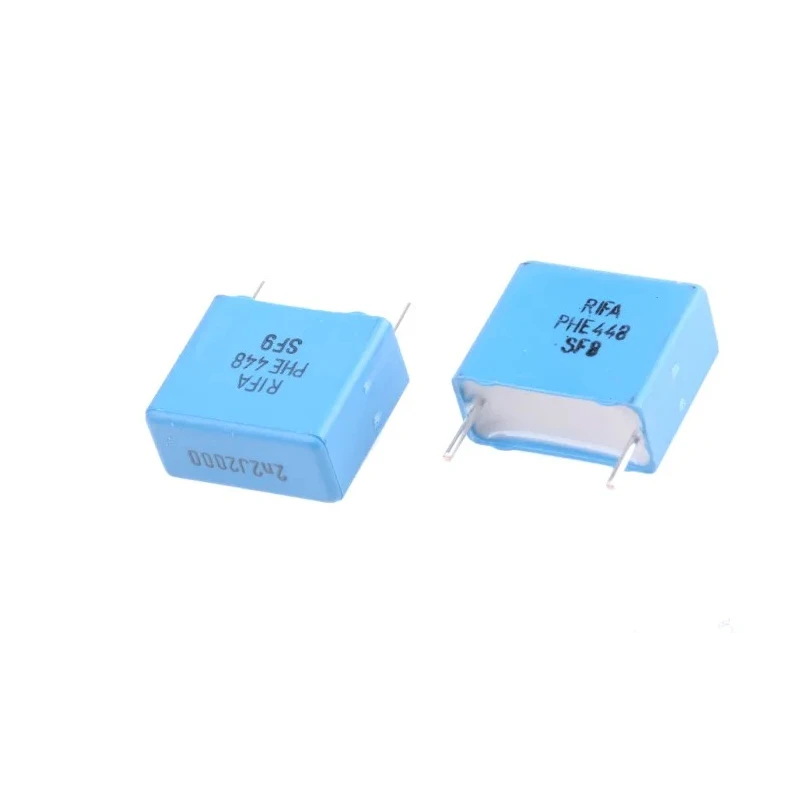

KEMET Film Capacitor 2.2 nF ±5% 2 kV DC 700 V AC Through Hole Radial Lead PHE448

Free Delivery in India | Lowest Global Shipping Charges

KEMET Film Capacitor 2.2 nF ±5% 2 kV DC 700 V AC Through Hole Radial Lead PHE448

Name: KEMET Film Capacitor 2.2 nF ±5% 2 kV DC 700 V AC Through Hole Radial Lead PHE448
Brand: KEMET
SKU: 199092
Price: 1.3 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	Finland
Brand	KEMET
Height	16mm
Length	18mm
Model	PHE448
Packaging	Tape & Reel
Width	8.5mm
Mount Type	Through Hole
Series	PHE448
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	2.2nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.001%
Lead Length	6mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	700V ac
Rated DC Voltage	2kV dc
Lead Pitch	15mm
Lead Diameter	0.8mm

Key Features

Through hole radial lead mounting ensures stable installation.
Rated for 2 kV DC and 700 V AC voltages.
Encapsulated in a self-extinguishing material compliant with UL94V-0.
Lead pitch of 15 mm and lead length of 6 mm for easy PCB insertion.
Operating temperature range from -55°C to 105°C suits harsh environments.
Low dissipation factor of 0.001% ensures signal integrity.
Complies with RoHS standards and manufactured in Finland.

Product Description

KEMET PHE448 Film Capacitor, model PHE448, is a polypropylene film capacitor with a capacitance of 2.2 nF and tolerance of ±5%, designed to operate at 2 kV DC and 700 V AC. This through hole mounted capacitor features radial leads and is encapsulated in UL94V-0 self-extinguishing material, making it ideal for high frequency and high voltage pulse and snubber applications in industrial electronics and power circuits.

The capacitor has a lead pitch of 15 mm and lead length of 6 mm with 0.8 mm lead diameter to facilitate secure PCB mounting. It operates reliably within a temperature range of -55°C to 105°C and should be derated above 85°C at a rate of 1.3% per °C up to 125°C.

Physical dimensions include a length of 18 mm, height of 16 mm, and width of 8.5 mm. Its low dissipation factor of 0.001% contributes to efficient performance in signal processing applications. The component meets RoHS directives and is manufactured in Finland, guaranteeing quality and compliance for industrial, laboratory, electronic manufacturing, and high voltage power supply uses.

Through hole radial lead mounting for robust circuitry connection. Polypropylene film dielectric suitable for pulse, snubber, and high voltage applications. Encapsulation with self-extinguishing material complies with UL94V-0 safety standards.

Wide operating temperature range from -55°C to 105°C for diverse environments. Compact form factor with 18 mm length and 8.5 mm width fits standard PCB layouts. Low dissipation factor enhances electrical efficiency and signal quality.

Complies with RoHS environmental regulations. Manufactured in Finland ensuring consistent quality standards.

This capacitor is commonly used in industrial electronics, power and control systems, electronic instrumentation, and high voltage applications where reliability and safety are paramount. The PHE448 series offers proven performance for pulse and snubber circuits in demanding industrial and laboratory environments.
