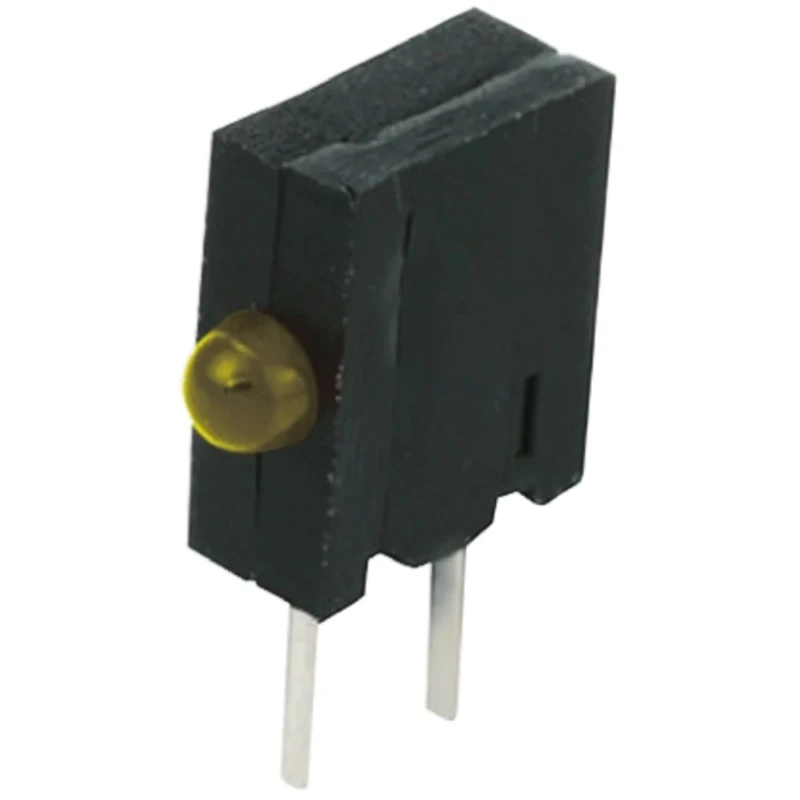

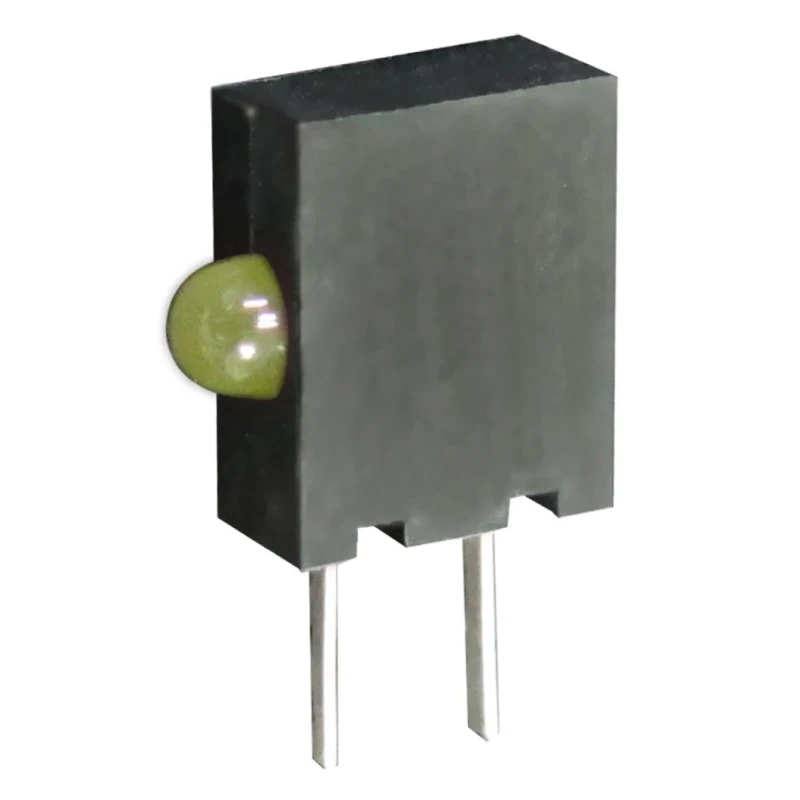

Kingbright Yellow Right Angle PCB LED Indicator 3 mm Diffused Lens 2.5 V 100 mW KM2520EH/1YD

Free Delivery in India | Lowest Global Shipping Charges

Kingbright Yellow Right Angle PCB LED Indicator 3 mm Diffused Lens 2.5 V 100 mW KM2520EH/1YD

Name: Kingbright Yellow Right Angle PCB LED Indicator 3 mm Diffused Lens 2.5 V 100 mW KM2520EH/1YD
Brand: Kingbright
SKU: 199058
Price: 2.26 USD
Availability: InStock



Category PCB LED Indicator Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Length	6.22mm
Model	KM2520EH/1YD
Mount Type	Through Hole
Number Of Leds	1
Maximum forward current	30mA
Viewing angle	40 °
Sub Type	Single Colour
Power Dissipation	100mW
Lens Colour	Yellow
Luminous Intensity	10mcd
Standards/Approvals	RoHS
LED Colour	Yellow
Number of Pins	2
Lens Finish	Diffused
Minimum Supply Voltage	2.5V
LED Material	GaP, GaAsP
Multicolour/Single Colour	Single Colour
LED Orientation	Right Angle
LED Size	3 mm (T-1)

Key Features

The indicator features a right angle LED orientation suitable for PCB mounting.
It operates at a minimum supply voltage of 2.5 V with a maximum forward current of 30 mA.
Constructed from GaP and GaAsP materials, it ensures high performance and reliability.
The black plastic housing provides durable, UL 94 V-0 rated protection for high-contrast visibility.
This subminiature LED indicator is ideal for electronic applications requiring low power dissipation of 100 mW.
The LED size is 3 mm (T-1) with a length of 6.22 mm for compact installation.

Product Description

Kingbright KM2520EH/1YD Yellow Right Angle PCB LED Indicator 3 mm is a high-quality subminiature LED designed for electronic and industrial applications. Featuring a single yellow colour, this indicator offers clear and reliable visual status indication in PCB assemblies.

Its right angle LED orientation and through-hole mounting method make it convenient for PCB installations, minimizing board space usage while ensuring a robust connection. The diffused lens finish provides soft yellow illumination, reducing glare and enhancing visibility at a 40° viewing angle.

Constructed from GaP and GaAsP semiconductor materials, the LED ensures efficient light emission with a luminous intensity of 10 mcd. Operating at a minimum supply voltage of 2.5 V and a maximum forward current of 30 mA, it achieves low power dissipation of 100 mW, optimizing energy consumption.

The black plastic housing is UL 94 V-0 rated, offering flame retardant properties and high contrast against the yellow light output, suitable for use in domestic, commercial, laboratory, and industrial electronic equipment.

This 3 mm (T-1) LED indicator has an overall length of 6.22 mm, providing a compact form factor for integration into various PCB designs. It is RoHS compliant and manufactured in China, meeting environmental and safety standards.

The indicator is perfect for electronic assemblies requiring discrete, efficient LED status indicators. Its robust construction supports applications across industrial machinery, instrumentation panels, and consumer electronics.

The product supports reliable, long-term performance in demanding electrical environments. Ideal for signal indication, status monitoring, and display purposes in electrical and electronic systems. The LED’s right angle orientation simplifies wiring and installation in constrained PCB layouts.
