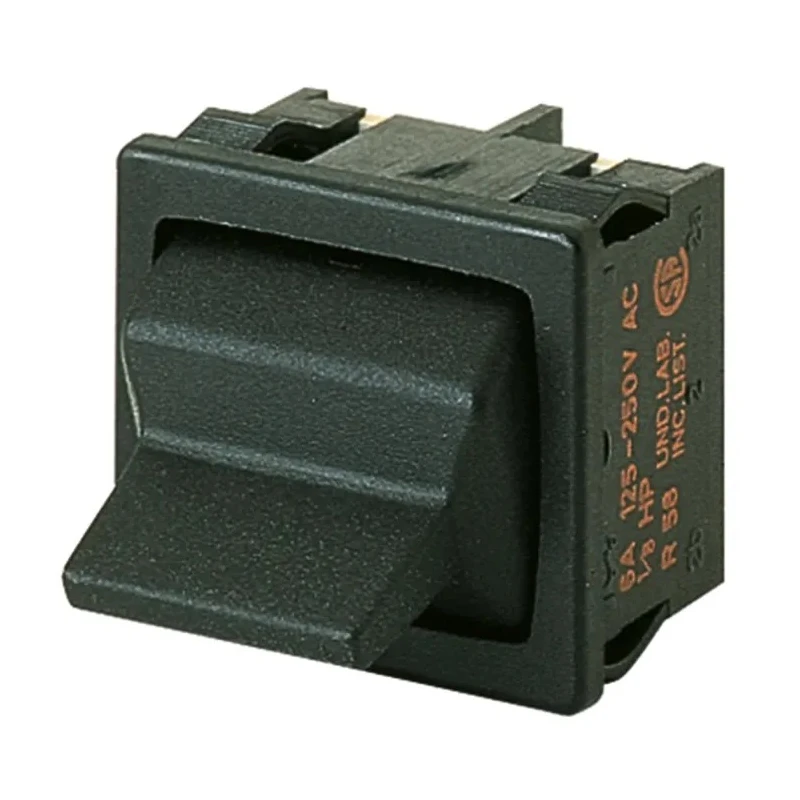

Marquardt Panel Mount Toggle Switch On-Off-On DPDT Tab Terminal 12V dc 250V ac 01819.1302-01
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | Marquardt |
| IP Rating | IP40 |
| Mount Type | Panel |
| Series | 1810 |
| Maximum Operating Temperature | 100°C |
| Contact Configuration | DPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 20.5 x 18.6 mm |
| Terminal type | Tab |
| Standards/Approvals | UL, ENEC, CSA |
| Switch Operation | On-Off-On |
| Actuator Length | 14mm |
| Contact DC Voltage | 12V dc |
| Switch Contact Current | 6A |
| Mechanical Life | 100000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Polyamide |
Key Features
- Panel mount design suitable for secure installation.
- Double Pole Double Throw (DPDT) contact configuration.
- Switch contact current rated at 6A for reliable performance.
- Tab terminal type for easy wiring connections.
- IP40 rated for moderate environmental protection.
- Panel cutout size of 20.5 x 18.6 mm for precise fitting.
- Actuator length of 14 mm made from durable polyamide material.
- Operating temperature range from -20°C to 100°C ensuring versatility.
Product Description
Marquardt 01819.1302-01 Panel Mount Toggle Switch is a robust and reliable switch designed for industrial and commercial electrical applications. Featuring a Double Pole Double Throw (DPDT) contact configuration and On-Off-On switch operation, it supports a wide range of switching needs with a current rating of 6A.
The panel mount design allows for easy and secure installation in control panels or equipment housings, with a precise panel cutout size of 20.5 x 18.6 mm. The switch uses tab terminals, facilitating straightforward wiring connections in industrial setups.
It is rated for 12 V dc and 250 V ac, accommodating both DC and AC power systems. The actuator is made of polyamide material measuring 14 mm in length, ensuring durability and ergonomic operation. The switch is IP40 rated, providing protection against solid objects larger than 1 mm, suitable for moderately harsh environments.
The operating temperature range from -20°C to 100°C ensures dependable performance across various industrial, automation, and electrical use scenarios. Additionally, the switch boasts a long mechanical life of 100,000 cycles, reducing maintenance and replacement frequency.
Marquardt 01819.1302-01 complies with UL, ENEC, and CSA standards, confirming its safety and quality for demanding applications. Originating from Tunisia, this toggle switch is ideal for use in panel controls, machinery, and electrical circuits requiring reliable manual switching capabilities.
Panel mount design suitable for secure installation. Double Pole Double Throw (DPDT) contact configuration. Switch contact current rated at 6A for reliable performance. Tab terminal type for easy wiring connections. IP40 rated for moderate environmental protection.
Panel cutout size of 20.5 x 18.6 mm for precise fitting. Actuator length of 14 mm made from durable polyamide material. Operating temperature range from -20°C to 100°C ensuring versatility. Mechanical life expectancy of 100,000 cycles providing long-term reliability.
Complies with UL, ENEC, and CSA standards for safety and quality. Explore more high-quality Toggle Switches and electrical components in the Electronics & Electricals category at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching applications.
It has a switch contact current rating of 6A, ensuring reliable performance in various applications.
This model supports a contact DC voltage of 12V and a contact AC voltage of 250V, making it suitable for both DC and AC power systems.
The operating temperature range for this switch is from -20°C to 100°C, allowing it to function effectively in diverse environments.
The required panel cutout size for installation is 20.5 x 18.6 mm, ensuring a precise fit in control panels or equipment housings.
This switch uses tab terminals, which facilitate straightforward wiring connections in industrial setups.
The actuator length is 14 mm and is made from polyamide material, providing durability during operation.
The switch is rated IP40, providing protection against solid objects larger than 1 mm, suitable for moderately harsh environments.
The mechanical life expectancy of this toggle switch is 100,000 cycles, reducing the need for frequent maintenance or replacement.
It complies with UL, ENEC, and CSA standards, confirming its safety and quality for demanding applications.
The toggle switch is manufactured in Tunisia, ensuring compliance with international quality standards.
This toggle switch is ideal for use in panel controls, machinery, and electrical circuits requiring reliable manual switching capabilities.
