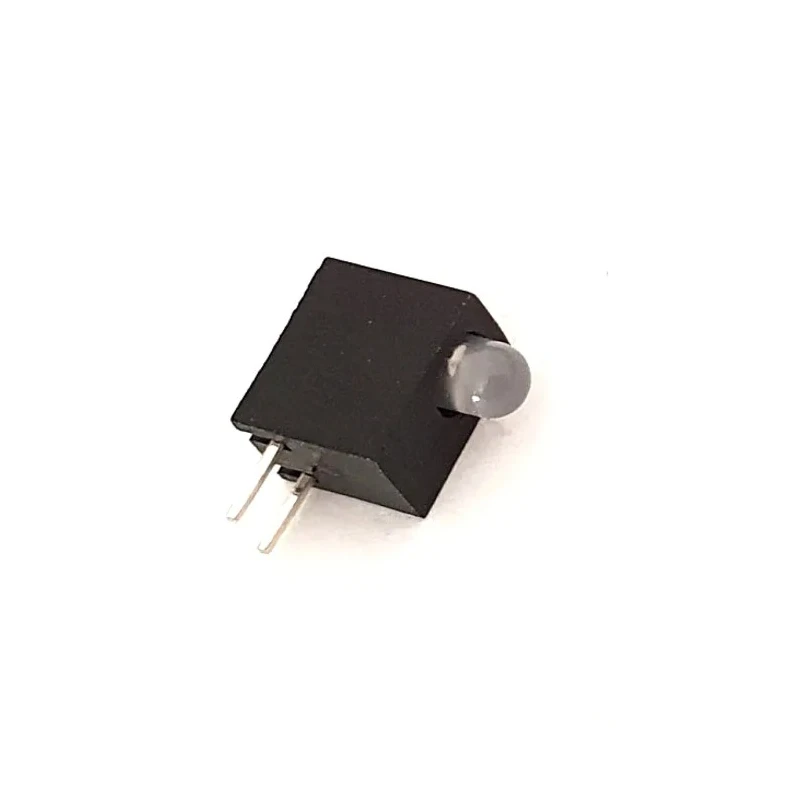

CML Innovative Technologies Red, Green Right Angle PCB LED Indicator 3 mm (T-1), 2 LEDs 5 V 15701005
Specifications
| Country of Origin | China |
|---|---|
| Brand | CML Innovative Technologies |
| Length | 12mm |
| Model | 15701005 |
| Number Of Leds | 2 |
| Maximum forward current | 20mA |
| Sub Type | Multicolour |
| Lens Colour | White |
| Luminous Intensity | 55mcd |
| Standards/Approvals | REACH SVHC, RoHS |
| LED Colour | Red, Green |
| Number of Pins | 2 |
| Lens Finish | Diffused |
| Minimum Supply Voltage | 5V |
| Multicolour/Single Colour | Multicolour |
| LED Orientation | Right Angle |
| LED Size | 3 mm (T-1) |
Key Features
- The indicator has dual colour LEDs with red and green emission.
- It includes two LEDs arranged in right angle orientation for PCB mounting.
- The LEDs have a size of 3 mm (T-1) with diffused white lenses.
- The maximum forward current is 20 mA ensuring safe electrical operation.
- Luminous intensity is rated at 55 mcd for clear visibility.
- Operating temperature ranges from -20°C to +80°C for robust usage.
- Compact length of 12 mm supports high-density PCB layouts.
- Complies with REACH SVHC and RoHS standards for environmental safety.
Product Description
CML Innovative Technologies model 15701005 is a red and green right angle PCB LED indicator designed for versatile electronic and industrial applications. This indicator features two 3 mm (T-1) LEDs with diffused white lenses for optimal light diffusion and clear visual signalling on printed circuit boards.
With a dual colour LED setup, it provides both red and green emissions, enabling multicolour indication from a single component. The LEDs operate at a minimum supply voltage of 5 V and a maximum forward current of 20 mA, making them energy efficient yet bright with a luminous intensity of 55 mcd.
The length of the LED indicator is 12 mm, suitable for compact PCB designs and right angle mounting enhances ease of placement in electronic assemblies. Its operating temperature range from -20°C to +80°C ensures reliable performance under various environmental conditions.
Manufactured to comply with REACH SVHC and RoHS standards, the product assures environmental and safety compliance. This LED indicator fits well in industrial control panels, signaling devices, instrumentation, and other electronic components requiring status indication with multicolour LED visual feedback.
The indicator has dual colour red and green LEDs. Includes two LEDs oriented at right angle for PCB mounting. LED size is 3 mm (T-1) with white diffused lens for clarity. Supports maximum forward current of 20 mA at 5 V supply voltage.
Luminous intensity is 55 mcd, offering strong visibility. Functional temperature range from -20°C to +80°C ensures durability. Compact length of 12 mm ideal for PCB applications. Certified to REACH SVHC and RoHS standards.
Multicolour operation with red and green LED emissions. Commonly applied in industrial electronics and instrumentation for indication. Explore EnvMart's range of PCB LED Indicators and lighting components for industrial electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 20 mA, ensuring safe electrical operation.
The luminous intensity is rated at 55 mcd, providing clear visibility for the indicator.
It operates within a temperature range of -20°C to +80°C, suitable for various environmental conditions.
The LEDs are 3 mm (T-1) in size, designed for PCB mounting.
This unit features a right angle orientation, facilitating easy placement on printed circuit boards.
It complies with REACH SVHC and RoHS standards, ensuring environmental safety.
The length of this model is 12 mm, making it suitable for high-density PCB layouts.
This indicator includes two LEDs, providing dual colour emissions.
The minimum supply voltage required for this model is 5 V.
It features a white diffused lens for optimal light diffusion and clarity.
It is commonly applied in industrial control panels, signaling devices, and instrumentation for status indication.
This model has 2 pins, facilitating its connection on PCB.
