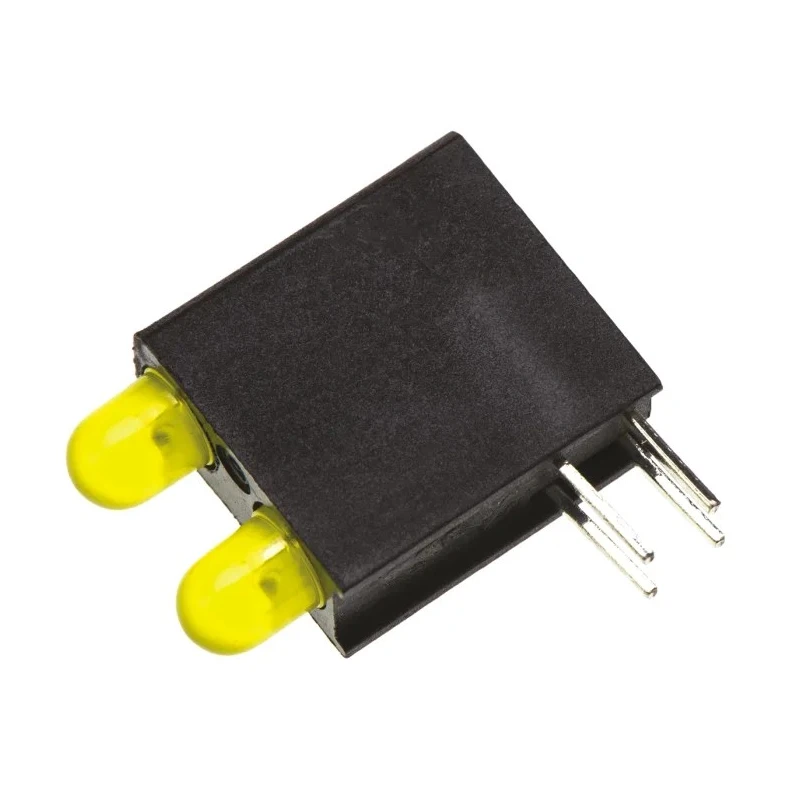

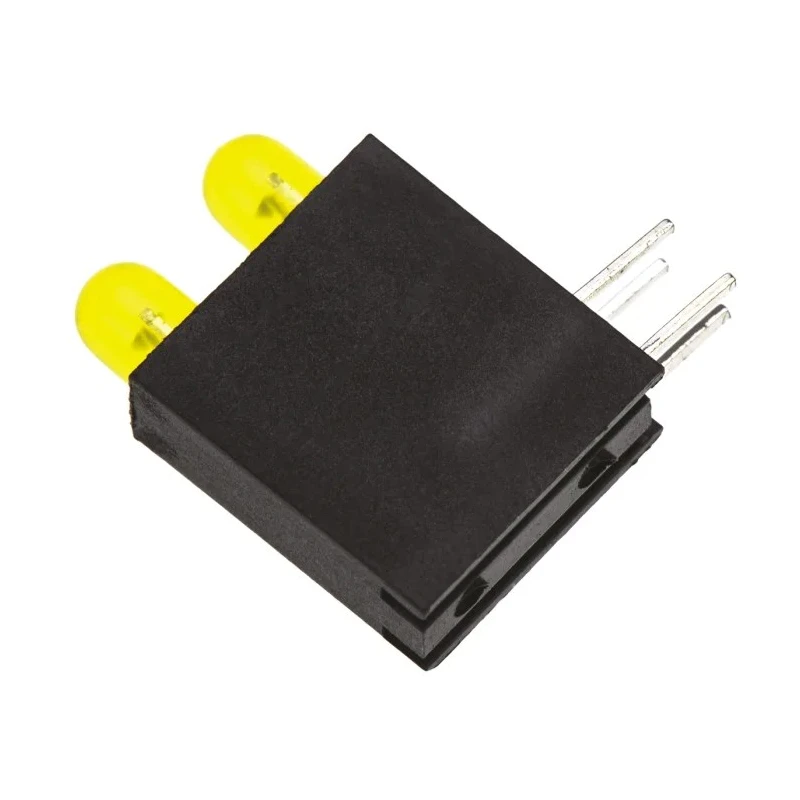

Dialight Yellow Right Angle PCB LED Indicator 3 mm (T-1), 2 LEDs 2.4 V Single Colour 553-0233-200F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Dialight |
| Length | 14.06mm |
| Model | 553-0233-200F |
| Series | 553 |
| Number Of Leds | 2 |
| Maximum forward current | 30mA |
| Viewing angle | 60 ° |
| Sub Type | Single Colour |
| Power Dissipation | 80mW |
| Lens Colour | Yellow |
| Luminous Intensity | 1.6mcd |
| Standards/Approvals | RoHS, UL 94 V-0, MIL-STD-202F |
| LED Colour | Yellow |
| Number of Pins | 4 |
| Lens Finish | Diffused |
| Minimum Supply Voltage | 2.4V |
| LED Material | GaAsP, GaP |
| Multicolour/Single Colour | Single Colour |
| LED Orientation | Right Angle |
| LED Size | 3 mm (T-1) |
| Yellow dual PCB mount LED,5530233200 2mABrand | Dialight |
Key Features
- Features two 3 mm (T-1) yellow LEDs in a right-angle, black plastic housing.
- Designed for through-hole PCB mounting for compact applications.
- Maximum forward current of 30 mA ensures efficient power consumption.
- Luminous intensity of 1.6 mcd provides visible indication with a 60° viewing angle.
- The indicator has 4 pins for secure and easy soldering on circuit boards.
- Constructed with GaAsP and GaP LED materials for reliable performance.
- Housing material is UL 94 V-0 rated black plastic offering high contrast and durability.
- Complies with RoHS and MIL-STD-202F solderability standards for quality assurance.
Product Description
Dialight 553-0233-200F Yellow Right Angle PCB LED Indicator features 2 high-efficiency 3 mm (T-1) LEDs configured in a compact right-angle black plastic housing. Operating at a minimum supply voltage of 2.4 V and a maximum forward current of 30 mA, this PCB LED indicator provides a reliable visual signal with a luminous intensity of 1.6 mcd and a 60° viewing angle. The LEDs use GaAsP and GaP materials combined with a diffused yellow lens for optimal visibility and durability.
The right-angle design and UL 94 V-0 rated housing make it suitable for applications where space is limited and high contrast is required. The component supports through-hole mounting, with four pins to facilitate secure soldering on circuit boards. It is designed to accommodate DIN 41494 standards and can be used to form horizontal LED arrays on 5.08 mm centre lines.
This indicator complies with RoHS directives and meets MIL-STD-202F standards for solderability, ensuring quality and environmental safety. The power dissipation is rated at 80 mW, making it ideal for low power indicator applications in various industrial, electronic, and manufacturing environments.
Two 3 mm yellow LEDs in a right-angle housing. Black UL 94 V-0 rated plastic housing for high contrast. 30 mA maximum forward current with 2.4 V supply voltage. Diffused yellow lens for clear indication. Compliant with RoHS and MIL-STD-202F standards.
Through-hole mounting with 4 pins for secure PCB installation. Suitable for use in electronic displays and optoelectronic indicator applications. Compact size: 14.06 mm length, ideal for space-limited designs. Uses GaAsP and GaP LED materials for efficient luminance.
Power dissipation rating of 80 mW.
This PCB LED indicator from Dialight is suitable for a wide range of applications including industrial machines, laboratory equipment, communication devices, and commercial electronic products requiring reliable visual signals.
Explore the range of PCB LED Indicators and components available on EnvMart for your electronic manufacturing and prototyping needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this LED indicator is 30 mA, ensuring efficient power consumption.
The luminous intensity of this model is 1.6 mcd, providing a visible indication.
This LED indicator requires a minimum supply voltage of 2.4 V for operation.
This model features two 3 mm (T-1) yellow LEDs configured in a right-angle housing.
The viewing angle of this LED indicator is 60°, allowing for clear visibility from various angles.
The length of this LED indicator is 14.06 mm, making it suitable for compact applications.
The LEDs are constructed using GaAsP and GaP materials, which contribute to their reliable performance.
This model supports through-hole mounting with four pins for secure soldering on circuit boards.
Yes, it complies with RoHS directives and meets MIL-STD-202F standards for solderability.
The power dissipation rating for this LED indicator is 80 mW, making it suitable for low power applications.
The lens color is yellow, and it has a diffused finish for optimal visibility.
This LED indicator is manufactured in India.
