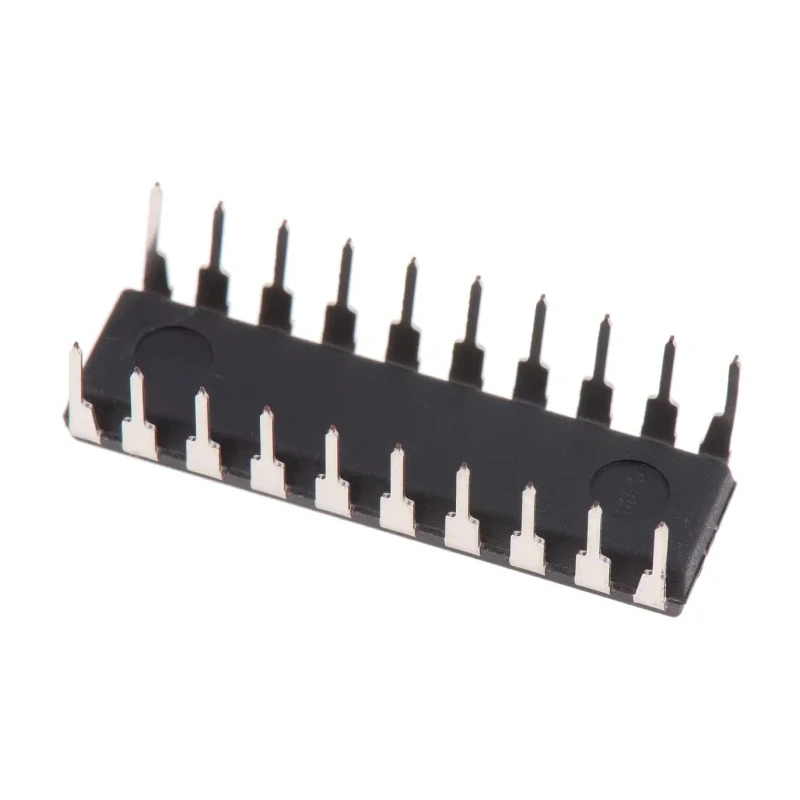

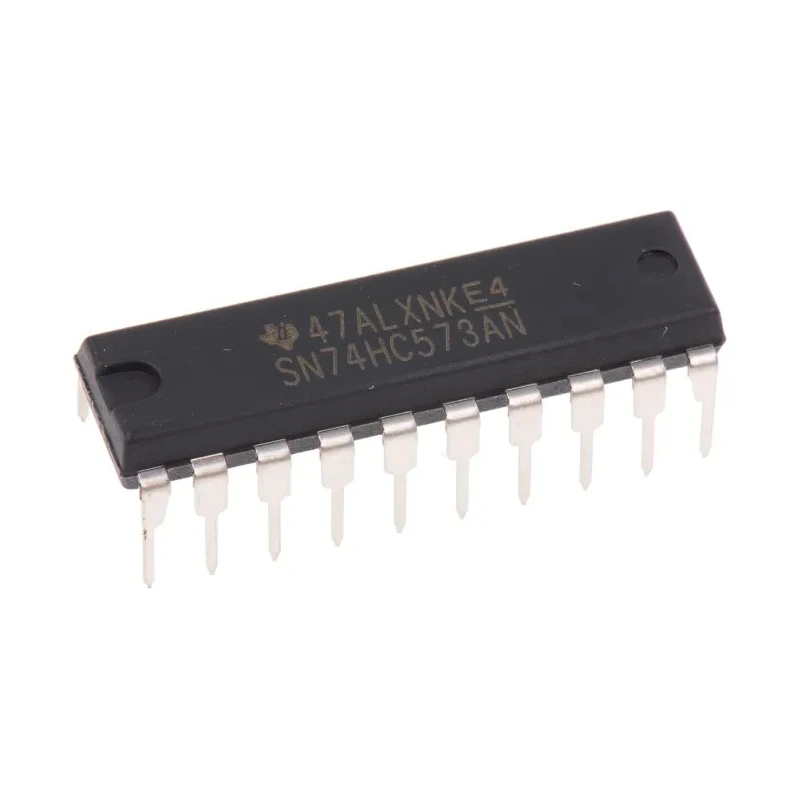

Texas Instruments 8-Bit Transparent Latch, 3 State Output, 20-Pin PDIP Package SN74HC573AN

Texas Instruments SN74HC573AN is an 8-bit transparent latch integrated circuit designed for high-speed CMOS logic applications. It features a 3-state output and is housed in a standard 20-pin PDIP package, making it suitable for through-hole mounting on PCBs. Operating within a voltage range of 2 to 6 V, this latch provides reliable data latching functionality in digital electronic systems.

Part of the 74HC family, this device uses silicon gate CMOS technology to achieve speeds similar to LSTTL logic while maintaining the low power consumption benefits of CMOS circuits. Its transparent latch mode with D-type logic function allows for effective data storage and transfer in digital circuitry.

The output stage supports 3-state operation, enabling it to be used in bus-oriented systems where multiple outputs share a communication line. The latch operates in a non-inverting polarity mode, ensuring straightforward control logic implementation.

This component supports ambient operating temperatures from -40°C to 85°C, ensuring suitability for industrial, laboratory, and embedded system applications. The package measures 24.33 mm in length and 4.57 mm in height, optimizing footprint on printed circuit boards.

Compatible with CMOS input and output logic levels, the SN74HC573AN is suited for TTL and CMOS logic level interfacing. The device is widely used in industrial electronic systems, instrumentation, control applications, and digital logic design where reliable and fast latching is essential.

The latch features transparent mode operation with D type logic function for reliable data handling. It supports 8-bit width operation suitable for various logic circuit needs. Outputs are of the 3-state type, allowing for bus-oriented data handling.

Mount type is through hole, with a PDIP package and 20 pins for compatibility with standard circuit boards. Operates over a voltage range of 2 to 6 volts with standard HC logic family characteristics. Operating temperature range from -40°C to +85°C ensures performance in various environments.

Logic polarity is non-inverting for straightforward circuit integration. Dimensions include a height of 4.57 mm and a length of 24.33 mm optimizing board layout. Compatible with CMOS input and output logic levels for flexible design choices.

This product is essential for electronics manufacturing, embedded system development, and repair processes involving digital logic circuits. Environmentally robust, it serves well in laboratory instruments, industrial equipment, and communication devices. Explore more products in Latch ICs and other semiconductor components to complete your design requirements at EnvMart.
