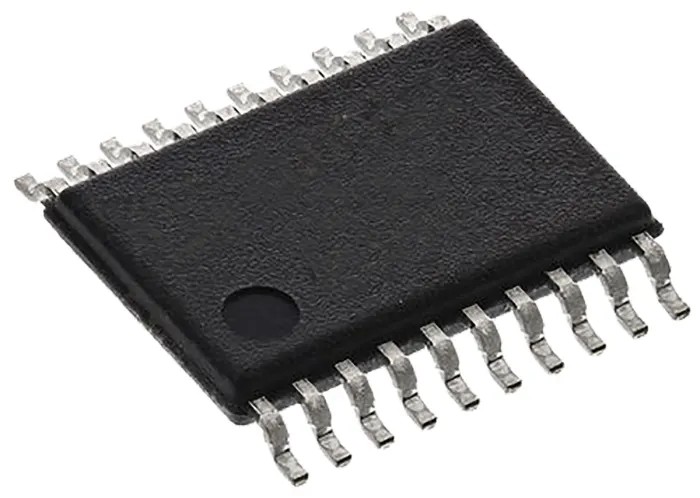

Texas Instruments 8-Bit Transparent D Type Latch, 3 State Output, 20-Pin TSSOP SN74LVC573APWR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.15mm |
| Length | 6.5mm |
| Model | SN74LVC573APWR |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | 3 State |
| Series | 74LVC |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Operating Voltage | 1.65 to 3.6V |
| Pin Count | 20 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | LVC |
| Logic Function | D Type |
| Minimum Supply Voltage | 1.65V |
| Latch Mode | Transparent |
| Number of Bits | 8 |
Key Features
- Operates at a minimum supply voltage of 1.65 V and a maximum of 3.6 V.
- Latch is designed with transparent mode for flexible data storage.
- Features non-inverting polarity with 8-bit data handling capability.
- Surface mount package type for efficient PCB assembly.
- Works reliably in temperature ranges from -40°C to 85°C.
- 20-pin TSSOP package with a compact height of 1.15 mm and length of 6.5 mm.
- Compatible with input LVTTL/TTL logic and outputs LVCMOS levels.
- Complies with no specific standards or automotive certifications.
Product Description
Texas Instruments SN74LVC573APWR is an 8-bit transparent D type latch featuring a 3-state output and housed in a 20-pin TSSOP package suitable for surface mount mounting. It operates efficiently over a wide voltage range of 1.65 to 3.6 volts, allowing low power consumption in modern low-voltage electronic designs.
This latch IC is designed for use in semiconductor logic level circuitry where reliable data storage and output control is required. The non-inverting latch mode enables data transparency with effective high-speed switching performance.
The package dimensions of 6.5 mm length and 1.15 mm height make it ideal for compact PCB applications in industrial, instrumentation, automotive (non-certified), and general electronic equipment. The device supports compatibility with input LVTTL and TTL signals while outputting LVCMOS levels, ensuring flexible integration into mixed-logic environments.
Designed for surface mount technology, the SN74LVC573APWR delivers robust mechanical stability on printed circuit boards, operating reliably across a temperature range from -40°C to 85°C. It provides excellent latch-up immunity exceeding 250 mA per JESD 17 and robust ESD protection per JESD 22, ensuring enhanced resilience in industrial and commercial electronics applications.
Operates at 1.65 V to 3.6 V supply voltage. 8-bit transparent D type latch with 3-state output. Non-inverting output polarity. Surface mount TSSOP 20-pin package. Operating temperature from -40°C to 85°C. Latch-up performance >250 mA JESD 17 compliant.
ESD protection to JESD 22 standards.
This semiconductor latch IC is suitable for industrial control systems, instrumentation, and other electronics manufacturing requiring precision logic components. Browse the electronics & electricals category at EnvMart for comprehensive semiconductor components and logic ICs from reputed manufacturers like Texas Instruments.
Explore more products in our Latch ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a supply voltage range of 1.65 V to 3.6 V.
It operates reliably across a temperature range from -40°C to 85°C.
This unit is an 8-bit transparent D type latch.
The latch features a 3-state output.
It is housed in a 20-pin TSSOP package with dimensions of 6.5 mm in length and 1.15 mm in height.
It is compatible with input LVTTL/TTL logic and outputs LVCMOS levels.
The output polarity is non-inverting.
This latch is designed for surface mount technology.
It operates in a transparent latch mode.
This model features a pin count of 20.
The maximum supply voltage is 3.6 V.
The minimum supply voltage required for operation is 1.65 V.
