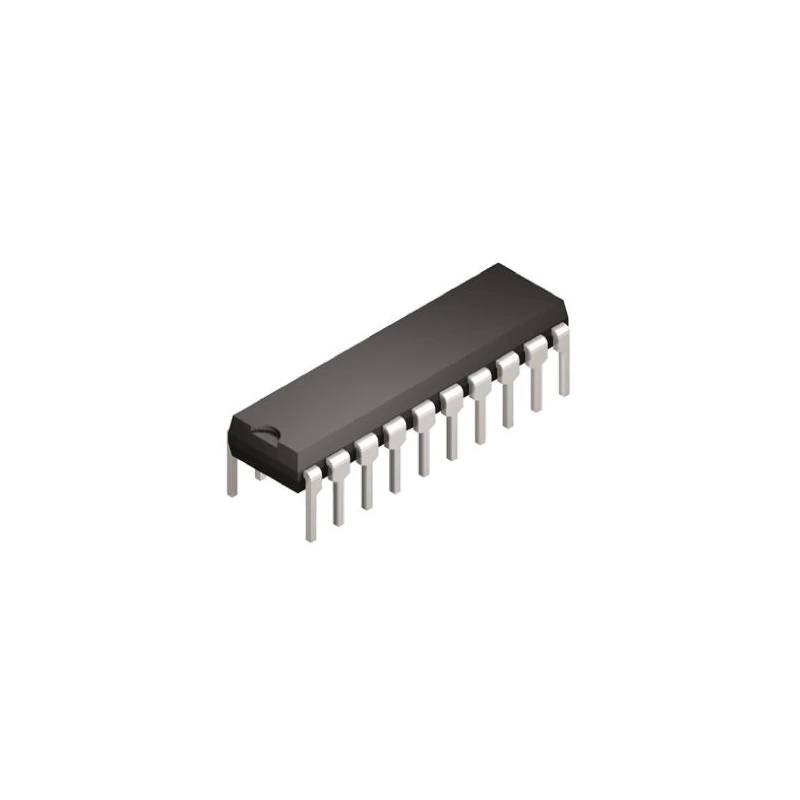

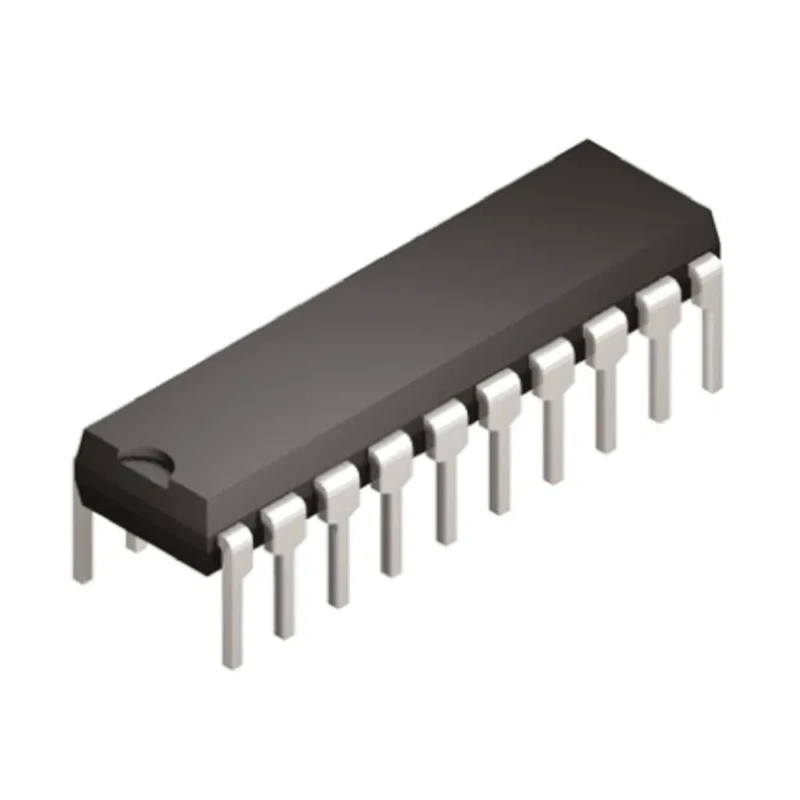

Texas Instruments 8-Bit Transparent Latch 3-State Logic IC, 20-Pin PDIP, Model SN74HC563N

Texas Instruments SN74HC563N is an 8-bit transparent latch logic IC featuring 3-state output and housed in a 20-pin PDIP package. It belongs to the 74HC family of CMOS logic devices that combine high-speed operation with low power consumption, making it ideal for modern digital circuit design.

Designed with D-type latch functionality with inverting polarity, this device supports transparent latch mode allowing real-time data control. It is engineered to operate efficiently over a supply voltage range of 2 to 6 volts, supporting systems requiring flexible power management.

The 20-pin PDIP through-hole mounting package ensures robust mechanical stability and facilitates easy integration on printed circuit boards for prototypes and production designs.

Operating temperature ranges from -40°C to 85°C, the SN74HC563N delivers dependable performance in industrial and commercial environments. Its CMOS compatible input and output configuration ensures seamless interfacing with a variety of logic families.

Industry-standard 74HC family CMOS technology ensures low power consumption and high speed. Supports operating voltage range from 2V to 6V for versatile circuit integration. Features inverting polarity with a D-type latch mode for transparent data storage.

Through-hole mounting with a 20-pin PDIP package for easy PCB assembly. Operates reliably in a wide temperature range from -40°C to 85°C. Compatible with CMOS input and output logic for seamless interfacing. Pin count of 20 facilitates multiple bit-data management in digital electronics.

High integrity 3-state outputs enable bus-oriented applications. Compact dimensions with 24.33mm length and 4.57mm height support space-efficient PCB design.

This latch IC is suitable for use in industrial automation, communication devices, consumer electronics, and laboratory instruments that rely on reliable digital logic components. Integration into microcontroller and digital signal processing circuits is straightforward, improving overall system performance.
