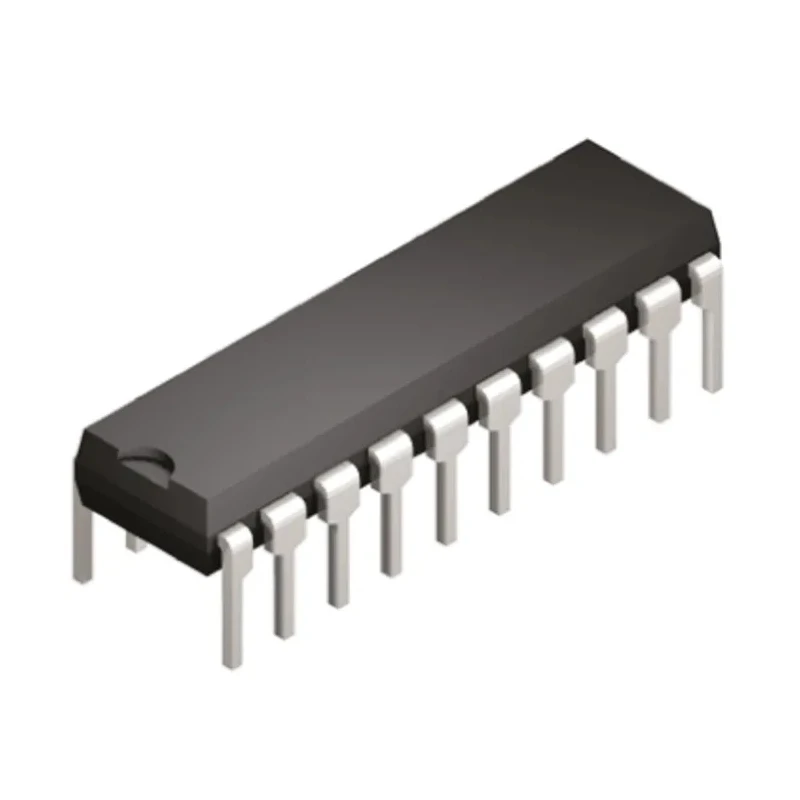

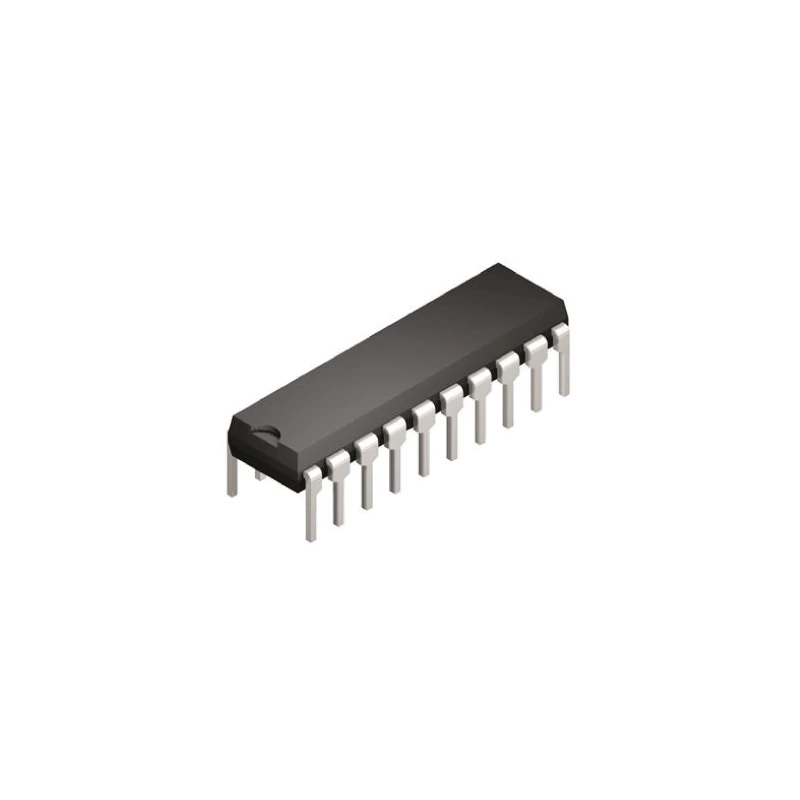

Texas Instruments 8-Bit Transparent D-Type Latch with 3-State Output, 20-Pin PDIP SN74HC563N

Texas Instruments SN74HC563N is an 8-bit transparent D-type latch featuring 3-state output and delivered in a 20-pin PDIP package. Operating within a voltage range of 2V to 6V, this latch uses high-speed CMOS technology to provide superior switching speeds while maintaining low power consumption, suitable for a variety of digital logic applications.

This component supports transparent latch mode with an inverting polarity, making it highly adaptable for bus-oriented and memory-related tasks. It includes 8 data bits and a 3-state output, which facilitates effective interfacing in complex digital circuit designs.

The SN74HC563N is designed for through-hole mounting, with a compact package length of 24.33mm and height of 4.57mm, ensuring ease of integration into printed circuit boards. It operates reliably in an industrial temperature range from -40°C up to 85°C, making it suitable for harsh environments.

With compatibility for CMOS input and output logic levels, this IC supports broad system interoperability. Part of the 74HC series by Texas Instruments, it represents a dependable choice for timing, storage, and data latching applications in industrial, laboratory, electronic manufacturing, and automotive electronics.

Utilizes high-speed CMOS technology for efficient low power operation. Operating voltage ranges from 2V to 6V enabling versatile application. Logic polarity is inverting with transparent latch mode functionality. Features 8-bit data width with 3-state output for bus-oriented applications.

Designed for through-hole mounting in a 20-pin PDIP package. Operating temperature span from -40°C to 85°C ensures industrial robustness. Compatible with CMOS input and CMOS output logic levels. Package dimensions include 24.33mm length and 4.57mm height.

Ideal for digital logic circuit designs requiring latch functions. Series 74HC family component ensuring performance consistency.

This Latch IC is extensively used in electronic instrumentation, automation, data acquisition, and control systems, offering significant advantages in industrial and laboratory instrumentation due to its reliable data handling capabilities.
