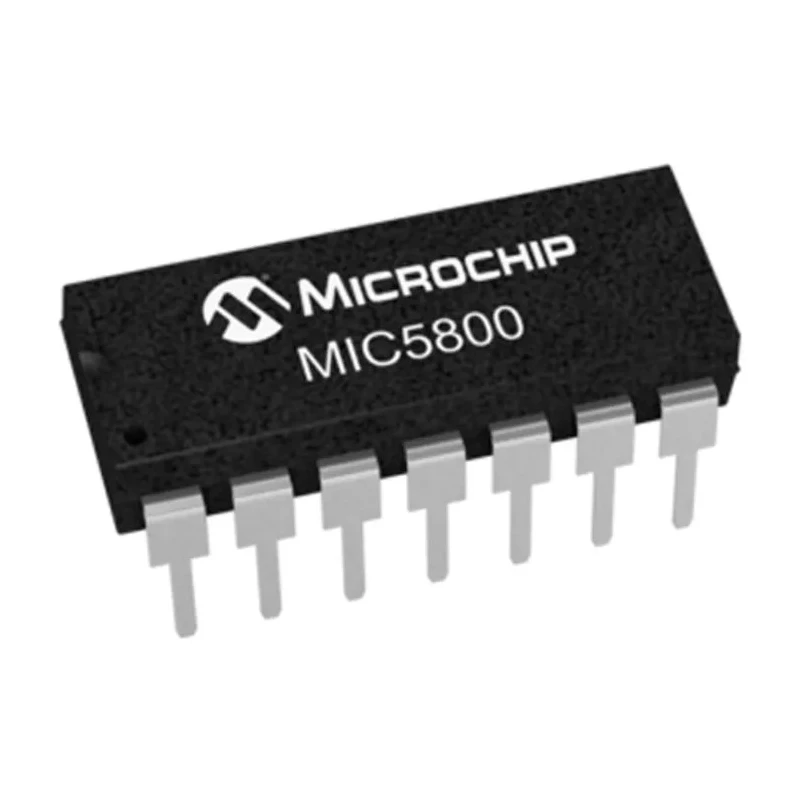

Microchip 4-Bit Transparent Latch Logic IC Bipolar Output 14-Pin PDIP MIC5800YN

Microchip MIC5800YN is a 4-bit transparent latch logic IC designed with bipolar output in a 14-pin PDIP package. It supports through-hole mounting and is engineered to operate reliably within a supply voltage range of -40V to 85V and an operating temperature range from -40°C to 85°C.

This latch IC utilizes D type logic functionality facilitating stable and predictable data storage with transparent latch mode that allows data to pass directly through when active. The bipolar output type provides strong drive capability and excellent switching characteristics, making it well suited for applications with high power or current requirements.

Designed chiefly for use in power latched driver circuits and darlington transistor driver arrays, the MIC5800YN IC is widely applicable in industrial, manufacturing, and electronic control systems where precise and efficient logic signal latching is essential.

The compact PDIP package with 14 pins, measuring 19.05mm in length and 3.3mm in height, optimizes space on printed circuit boards (PCBs) while maintaining robust electrical integrity. This device also includes output transient protection diodes to safeguard against voltage spikes during switching operations.

This device does not hold any formal industry approvals or automotive standards certification, but its versatile specs and rugged operating conditions make it a dependable component for general electronic and power control use cases.

Features a transparent latch mode for immediate data transfer. Incorporates D type logic function suitable for stable data storage. Four bits per device enable compact multi-bit data handling. Bipolar output ensures robust signal integrity and switching performance.

Designed for through-hole mounting providing ease of assembly on PCBs. Operates over a broad supply voltage range from -40V to 85V for versatile applications. Package is PDIP with 14 pins allowing standard footprint integration.

Supports operating temperatures from -40°C up to 85°C ensuring durability in harsh environments. Length dimension is 19.05mm with a height of 3.3mm allowing compact placement. Ideal for use in power latched drivers, darlington transistor drivers, and power controller circuits.
