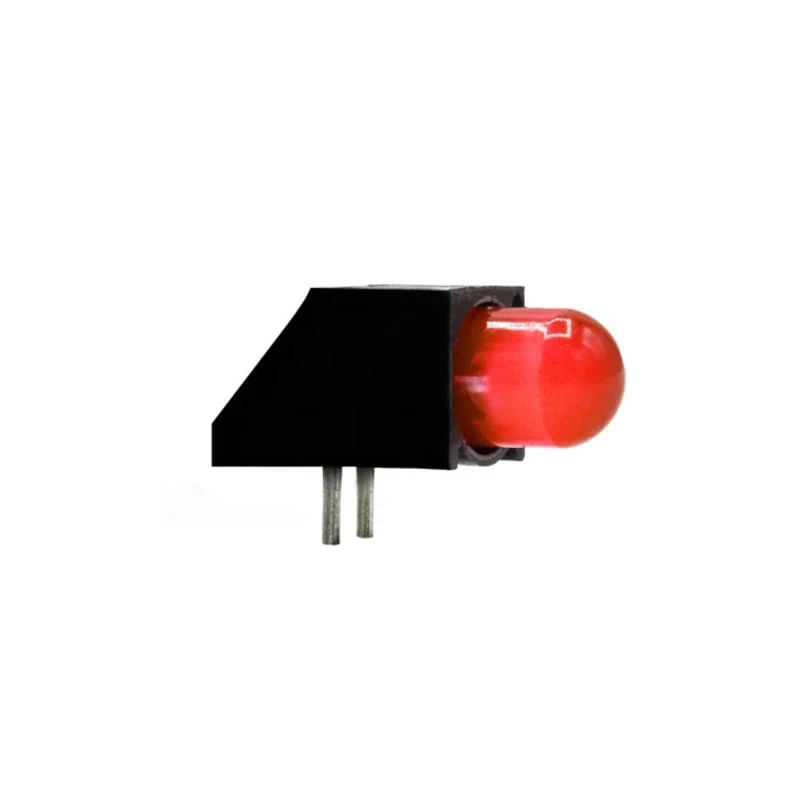

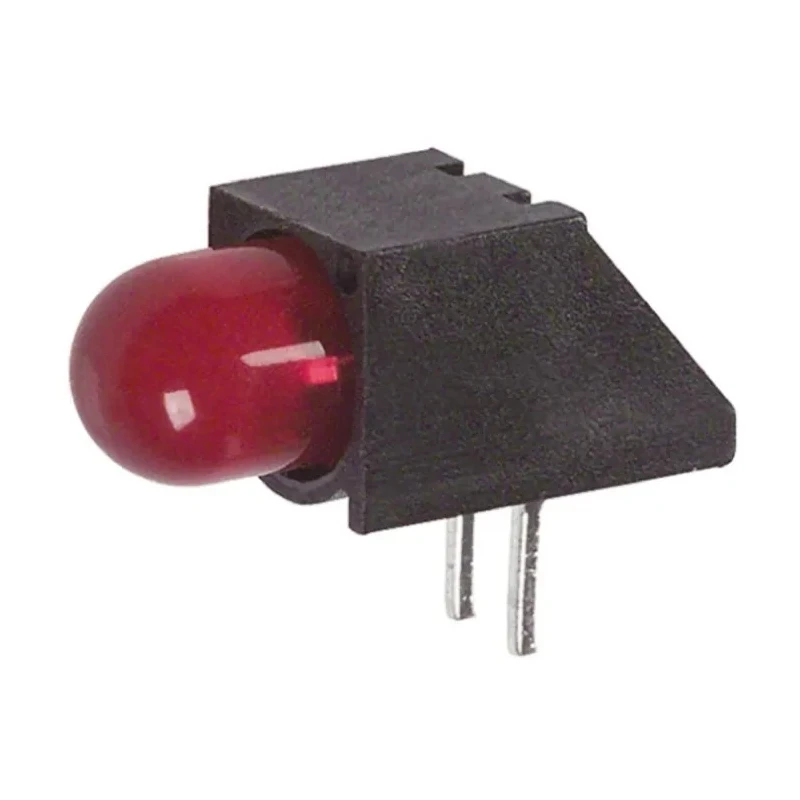

Dialight Red Right Angle PCB LED Indicator 5 mm (T-1 3/4), 1 LED, 7.5V Single Colour 550-0507F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Dialight |
| Length | 13.85mm |
| Model | 550-0507F |
| Series | 550 |
| Number Of Leds | 1 |
| Maximum forward current | 30mA |
| Viewing angle | 60 ° |
| Sub Type | Single Colour |
| Power Dissipation | 80mW |
| Lens Colour | Red |
| Luminous Intensity | 2mcd |
| Standards/Approvals | UL 94 V-0, MIL-STD-202F, RoHS |
| LED Colour | Red |
| Number of Pins | 2 |
| Lens Finish | Diffused |
| Minimum Supply Voltage | 7.5V |
| LED Material | GaAsP, GaP |
| Multicolour/Single Colour | Single Colour |
| LED Orientation | Right Angle |
| LED Size | 5 mm (T-1 3/4) |
| Dialight LED 550-0507Brand | Dialight |
| Bivar H101CRD, Red Right Angle PCB LED Indicator 3mm (T-1), PCB MountBrand | Bivar |
Key Features
- The LED features a diffused red lens for high visibility and low glare.
- It has a luminous intensity of 2 millicandela providing clear indication in electronic applications.
- The indicator has a maximum forward current of 30 mA, suitable for low power circuits.
- The black plastic housing with sloped back and standoffs ensures high contrast and ease of PCB cleaning.
- Compatible with Dialight 550 series dual and quad block mounting options for versatile PCB designs.
- Complies with UL 94 V-0 flammability standard, MIL-STD-202F, and RoHS for reliable and safe usage.
- The unit is a single colour LED designed for indicator applications in electronic equipment.
Product Description
Dialight 550-0507F is a high-quality red right angle PCB LED indicator featuring a 5 mm (T-1 3/4) single colour LED designed for effective indication on circuit boards. Operating at a minimum supply voltage of 7.5 V and a maximum forward current of 30 mA, this LED provides reliable performance for various industrial and electronic applications.
The LED is housed in a rugged black plastic casing with a diffused red lens that reduces glare and enhances visibility. The right angle design facilitates easy PCB mounting and integration in compact assembly layouts. Length of the device is 13.85 mm, with two pins for secure soldering.
This indicator complies with industry standards including UL 94 V-0 for flame retardancy, MIL-STD-202F for environmental durability, and RoHS for environmental safety. The housing includes standoffs that help maintain cleanliness on printed circuit boards, making it ideal for demanding environments.
The dialight 550 series family offers a variety of LED indicators including general purpose, integral resistor, low current, high efficiency, bi-colour and super bright options. The 550-0507F model fits perfectly within this versatile series.
The LED provides 2 millicandela luminous intensity ensuring clear visual indication. Its black plastic body with sloped back aids high contrast display and PCB cleanliness. Right angle LED orientation provides compact installation on printed circuit boards.
Complies with multiple certifications for industrial reliability and environmental compliance. Compatible with dual block and quad block mounting kits for flexible PCB design.
This PCB LED Indicator is commonly used in industrial control panels, instrumentation, electronic devices, and other manufacturing equipment requiring reliable LED status indicators. Dialight's robust design ensures long-term durability even in challenging environments.
Explore related LED indicators and components for enhanced circuit design and manufacturing from EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this model is 2 millicandela, providing clear indication in electronic applications.
The maximum forward current for the 550-0507F is 30 mA, suitable for low power circuits.
This LED requires a minimum supply voltage of 7.5 V to operate effectively.
The length of this unit is 13.85 mm, and it features two pins for secure soldering.
The viewing angle of this model is 60 degrees, allowing for good visibility from various angles.
It features a diffused red lens that enhances visibility and reduces glare.
The 550-0507F complies with UL 94 V-0, MIL-STD-202F, and RoHS standards for safety and environmental compliance.
This unit has a right angle orientation, facilitating easy mounting on printed circuit boards.
The LED is made from Gallium Arsenide Phosphide (GaAsP) and Gallium Phosphide (GaP).
The power dissipation for the Dialight 550-0507F is rated at 80 mW.
This PCB LED indicator is commonly used in industrial control panels, instrumentation, and electronic devices requiring reliable status indicators.
Yes, it is compatible with Dialight 550 series dual and quad block mounting options for versatile PCB designs.
