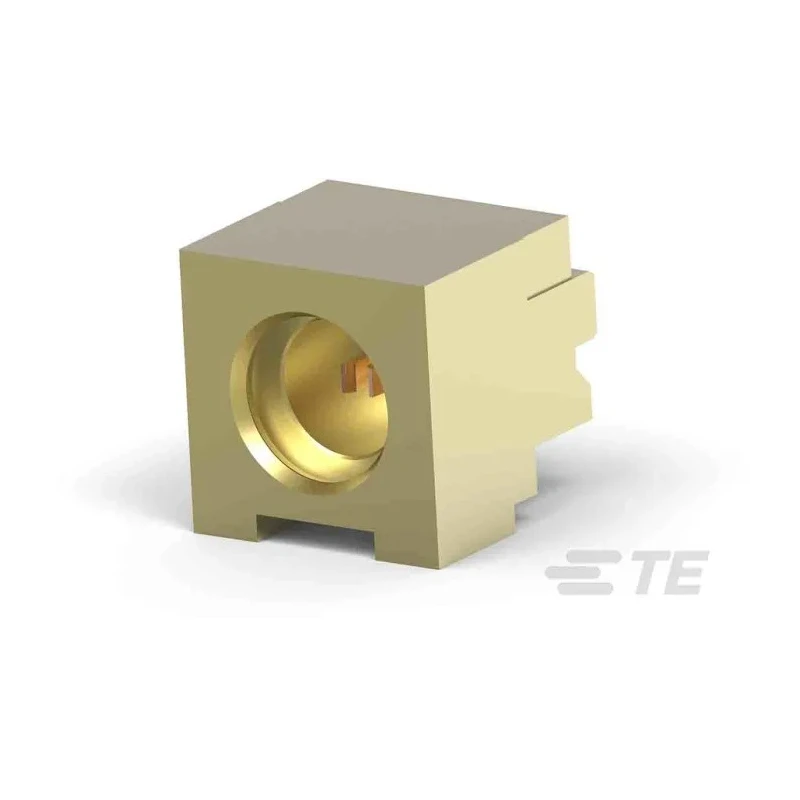

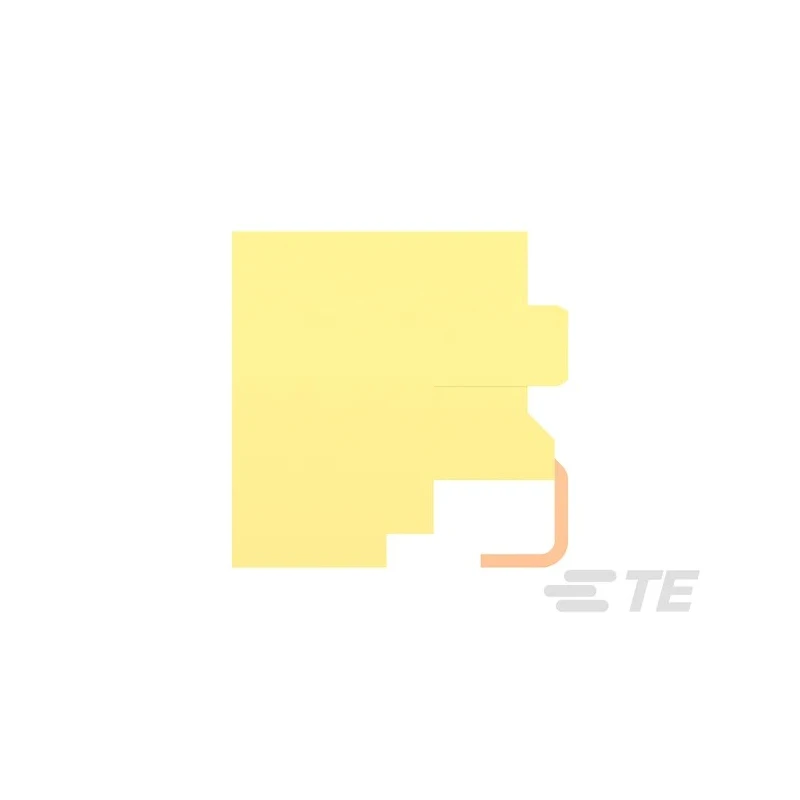

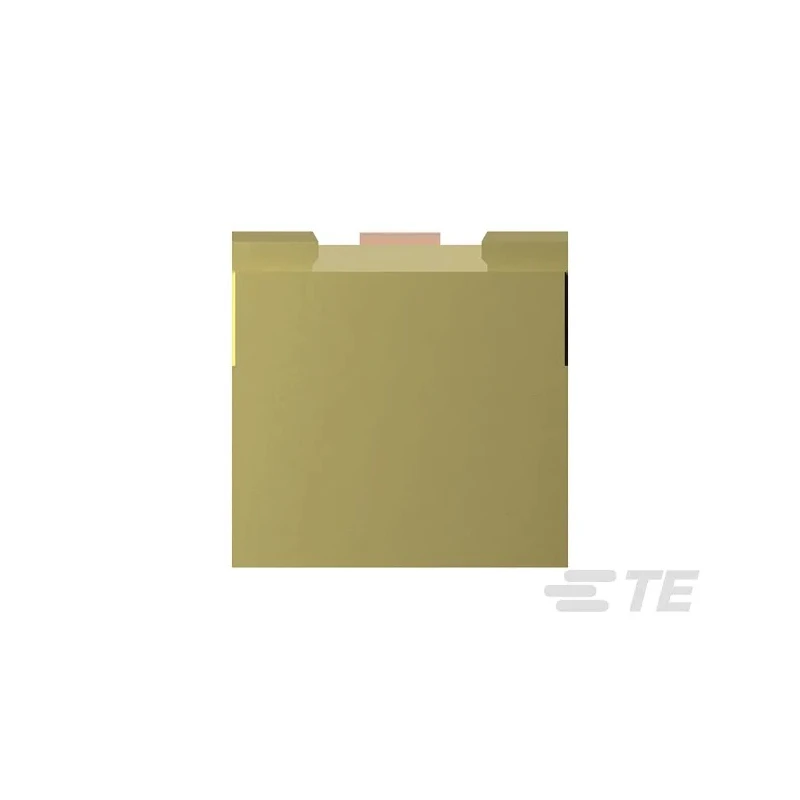

TE Connectivity 6-1460820 Series Coaxial Connector Surface Female MCX 50 Ω Straight Body Solder 6-1460820-1
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Surface |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper Alloy |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Tin |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
Key Features
- Supports operating frequency up to 6 GHz for high-frequency applications.
- Constructed with beryllium copper alloy contacts plated with tin for reliable conductivity.
- Gold plating on the body ensures corrosion resistance and high performance.
- Operates reliably within a temperature range of -55°C to 155°C.
- Designed with normal polarity and female contact gender for compatibility.
- Features a standard size suitable for surface mounting.
- Free from bulkhead mounting to provide easy PCB integration.
- Part of the 6-1460820 series known for robust and precise coaxial connectors.
Product Description
TE Connectivity 6-1460820-1 is a high-quality surface mount coaxial connector engineered for precision and performance in electronic components and RF systems. This female MCX connector features a straight body and is designed to support a nominal impedance of 50 Ω, making it suitable for high-frequency signal transmission up to 6 GHz.
The connector’s body plating in gold enhances corrosion resistance and electrical contact integrity, while the internal contact material is made from beryllium copper alloy plated with tin, offering excellent conductivity and durability. It tolerates a wide operating temperature range from -55°C to 155°C, ensuring stability in diverse industrial and commercial environments.
The solder termination type ensures a secure mechanical and electrical connection, making this connector ideal for surface-mounted PCB applications. Its standard size and normal polarity design contribute to ease of integration within complex electronics assemblies.
This product is widely used in industrial electronics, communication equipment, RF modules, test and measurement devices, and other professional electronic applications where reliable high-frequency connectivity is critical.
TE Connectivity’s 6-1460820 series connectors are known for consistent quality, reliability, and long service life, making this coaxial connector a dependable choice for demanding environments.
Supports operating frequency up to 6 GHz for high-frequency applications. Constructed with beryllium copper alloy contacts plated with tin for reliable conductivity. Gold plating on the body ensures corrosion resistance and high performance.
Operates reliably within a temperature range of -55°C to 155°C. Designed with normal polarity and female contact gender for compatibility. Features a standard size suitable for surface mounting. Free from bulkhead mounting to provide easy PCB integration.
Part of the 6-1460820 series known for robust and precise coaxial connectors. Termination by solder ensures secure and lasting electrical connections. Ideal for audio/video, communication, and RF applications requiring compact connectors.
Explore similar high-quality Coaxial Connectors in the Electronics & Electricals category at EnvMart for your professional and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 6 GHz, making it suitable for high-frequency applications.
This model has a nominal impedance rating of 50 Ω, which is standard for many RF applications.
The internal contacts are made from beryllium copper alloy plated with tin, while the body features gold plating for corrosion resistance.
It operates reliably within a temperature range of -55°C to 155°C, suitable for various industrial environments.
The connector features a solder termination type, ensuring a secure mechanical and electrical connection.
It is designed for surface mounting, allowing for easy integration into printed circuit boards (PCBs).
The connector has a female contact gender, which is compatible with male connectors in RF applications.
Yes, this model is ideal for audio/video, communication, and RF applications requiring compact connectors.
This connector has a straight body orientation, facilitating straightforward installation in electronic assemblies.
The country of origin for this connector is India.
It features a standard size suitable for surface mounting, making it versatile for various applications.
This model is classified as an MCX coaxial connector, which is commonly used in RF systems.
