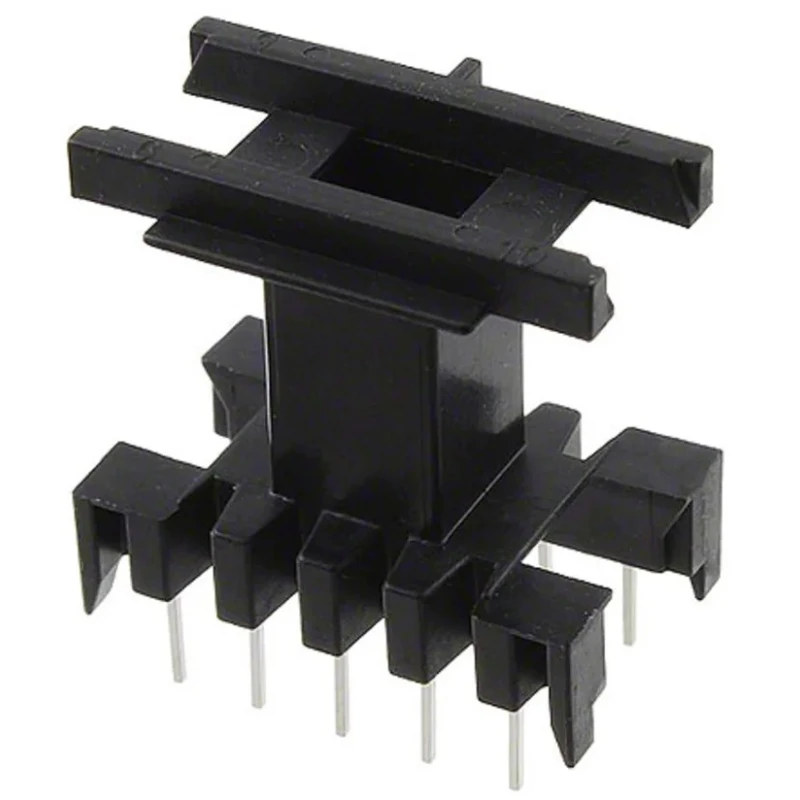

TDK Vertical Coil Former for use with E 20/10/6 Core B66206W1110T001
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TDK |
| Material | Fibreglass Reinforced PolyTerephthalate |
| Length | 22mm |
| Model | B66206W1110T001 |
| Depth | 21.8mm |
| Width | 13.9mm |
| Maximum Operating Temperature | 155°C |
| Accessory Type | Vertical Coil Former |
| For Use With | E 20/10/6 Core |
| Standards/Approvals | RoHS |
| Number of Pins | 10 |
Key Features
- Constructed from fibreglass reinforced polyterephthalate material for durability.
- Compatible specifically with E 20/10/6 transformer cores.
- Features 10 pins to ensure secure electrical connections.
- Maximum operating temperature rated at 155°C for reliable performance.
- Compact dimensions with length 22 mm, width 13.9 mm, and depth 21.8 mm.
- RoHS compliant ensuring environmentally friendly manufacturing standards.
- Manufactured in the Czech Republic with high-quality standards.
Product Description
TDK B66206W1110T001 Vertical Coil Former is engineered for secure and efficient transformer coil assembly compatible with E 20/10/6 cores. This coil former uses fibreglass reinforced polyterephthalate material providing excellent electrical insulation and mechanical strength.
Its compact size of 22 mm length, 13.9 mm width, and 21.8 mm depth allows for precise fitting in transformer assemblies where space optimization is critical. The component supports a maximum operating temperature of 155°C, suitable for high-temperature operational environments.
The coil former includes 10 pins designed to ensure reliable electrical contact within the transformer coil setup. It fully complies with RoHS standards, ensuring minimal environmental impact and adherence to safety regulations.
Manufactured in the Czech Republic, this product reflects TDK's commitment to quality and reliability in transformer accessories for industrial and electronic applications. Constructed from fibreglass reinforced polyterephthalate for durability.
Compatible with E 20/10/6 transformer cores. Includes 10 pins for secure connections. Rated for maximum operating temperature of 155°C. Compact dimensions with length 22 mm, width 13.9 mm, depth 21.8 mm. RoHS compliant. Manufactured in the Czech Republic.
This vertical coil former is ideal for use in industrial electronic transformer assemblies, power supplies, and related applications requiring robust and precise coil forming components. For additional related products or technical specifications, explore the environment-friendly and highly reliable Transformer Accessories in the TDK category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this vertical coil former is rated at 155°C, making it suitable for high-temperature operational environments.
It is constructed from fibreglass reinforced polyterephthalate, providing excellent electrical insulation and mechanical strength.
The dimensions of this vertical coil former are 22 mm in length, 13.9 mm in width, and 21.8 mm in depth.
This model includes 10 pins designed to ensure reliable electrical contact within the transformer coil setup.
Yes, it is RoHS compliant, ensuring that it meets environmentally friendly manufacturing standards.
It is specifically compatible with E 20/10/6 transformer cores.
This product is manufactured in the Czech Republic, reflecting high-quality standards.
This product is classified as a vertical coil former, which is used for transformer coil assembly.
It is intended for use in industrial electronic transformer assemblies, power supplies, and related applications requiring precise coil forming components.
The use of fibreglass reinforced polyterephthalate provides excellent electrical insulation and mechanical strength, enhancing the performance of the coil former.
The inclusion of 10 pins contributes to secure electrical connections within the transformer coil setup.
Its compact size allows for precise fitting in transformer assemblies where space optimization is critical.
