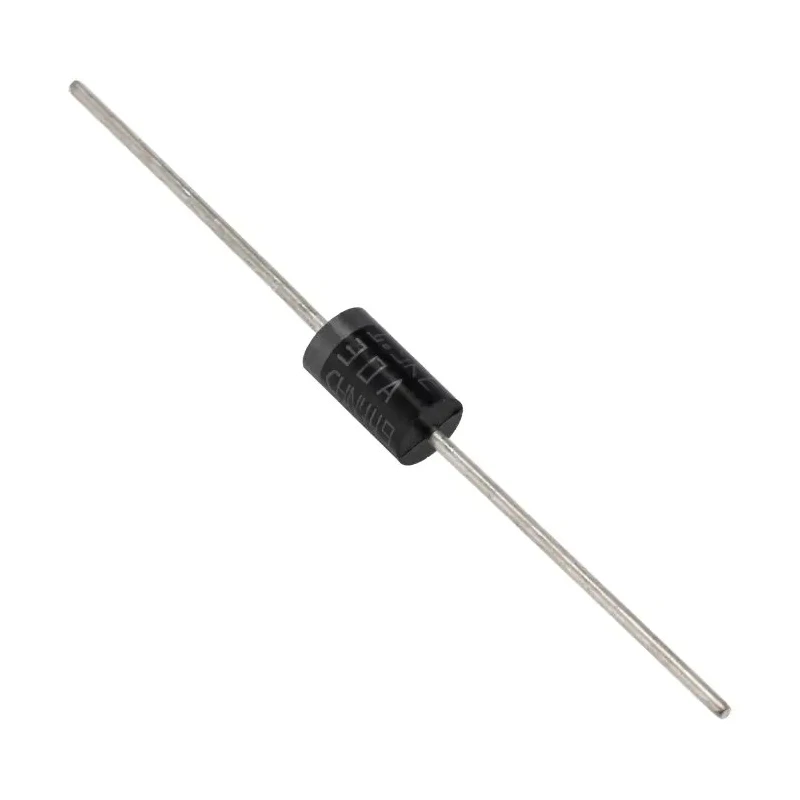

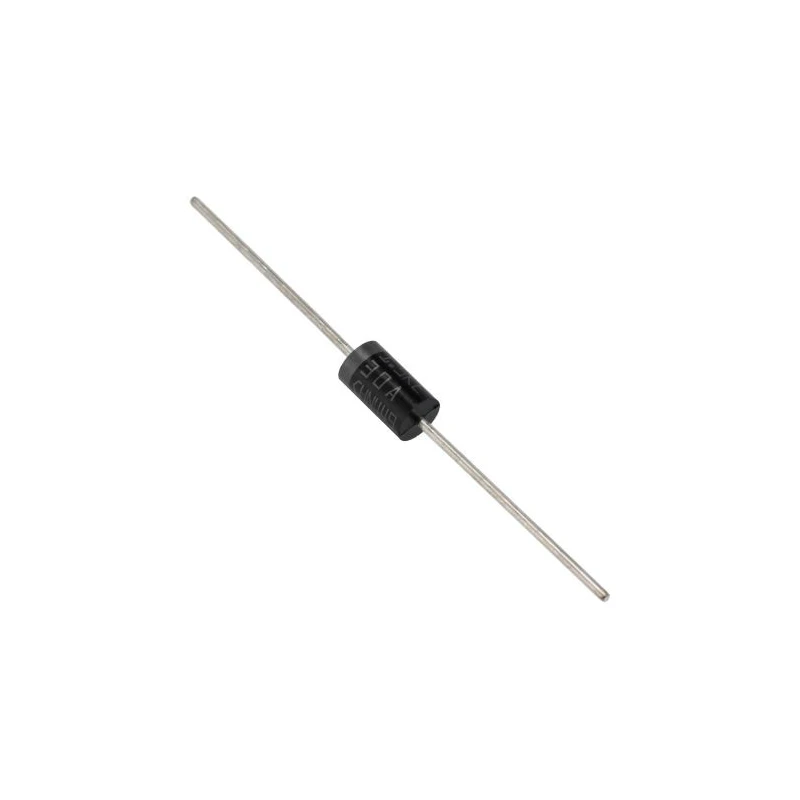

STMicroelectronics Uni-Directional TVS Diode 1.5 kW Peak Pulse Power, 2-Pin DO-201 1.5KE30A
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE30A |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 53.5V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 28.5V |
| Maximum Reverse Stand-off Voltage Vwm | 25.6V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 187A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single-element diode configuration for efficient TVS protection.
- Minimum breakdown voltage of 28.5V ensures protection against voltage surges.
- Maximum reverse standoff voltage is 25.6V, suitable for sensitive electronics.
- Clamping voltage of 53.5V for robust transient voltage clamping.
- Operates within temperature range from -65°C to 175°C for wide environmental suitability.
- Maximum peak pulse current of 187A provides high surge tolerance.
- Two-pin through-hole mount package ensures easy integration in electronic assemblies.
- Does not include ESD protection; intended for transient voltage surge suppression only.
Product Description
The STMicroelectronics 1.5KE30A is a single-element, uni-directional Transient Voltage Suppressor (TVS) diode engineered for protecting sensitive electronic components against transient voltage spikes and surges. Featuring a peak pulse power dissipation of 1.5 kW, this diode is capable of absorbing high transient energy, thereby safeguarding circuits in industrial, automotive, and consumer electronics applications.
Offered in a DO-201 axial through-hole package with two pins, the device measures 9.5 mm in length and 5.3 mm in diameter, making it suitable for PCB-level protection where size constraints exist. Its minimum breakdown voltage is rated at 28.5 V, with a maximum reverse standoff voltage of 25.6 V, ensuring it activates precisely before damaging voltage levels are reached. The clamping voltage of 53.5 V provides effective suppression of voltage transients.
Designed to operate reliably across a temperature range of -65°C to 175°C, it can function in demanding environmental conditions. It handles a maximum peak pulse current of 187 A, making it capable of enduring sudden high-energy surges typically encountered in power regulation and industrial equipment.
This component does not provide ESD protection but serves primarily as a transient voltage suppressor, ideal for industrial power supplies, automotive electronics, communications infrastructure, and other semiconductor protection needs.
Single-element diode configuration for efficient TVS protection. Minimum breakdown voltage of 28.5V ensures protection against voltage surges. Maximum reverse standoff voltage is 25.6V, suitable for sensitive electronics.
Clamping voltage of 53.5V for robust transient voltage clamping. Operates within temperature range from -65°C to 175°C for wide environmental suitability. Maximum peak pulse current of 187A provides high surge tolerance.
Package dimensions: length 9.5mm, diameter 5.3mm, width 5.3mm for compact PCB footprint. Two-pin through-hole mount package ensures easy integration in electronic assemblies. Does not include ESD protection; intended for transient voltage surge suppression only.
Designed to the 1.5KE series standard by STMicroelectronics for quality and reliability.
This uni-directional TVS Diode is ideal for transient voltage suppression in industrial, automotive, communication, and consumer electronic applications. Explore our full range of STMicroelectronics protection devices at EnvMart for advanced semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STMicroelectronics 1.5KE30A has a peak pulse power dissipation of 1.5 kW, allowing it to absorb high transient energy effectively.
The minimum breakdown voltage of this diode is rated at 28.5 V, ensuring it activates before damaging voltage levels are reached.
The maximum reverse standoff voltage is 25.6 V, making it suitable for protecting sensitive electronics.
The clamping voltage for this model is 53.5 V, providing effective suppression of voltage transients.
This diode can handle a maximum peak pulse current of 187 A, which allows it to endure sudden high-energy surges.
It operates reliably within a temperature range of -65°C to 175°C, suitable for demanding environmental conditions.
The 1.5KE30A is offered in a DO-201 axial through-hole package, which is designed for easy integration into electronic assemblies.
This model measures 9.5 mm in length and has a diameter of 5.3 mm, making it compact for PCB-level protection.
No, this diode does not provide ESD protection; it is intended solely for transient voltage surge suppression.
It features a single-element diode configuration, which is efficient for TVS protection applications.
The maximum reverse leakage current for the 1.5KE30A is 1 μA, which indicates low leakage during operation.
This diode is ideal for use in industrial power supplies, automotive electronics, communications infrastructure, and other semiconductor protection needs.
