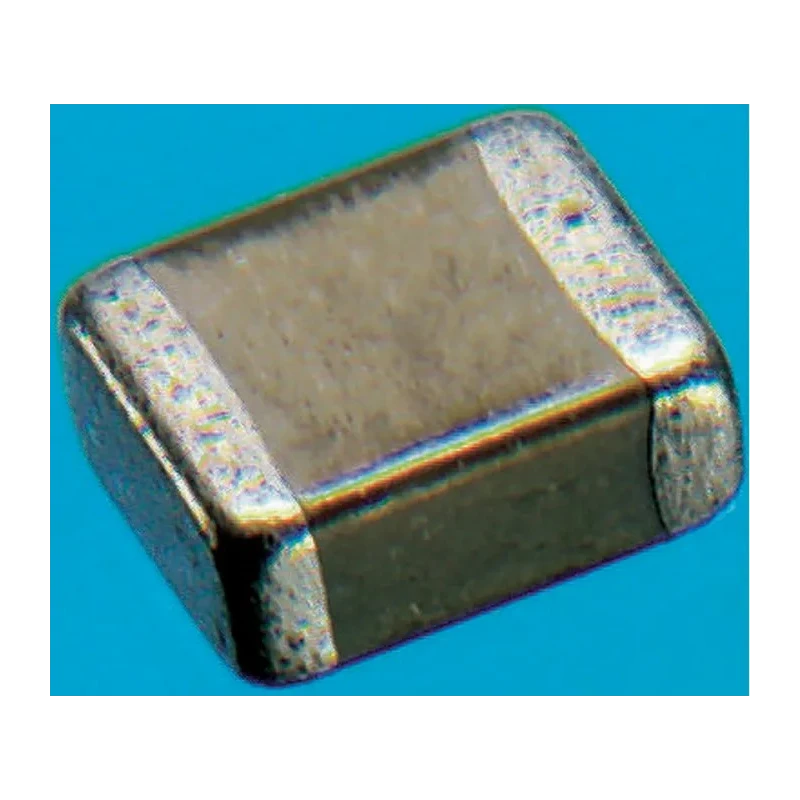

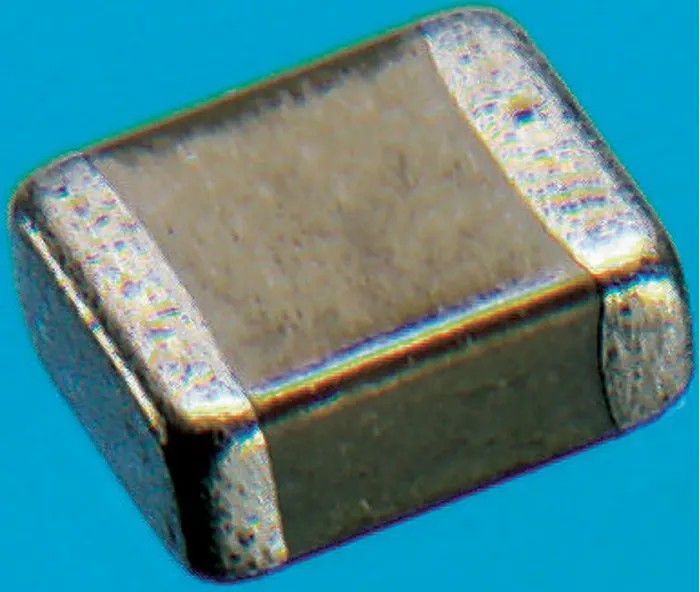

KYOCERA AVX 10 nF 500V DC ±10% Multilayer Ceramic Capacitor Surface Mount 12107C103KAT2A

KYOCERA AVX 12107C103KAT2A is a high voltage 10 nF Multilayer Ceramic Capacitor designed for surface mount applications. It supports a DC voltage rating of 500 V and maintains a tolerance of ±10%.

This capacitor employs an X7R dielectric material ensuring stable capacitance performance across a wide temperature range from -55°C up to 125°C. Its 1210 package size measures 3.2mm in length, 2.5mm in width, and 1.27mm in height, making it compact yet capable of handling high voltage stresses.

The device is characterized by low Equivalent Series Resistance (ESR) and low leakage current, which is critical for high frequency performance in industrial electronic systems.

Common industrial and commercial applications include use in snubber circuits of high frequency power converters, resonators for switched mode power supplies (SMPS), and as high voltage coupling or DC blocking components.

The capacitor comes with surface mount terminations and is packaged on reels, facilitating automated insertion into electronic assemblies, thus enhancing production efficiency. This product does not list any automotive certifications and adheres to standard manufacturing approvals.

This capacitor uses an X7R dielectric suitable for high voltage systems. Maintains low leakage and low ESR at high frequencies. Operates from -55°C to 125°C for extended temperature resilience. Perfect for power converter snubbers, SMPS resonators, and coupling applications.

Supplied on reels for streamlined surface mount assembly processes. Compact 1210 package with precise dimensions maximizes PCB space utilization. No automotive standard compliance is applicable for this model. Explore the KYOCERA AVX capacitors and related components at EnvMart for reliable and high-performance electronic component solutions.
