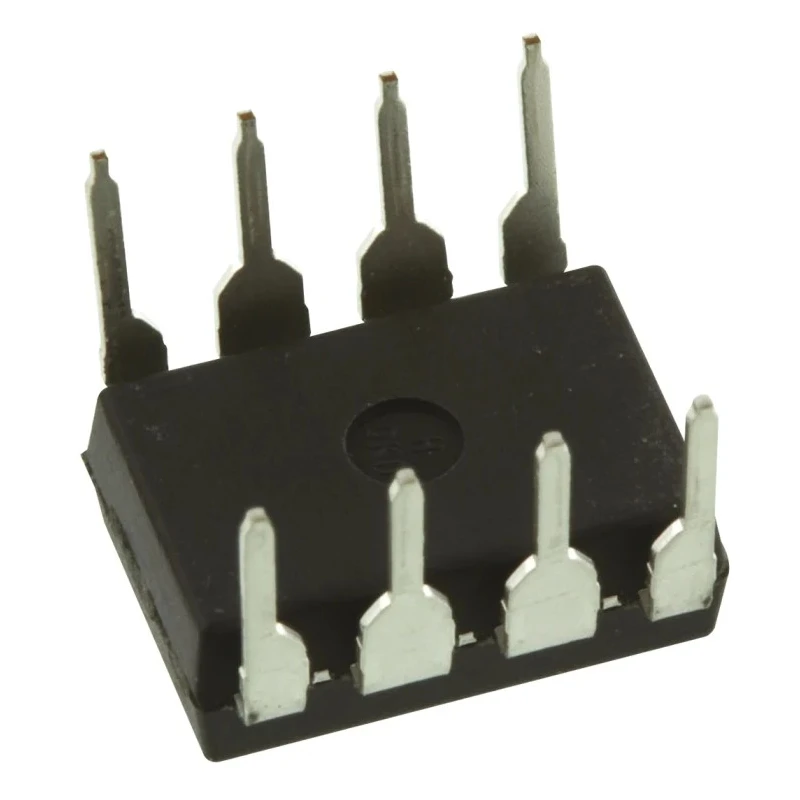

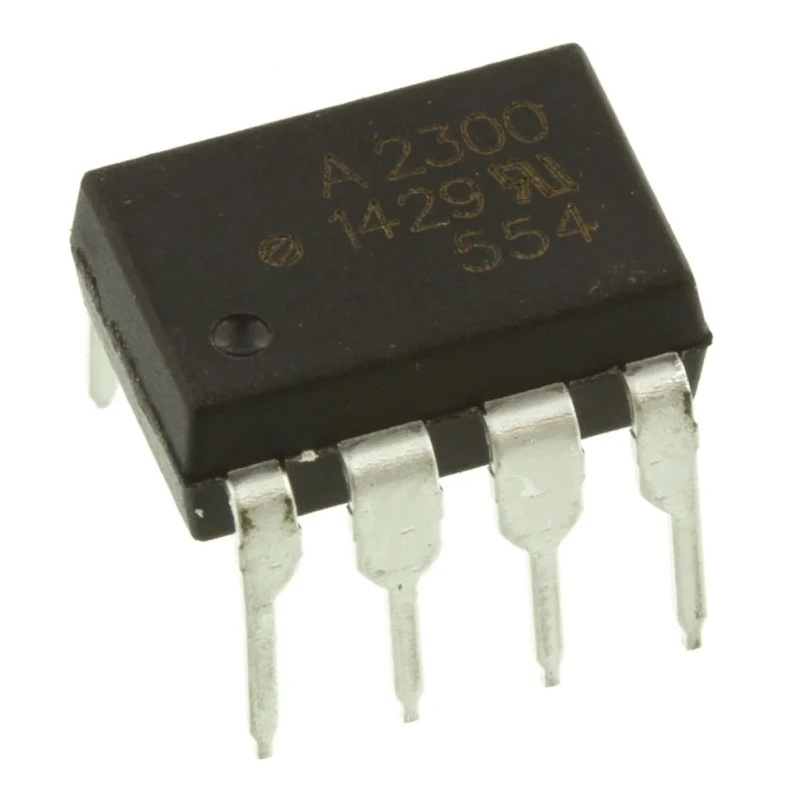

Broadcom DC Input Optocoupler, Through Hole, 8-Pin DIP HCPL-2300-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-2300-000E |
| Mount Type | Through Hole |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 1mA |
| Number Of Channels | 1 |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-5, CSA, UL 1577 |
| Maximum Forward Voltage | 1.65V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 40ns |
| Typical Fall Time | 20ns |
| Isolation Voltage | 3750V ac |
Key Features
- The device operates with a maximum forward voltage of 1.65V and a maximum input current of 1mA.
- It features a logic output with typical rise and fall times of 40ns and 20ns respectively.
- The optocoupler offers a high isolation voltage of 3750V ac for safety and noise immunity.
- Designed to operate in temperatures ranging from -40°C to 85°C, ensuring wide environmental compatibility.
- Complies with IEC/EN/DIN EN 60747-5-5, CSA, and UL 1577 standards for quality and safety.
- Its 8-pin DIP through-hole package supports easy integration into printed circuit boards.
- Single channel optocoupler ideal for industrial and commercial electronic isolation applications.
Product Description
Broadcom HCPL-2300-000E is a DC input optocoupler designed for efficient and safe signal isolation in various electronic systems. Featuring a through-hole 8-pin DIP package, it facilitates straightforward mounting on printed circuit boards. This optocoupler supports a single channel and operates with a maximum forward voltage of 1.65V and input current up to 1mA, making it compatible with low-power electronic designs.
The device provides a highly reliable logic output signal with fast switching capabilities, showcasing typical rise and fall times of 40ns and 20ns respectively. Its robust isolation voltage rating of 3750V ac ensures protection against high voltage spikes and electrical noise, which is critical in industrial environments.
Built to withstand a wide temperature range from -40°C to 85°C, this optocoupler is suitable for harsh operating conditions, including industrial, manufacturing, and automation applications. It adheres to stringent international standards including IEC/EN/DIN EN 60747-5-5, CSA, and UL 1577, affirming its quality and reliability.
The HCPL-2300-000E series is widely used in electronic isolation circuits, protecting sensitive electronics from high voltage surges and enabling signal transmission without direct electrical connection. Typical applications include power supply feedback, data communication isolation, and microprocessor input isolation.
The device operates with a maximum forward voltage of 1.65V and a maximum input current of 1mA. Features logic output with typical rise time of 40ns and fall time of 20ns. Provides an isolation voltage rating of 3750V ac for enhanced safety.
Operates over a temperature range from -40°C to 85°C. Packaged in an 8-pin DIP through-hole format for easy PCB mounting. Complies with IEC/EN/DIN EN 60747-5-5, CSA, and UL 1577 standards. Ideal for industrial, laboratory, manufacturing, and commercial electronic isolation applications.
Explore the wide range of Broadcom Optocouplers at EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this model is 1.65V.
It has an isolation voltage rating of 3750V ac, providing enhanced safety against high voltage spikes.
The maximum input current for this optocoupler is 1mA.
The typical rise time is 40ns and the fall time is 20ns.
It operates effectively in temperatures ranging from -40°C to 85°C.
This optocoupler is packaged in an 8-pin DIP through-hole format for easy PCB mounting.
It complies with IEC/EN/DIN EN 60747-5-5, CSA, and UL 1577 standards.
This model supports a single channel.
The input current type is DC.
It is suitable for industrial, laboratory, manufacturing, and commercial electronic isolation applications.
The country of origin for this product is India.
This optocoupler belongs to the HCPL series.
