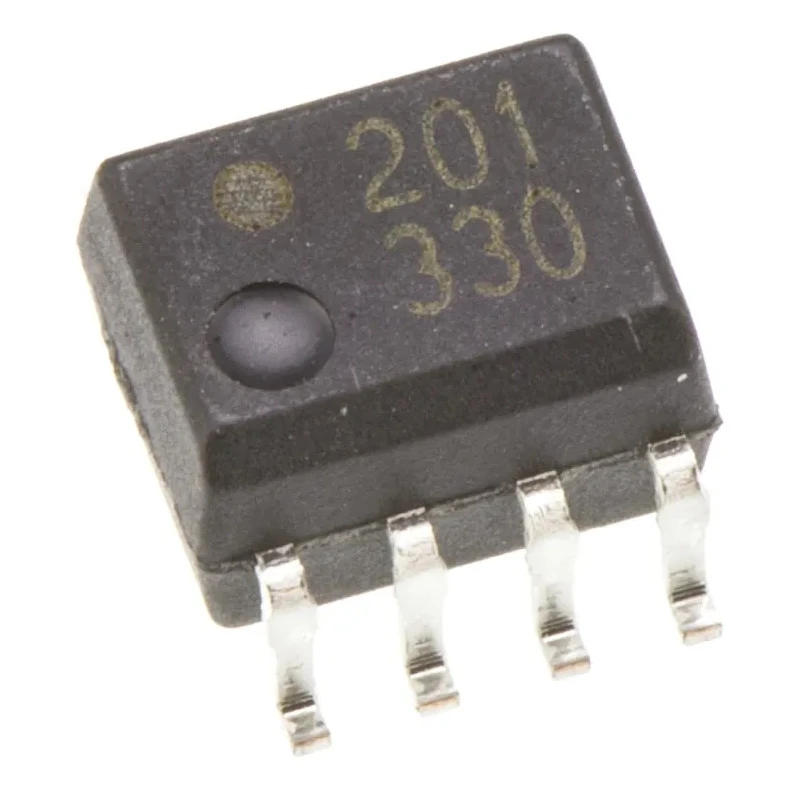

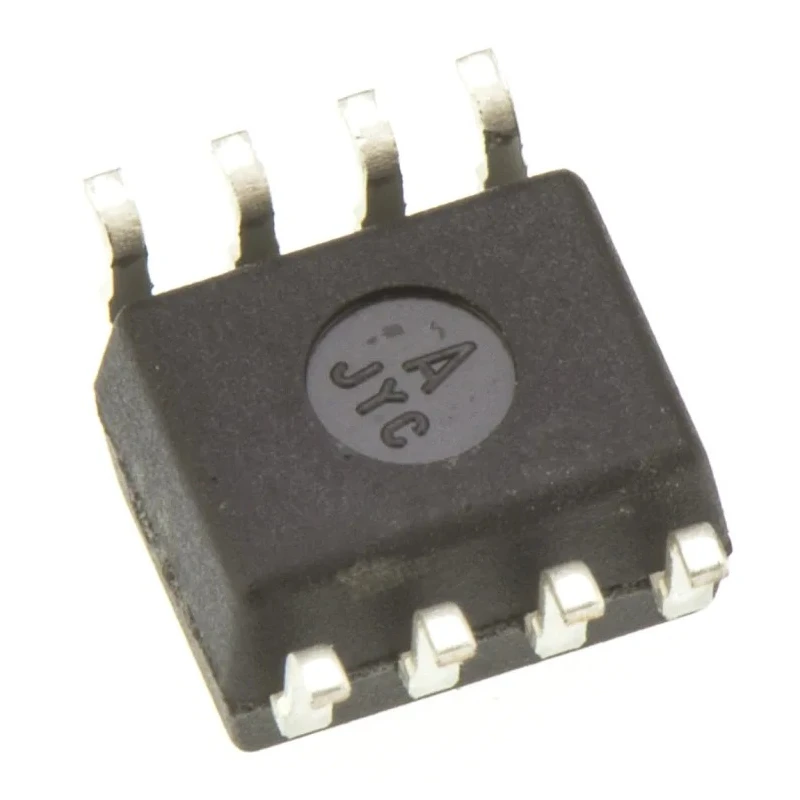

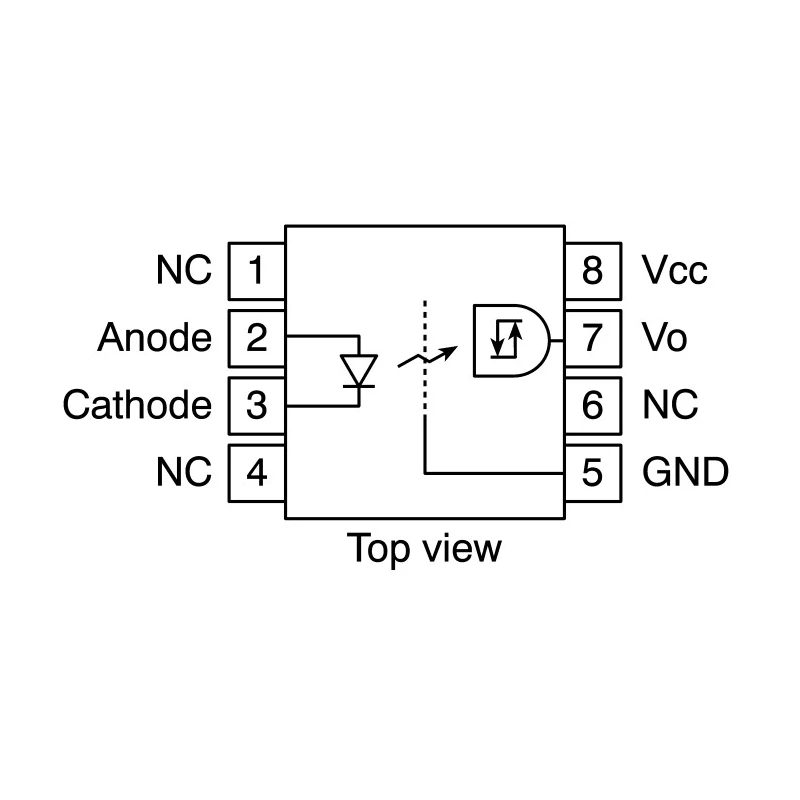

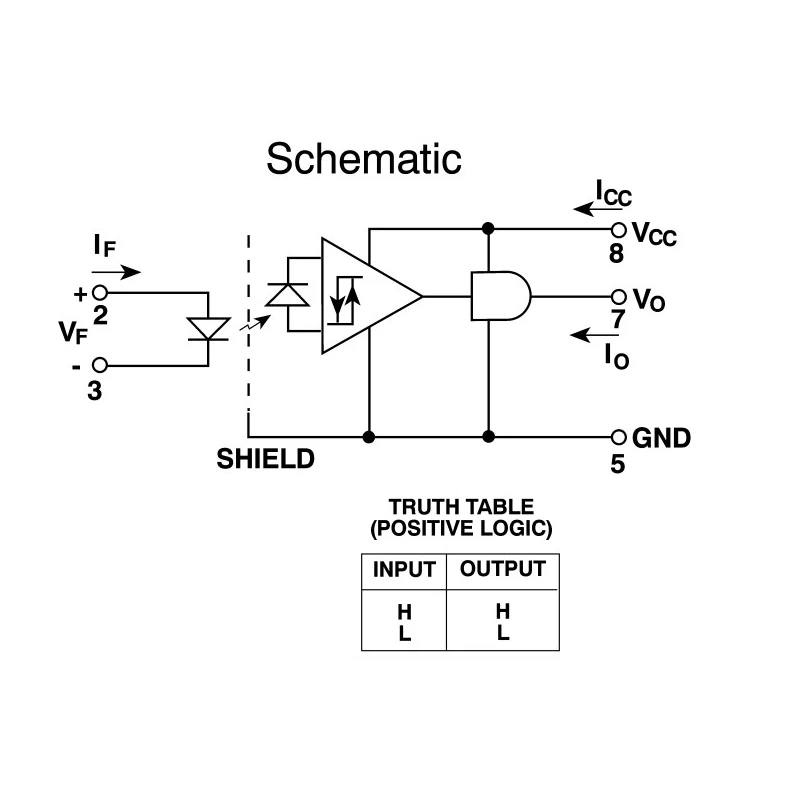

Broadcom DC Input Optocoupler Surface Mount 8-Pin SOIC HCPL-0201-000E
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Broadcom |
| Model | HCPL-0201-000E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 10mA |
| Number Of Channels | 1 |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-2, UL1577, CSA |
| Maximum Forward Voltage | 1.85V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 30ns |
| Typical Fall Time | 7ns |
| Isolation Voltage | 3750V ac |
| Avago, HCPL-0201 DC Input Optocoupler, Surface Mount, 8-Pin SOICBrand | Avago Technologies |
| Broadcom HCPL-2201-000E Optocoupler, Through Hole, 8-Pin DIPBrand | Broadcom |
Key Features
- Offers 3750V AC isolation voltage for circuit protection.
- Maximum forward voltage is 1.85V to minimize LED drive requirements.
- Supports DC input current up to 10mA for low drive control circuits.
- Features fast digital transmission with 30ns rise time and 7ns fall time.
- Operates reliably from -40°C to 85°C across industrial temperature range.
- Surface mount SOIC package suitable for automated PCB assembly.
- Supplied on tape and reel for volume manufacturing.
- Designed to isolate microcontroller logic from power stages.
Product Description
Broadcom HCPL-0201-000E DC Input Optocoupler is a surface-mount semiconductor device designed for industrial electronic applications requiring galvanic isolation and fast digital signal interface. Packaged in an 8-pin SOIC format, it provides a single channel of isolation between input and output circuits.
Operating at a maximum forward voltage of 1.85V, the device supports a maximum input current of 10mA DC, making it suitable for low-drive control applications. Its electrical isolation capability of 3750V AC ensures high protection levels, critical in safeguarding sensitive electronics from high-voltage transients.
The optocoupler features fast switching characteristics with typical rise and fall times of 30ns and 7ns respectively, enabling rapid digital signal transmission and reducing latency in signal processing. It operates reliably across a broad temperature range from -40°C to 85°C, covering most industrial environments.
Broadcom's HCPL series device is compliant with international safety and quality standards including IEC/EN/DIN EN 60747-5-2, UL1577, and CSA, providing industry-trusted certification for electronic system designers.
This component is ideal for isolating microcontroller logic from power or noisy sections of circuits, level shifting digital signals, and protecting measurement or control circuits in industrial, automotive, and commercial electronics.
Offers 3750V AC isolation voltage for circuit protection. Maximum forward voltage is 1.85V to minimize LED drive requirements. Supports DC input current up to 10mA for low drive control circuits. Features fast digital transmission with 30ns rise time and 7ns fall time.
Operates reliably from -40°C to 85°C across industrial temperature range. Surface mount SOIC package suitable for automated PCB assembly. Supplied on tape and reel for volume manufacturing. Designed to isolate microcontroller logic from power stages.
Provides signal isolation to protect measurement circuitry from high-voltage transients. Complies with IEC/EN/DIN EN 60747-5-2, UL1577, and CSA standards. Explore more industrial electronic components and Optocouplers at EnvMart for reliable system design and manufacturing efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HCPL-0201-000E offers an isolation voltage of 3750V AC, providing significant protection for circuit applications.
This model supports a maximum input current of 10mA, making it suitable for low-drive control circuits.
The optocoupler features a typical rise time of 30ns and a fall time of 7ns, enabling fast digital signal transmission.
It operates reliably within a temperature range of -40°C to 85°C, suitable for most industrial environments.
This optocoupler is supplied on tape and reel, which is ideal for volume manufacturing and automated PCB assembly.
This device provides a single channel of isolation between input and output circuits.
The maximum forward voltage for the HCPL-0201-000E is 1.85V, which helps minimize LED drive requirements.
It complies with IEC/EN/DIN EN 60747-5-2, UL1577, and CSA standards, ensuring industry-trusted certification.
This optocoupler features a surface mount design, suitable for various electronic applications.
It is designed to isolate microcontroller logic from power stages, protecting sensitive electronics from high-voltage transients.
With fast switching characteristics, it enables rapid digital signal transmission, reducing latency in signal processing.
The HCPL-0201-000E is manufactured in the Philippines.
