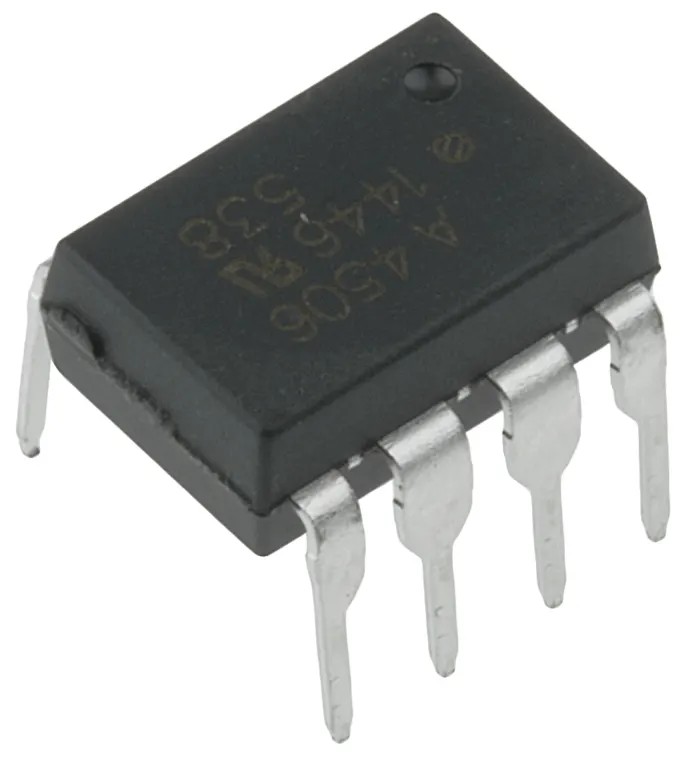

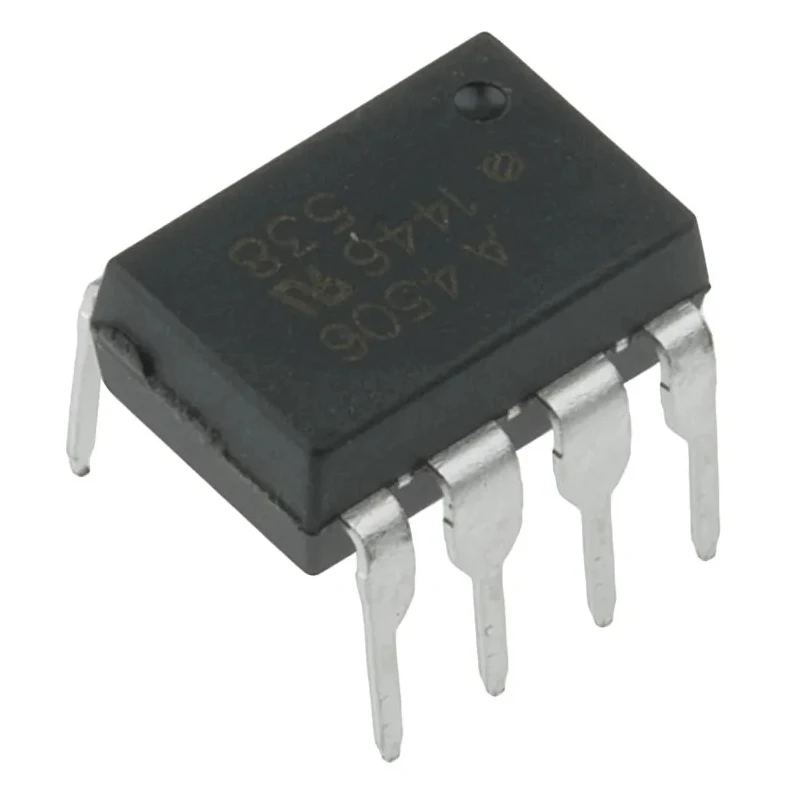

Broadcom DC Input Through Hole Optocoupler, 8-Pin PDIP Package HCPL-4506-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-4506-000E |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | HCPL |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 230mA |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS, IEC/EN/DIN EN 60747-5-2, CSA, UL |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 5ns |
| Maximum Current Transfer Ratio | 90% |
| Minimum Current Transfer Ratio | 44% |
| Opto-isolator,HCPL4506 2500Vac/25mA DIP8Brand | Avago Technologies |
Key Features
- Features a maximum forward voltage of 1.8V for low power input.
- Supports a maximum input current of 230mA ensuring robust operation.
- Typical rise and fall times are fast at 5ns each for rapid signal response.
- Operating temperature range from -40°C to 100°C suited for various industrial environments.
- Offers high maximum current transfer ratio of 90% ensuring signal fidelity.
- Compliant with RoHS and multiple international safety standards including IEC/EN/DIN EN 60747-5-2, CSA, and UL.
- Designed with DC input current type and logic output for integration in intelligent power modules.
Product Description
Broadcom HCPL-4506-000E is a DC input optocoupler housed in an 8-pin PDIP through hole mount package, ideal for use in industrial electronic applications requiring reliable electrical isolation.
This optocoupler offers a robust maximum forward voltage of 1.8V and can handle input currents up to 230mA, making it suitable for demanding signal isolation tasks.
Its fast typical rise and fall times of 5ns ensure efficient and timely switching performance. The device operates effectively across a wide temperature range from -40°C to 100°C, catering to harsh industrial and automotive environments.
The device features a high maximum current transfer ratio of 90% and a minimum ratio of 44%, guaranteeing dependable signal integrity for intelligent power module interfaces and other applications.
Broadcom's HCPL-4506-000E complies with RoHS requirements and adheres to international standards including IEC/EN/DIN EN 60747-5-2, CSA, and UL, emphasizing its reliability and safety.
Typical uses include industrial automation, power module isolation, and electronic control systems where high isolation and fast signal transfer are essential. Features a maximum forward voltage of 1.8V for low power input.
Supports a maximum input current of 230mA ensuring robust operation. Typical rise and fall times are fast at 5ns each for rapid signal response. Operating temperature range from -40°C to 100°C suited for various industrial environments.
Offers high maximum current transfer ratio of 90% ensuring signal fidelity. Compliant with RoHS and multiple international safety standards including IEC/EN/DIN EN 60747-5-2, CSA, and UL. Designed with DC input current type and logic output for integration in intelligent power modules.
Explore more products in the Optocoupler category at EnvMart for a wide range of electronics components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 230mA, ensuring robust operation in various applications.
It operates effectively within a temperature range from -40°C to 100°C, making it suitable for harsh industrial environments.
The maximum forward voltage for this unit is 1.8V, which allows for low power input.
The typical rise and fall times are both 5ns, providing rapid signal response for efficient performance.
This model has a high maximum current transfer ratio of 90%, ensuring signal fidelity, with a minimum ratio of 44%.
It is housed in an 8-pin PDIP through hole mount package, suitable for various electronic applications.
Yes, it complies with RoHS and multiple international safety standards including IEC/EN/DIN EN 60747-5-2, CSA, and UL.
This optocoupler features a single channel configuration, making it suitable for various isolation tasks.
The mount type for this model is through hole, which facilitates easy integration into electronic circuits.
The country of origin for this optocoupler is India.
It is suitable for applications such as industrial automation, power module isolation, and electronic control systems where high isolation and fast signal transfer are essential.
This model is available in tape and reel packaging, which is convenient for automated assembly processes.
