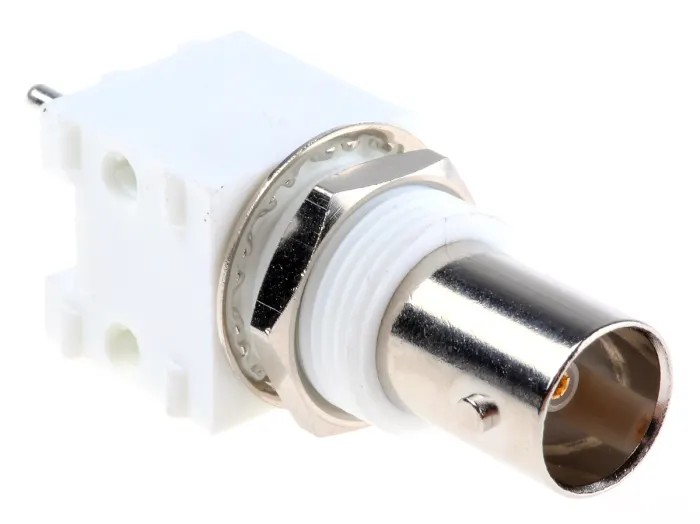

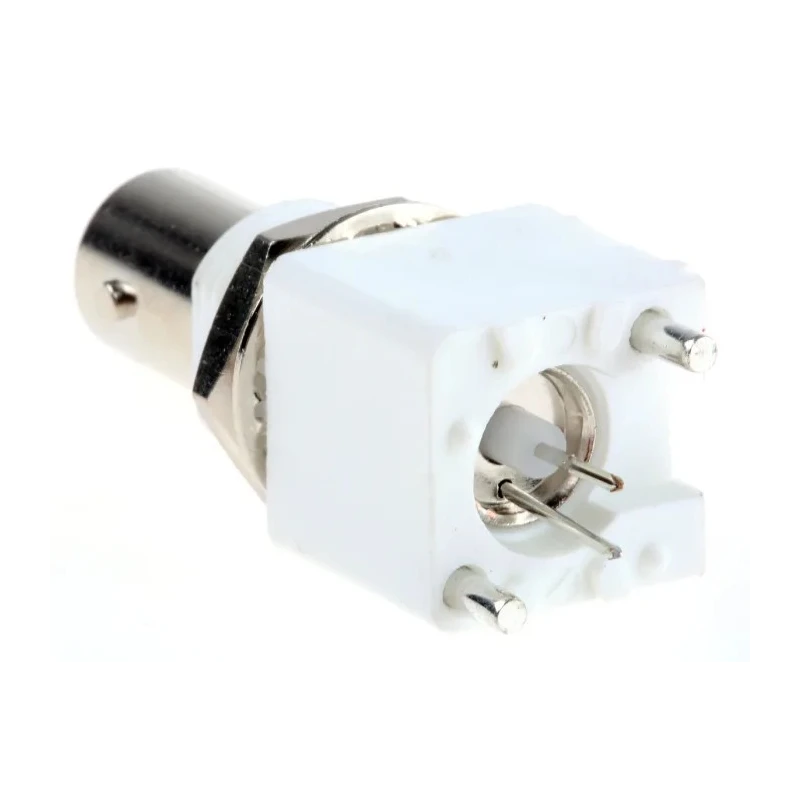

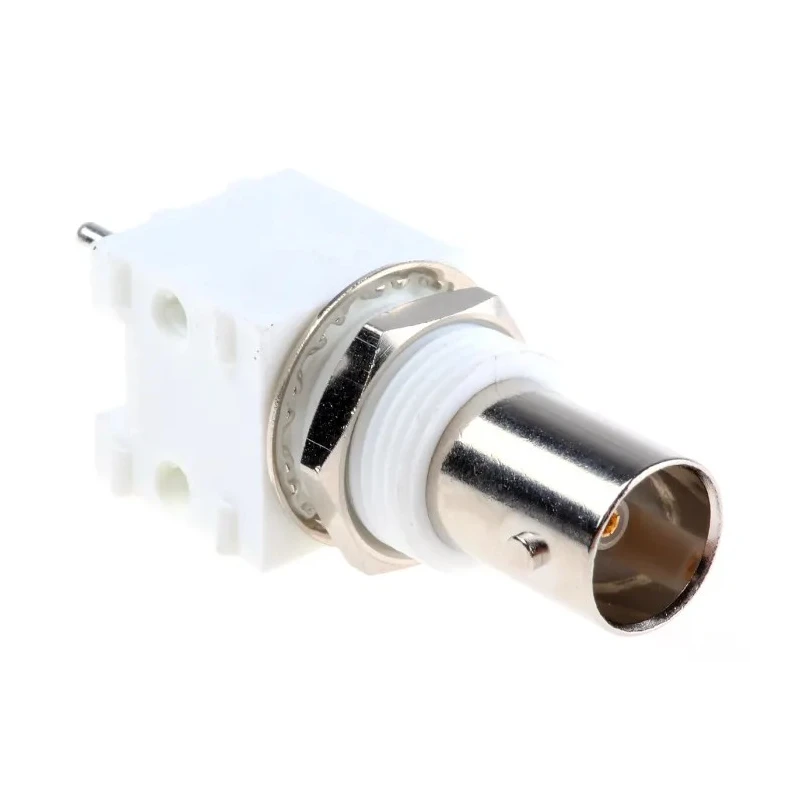

RS PRO Coaxial Connector PCB Female BNC 75 Ω Straight Body Through Hole 546-5109
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-5109 |
| Mount Type | PCB |
| Operating Frequency | 1GHz |
| Contact Material | Phosphor Bronze |
| Series | RS PRO |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| RS PRO, jack PCB Mount, 75Ω, Straight BodyBrand | RS PRO |
Key Features
- High-quality Nickel plated Zinc alloy body ensures durability.
- Gold plated Phosphor Bronze contact for excellent conductivity.
- Designed for operating frequencies up to 1 GHz.
- Features secure bayonet coupling typical of BNC connectors.
- PTFE insulation enhances reliability and performance.
- Suitable for use in RF signal applications including medical and test equipment.
- Operating temperature range from -65°C to 85°C.
- Bulkhead PCB mount with female connector gender and normal polarity.
Product Description
RS PRO 546-5109 is a premium Coaxial Connector PCB Female BNC designed for reliable and durable PCB through-hole mounting applications. It features a robust Nickel plated Zinc alloy straight body and a bayonet coupling for secure connections. The centre pin uses Gold plated Phosphor Bronze contact material ensuring excellent electrical conductivity and longevity.
This coaxial connector supports an impedance of 75 Ω and operates effectively up to 1 GHz, making it ideal for RF signal transmission in a wide variety of industries including broadcasting, telecommunications, medical equipment, satellite communication, and CCTV systems. Its PTFE insulation further guarantees signal integrity and device reliability.
The connector is constructed for harsh environments with an operating temperature range spanning from -65°C to 85°C, ensuring performance stability in demanding conditions. It features a bulkhead PCB mount with through-hole solder termination for secure and efficient installation on standard PCBs.
Nickel plated Zinc alloy body provides mechanical strength and corrosion resistance. Gold plated Phosphor Bronze contact ensures superior conductivity and durability. Operating frequency up to 1 GHz supports high frequency signal transmissions.
Bulkhead female connector with straight orientation for easy cable integration. PTFE insulation enhances insulation and reliability. Normal polarity with through-hole termination for excellent solder joints.
This product is manufactured in Taiwan, Province of China, and is suitable for industrial, laboratory, telecommunications, broadcasting, CCTV, and medical equipment applications where reliable RF connections are essential.
Choose RS PRO Coaxial Connectors for professional quality and trusted performance in your electronic and RF assemblies. Explore EnvMart for a wide range of connectors and accessories to complete your solutions.
