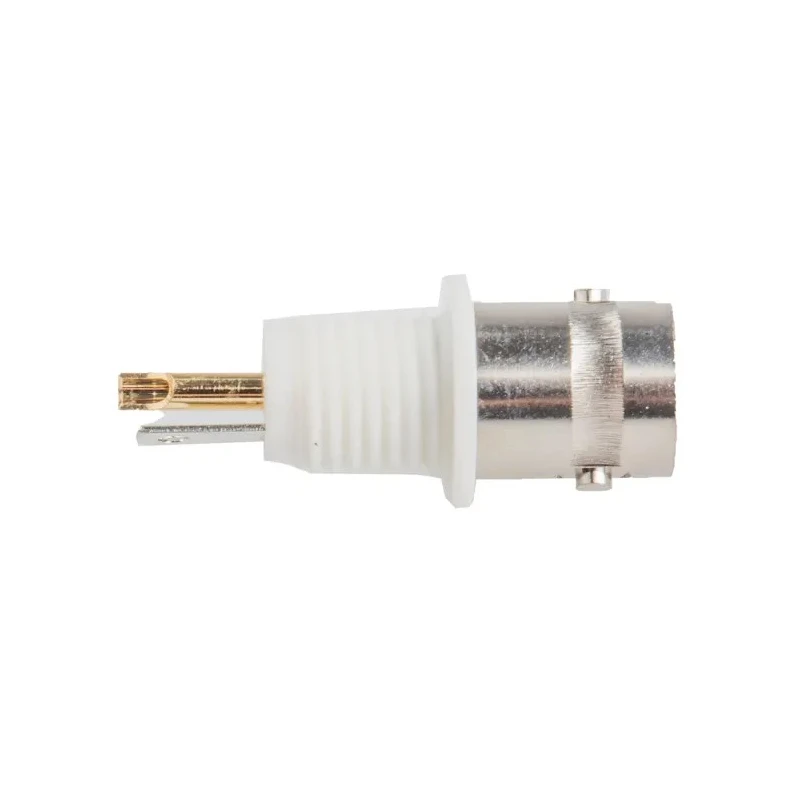

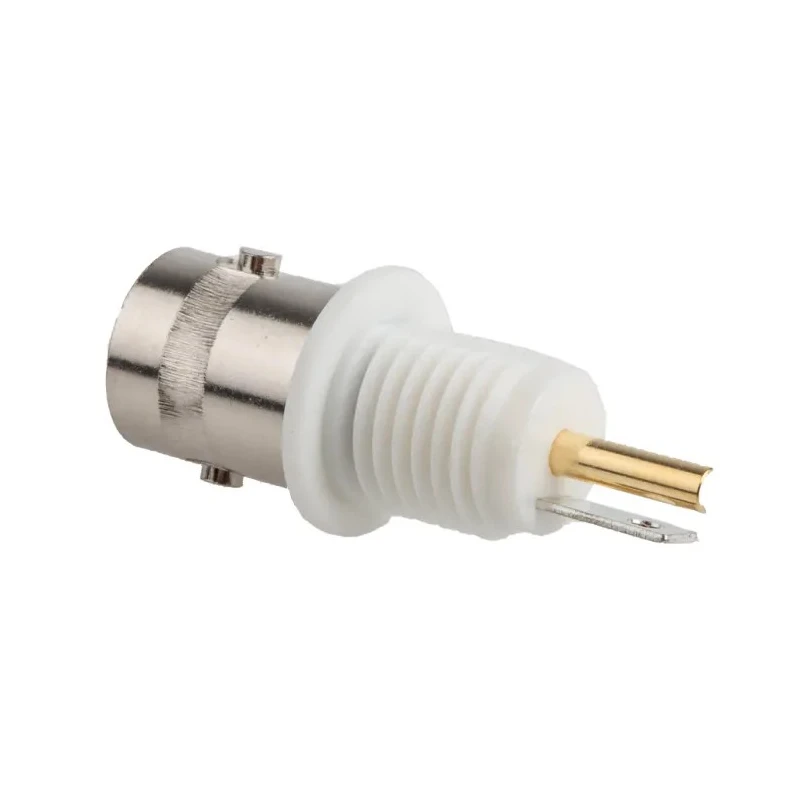

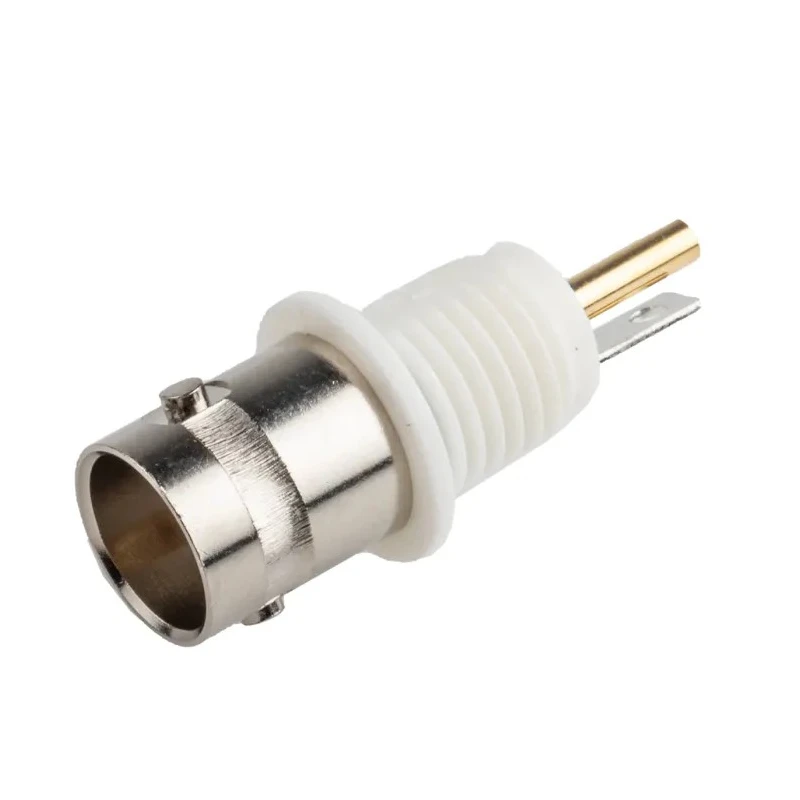

RS PRO Coaxial Connector Panel Mount Female BNC 75 Ω Straight Body Solder 546-3995
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-3995 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| • Insulation material | PTFE |
| RS PRO Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body SolderBrand | RS PRO |
| NiPt solder Insul BNC bulkhead skt,75ohmBrand | RS PRO |
Key Features
- Panel mount design with bulkhead for secure installation.
- Nickel plated robust body ensures durability and heavy-duty build quality.
- Gold-plated contact pins offer maximum conductivity and long service life.
- Operating frequency up to 4 GHz suitable for high-frequency applications.
- PTFE insulation material enhances reliability and performance.
- Suitable for antenna connections, telecom, medical equipment, and CCTV systems.
- Temperature range from -40°C to 60°C for wide environmental adaptability.
- Utilizes a convenient bayonet coupling system typical of BNC connectors.
Product Description
RS PRO 546-3995 is a high-quality Coaxial Connector designed for panel mount applications. Featuring a female BNC connector with 75 Ω impedance and a straight body, this component supports optimal signal transmission for RF and video devices.
The robust nickel-plated body provides excellent durability and resistance to wear, while gold-plated brass contacts ensure superior conductivity and long-lasting performance. The connector incorporates a PTFE insulator to maintain signal integrity and reliability under varying conditions.
Rated for use at frequencies up to 4 GHz and operating temperatures ranging from -40°C to 60°C, this connector is suitable for demanding commercial and industrial environments. Its bulkhead mount and screw-on nut enable secure panel attachment, making installation straightforward and stable.
This connector finds applications across antenna connections, cable modems, telecommunications equipment, medical devices, satellite communications, and CCTV monitoring systems. The standard size and normal polarity female contact configuration lend versatility for various coaxial cable setups.
Panel mount design with bulkhead for secure installation. Nickel plated robust body ensures durability and heavy-duty build quality. Gold-plated contact pins offer maximum conductivity and long service life. Operating frequency up to 4 GHz suitable for high-frequency applications.
PTFE insulation material enhances reliability and performance. Suitable for antenna connections, telecom, medical equipment, and CCTV systems. Temperature range from -40°C to 60°C for wide environmental adaptability. Utilizes a convenient bayonet coupling system typical of BNC connectors.
Connector gender is female with normal polarity for standard signal transmission.
This RS PRO coaxial connector is engineered to meet industrial and commercial electronic component standards and delivers consistent and dependable performance in diverse applications including laboratory, telecommunications, HVAC, and manufacturing sectors.
Explore the extensive RS PRO range for additional Coaxial Connectors and related electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 4 GHz, making it suitable for high-frequency applications.
This BNC connector has an impedance rating of 75 Ω, which is standard for many RF applications.
It operates within a temperature range of -40°C to 60°C, allowing for use in various environmental conditions.
The contact pins are made of brass and are gold-plated to ensure maximum conductivity and long service life.
This model features a panel mount design with a bulkhead for secure installation, complemented by a screw-on nut.
The insulation material used is PTFE, which enhances reliability and performance under varying conditions.
This connector has a straight orientation, which is typical for many coaxial applications.
It uses a solder termination type, which is common for secure connections in electronic applications.
The connector gender is female, which is standard for receiving connections in coaxial setups.
This model is suitable for applications including antenna connections, telecommunications equipment, medical devices, and CCTV systems.
The country of origin for this connector is Taiwan.
The body of this connector is nickel-plated, providing durability and resistance to wear.
