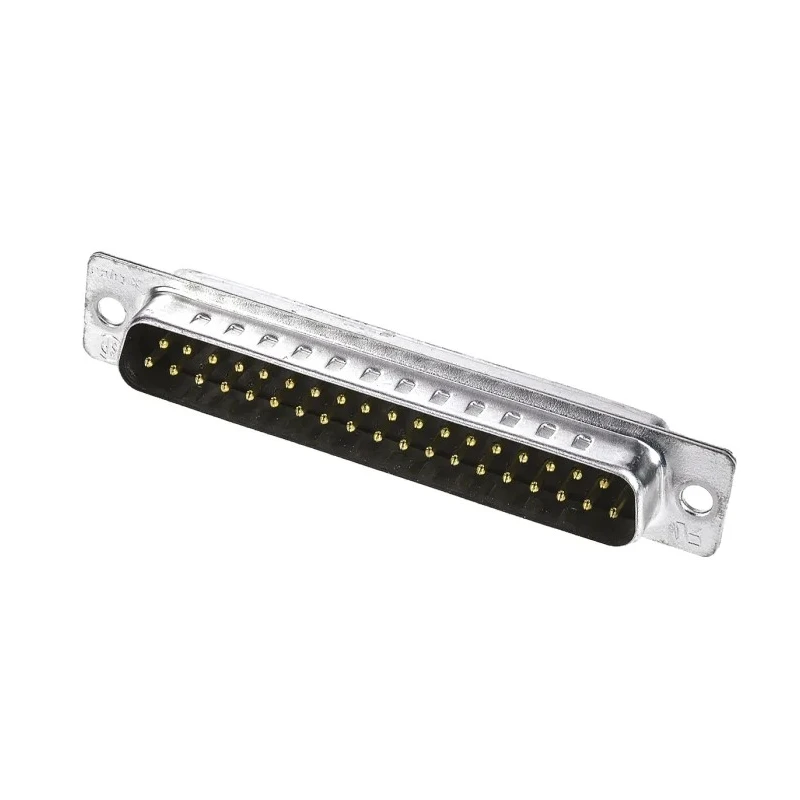

TE Connectivity AMPLIMITE HD-20 37 Way Straight Panel Mount D-Sub Connector Male 250V 3A 5-747916-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPLIMITE HD-20 37 Way Straight Panel Mount D-Sub Connector Male 250V 3A 5-747916-2

Name: TE Connectivity AMPLIMITE HD-20 37 Way Straight Panel Mount D-Sub Connector Male 250V 3A 5-747916-2
Brand: TE Connectivity
SKU: 190398
Price: 7.27 USD
Availability: InStock



Category D-Sub Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	TE Connectivity
Orientation	Straight
Current	3A
Mount Type	Panel Mount
Housing Material	Steel
Contact Material	Brass
Series	AMPLIMITE HD-20
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Contact Plating	Gold over Nickel
Number of Contacts	37
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub
D-Sub Shell Size	C

Key Features

Constructed with brass contacts plated with gold over nickel for enhanced conductivity and corrosion resistance.
Features a steel shell housing that provides robust mechanical protection and EMI shielding.
Supports panel mount installation with straight orientation and solder termination type.
Operates efficiently within a temperature range of -55°C to 105°C for versatility in extreme environments.
Compatible with HDE, HDF, HDP, and HD-20 board mount connectors for broad application use.
Incorporates full EMI shielding and ESD insulation to safeguard signal integrity.
Designed for communication and data interface applications requiring high-density and space-saving connectors.
Includes crimped shield terminations providing low impedance and strain relief.

Product Description

TE Connectivity 5-747916-2 AMPLIMITE HD-20 37 Way Straight Panel Mount D-Sub Connector Male is engineered to meet demanding industrial and commercial applications requiring durable, high-density connectors. Rated for 250V voltage and 3A current, this connector features a brass contact system plated with gold over nickel to ensure superior electrical performance and longevity.

Its steel housing enhances mechanical strength and provides effective EMI shielding critical in electronic environments subject to interference. The connector supports panel mount installation with a straight solder cup termination, accommodating straightforward integration on panels and electronic enclosures.

Operating reliably from -55°C to 105°C, it suits harsh environmental conditions including industrial automation, data communication systems, and power connectors within electronics assemblies. The AMPLIMITE HD-20 series connectors offer a 65% higher contact density than standard HD-20 connectors, enabling space-saving designs where size constraints are vital.

The solder cup contacts are duplex plated and allow mating with compatible HDE, HDF, HDP, and HD-20 series board mount connectors. EMI shielding and ESD insulation features ensure signal quality and device protection. The crimped shield provides strain relief and low impedance connections.

This connector is ideal for use in industrial controls, telecommunications, data processing equipment, and instrumentation requiring dependable electrical connectors with extended service life and minimized signal disturbance.

Constructed with brass contacts plated with gold over nickel for enhanced conductivity and corrosion resistance. Features a steel shell housing that provides robust mechanical protection and EMI shielding. Supports panel mount installation with straight orientation and solder termination type.

Operates efficiently within a temperature range of -55°C to 105°C for versatility in extreme environments. Compatible with HDE, HDF, HDP, and HD-20 board mount connectors for broad application use. Incorporates full EMI shielding and ESD insulation to safeguard signal integrity.

Designed for communication and data interface applications requiring high-density and space-saving connectors. Includes crimped shield terminations providing low impedance and strain relief. Conforms to AMPLIMITE HD-20 series standards offering a lower cost commercial alternative to military-grade connectors.
