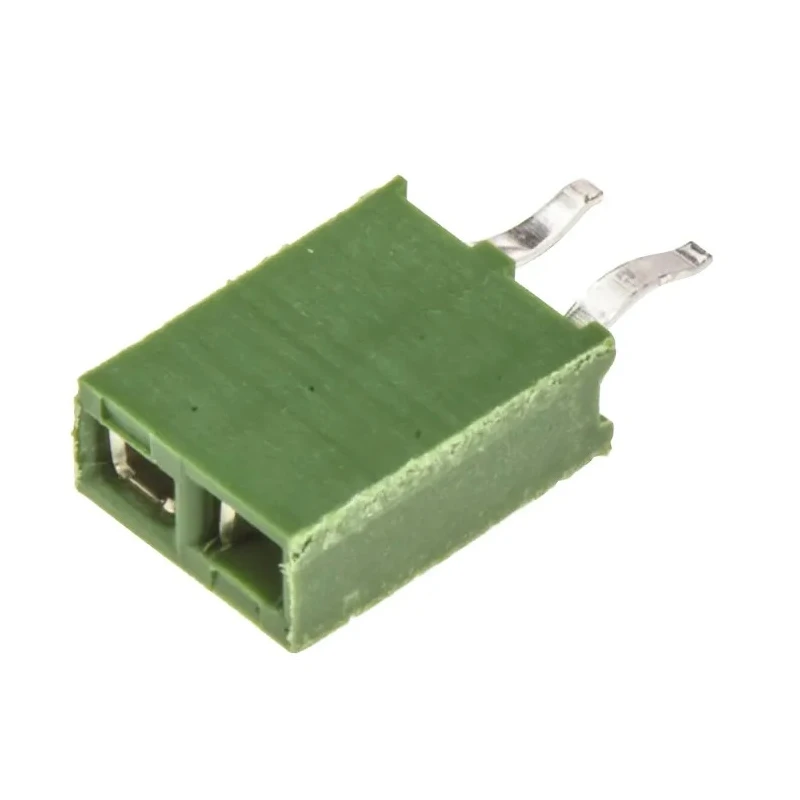

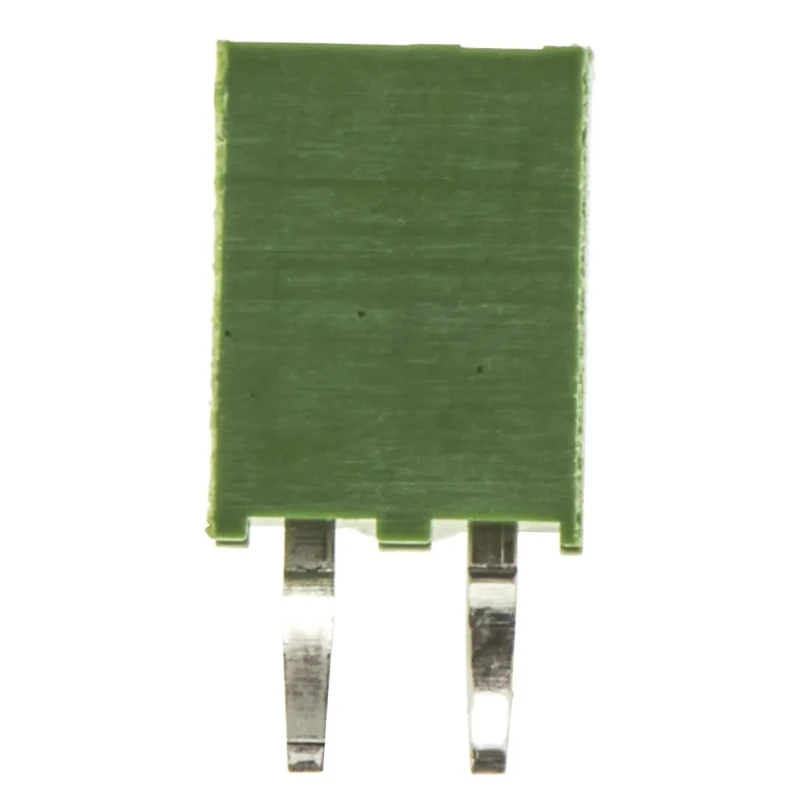

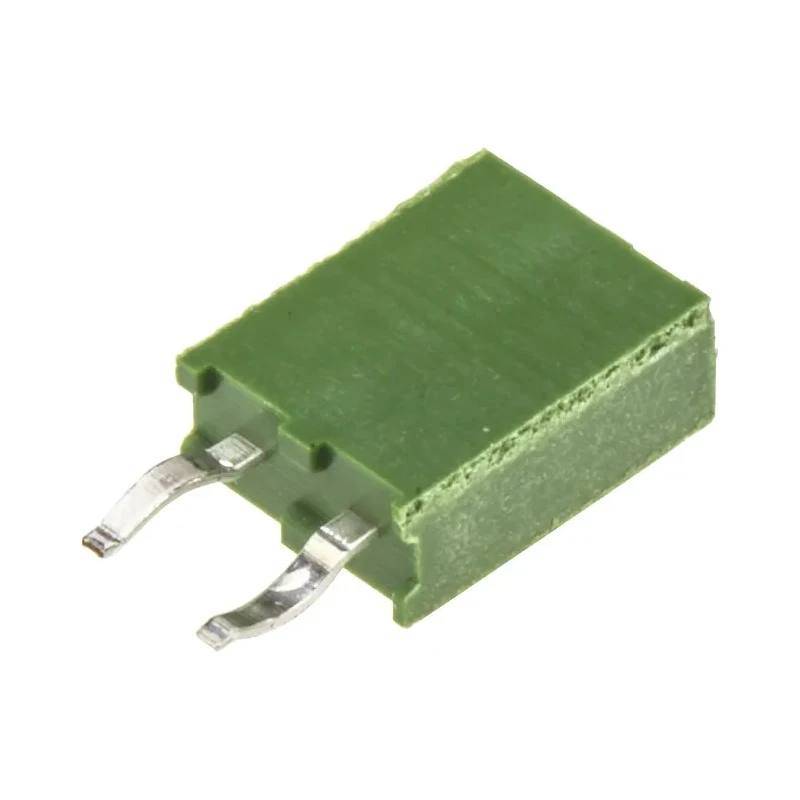

TE Connectivity AMPMODU HV100 Series Straight Through Hole PCB Socket 2-Contact 1 Row 2.54 mm Pitch Solder HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features kinked solder legs for enhanced PCB retention.
- Constructed with UL 94V-0 flame retardant thermoplastic housings.
- Incorporates board stand offs for stability and mounting support.
- Designed with a standard 2.54 mm pitch suitable for stacking applications.
- Supports a current rating of 12 A ensuring efficient electrical performance.
- Connector orientation is straight with through-hole mounting for robust mechanical strength.
- Contact material is bronze with tin plating, offering durability and corrosion resistance.
- Operates reliably in temperature range of -55°C to 105°C.
Product Description
TE Connectivity HV100 Series Straight Through Hole PCB Socket (Model HV100) is a high-quality PCB connector designed for board-to-board applications requiring a reliable current capacity of 12A and a precise 2.54 mm pitch solder termination.
This PCB socket features kinked solder legs that provide secure retention on the PCB, reducing the risk of disconnection during mechanical stress. The housing is made from UL 94V-0 flame retardant thermoplastic, enhancing safety and durability in industrial and electronic environments.
The socket includes board stand offs that maintain elevation and stability on the PCB, facilitating easier assembly and reliable mechanical connection. It supports through-hole mounting with a straight orientation for efficient and stable electrical connections.
The contacts are bronze with tin plating, ensuring excellent conductivity and resistance to corrosion, thus maintaining connection integrity over the product lifecycle. The operating temperature range extends from -55°C to 105°C, suitable for harsh environmental conditions found in industrial, manufacturing, and commercial electronics applications.
Available in two mounting heights, 7 mm and 8.5 mm, these sockets accommodate stacking requirements in compact PCB designs, enhancing design flexibility. The TE Connectivity AMPMODU HV100 series is ideally suited for power and signal transmission in industrial automation, instrumentation, control systems, and electronic equipment manufacturing.
Features kinked solder legs for secure PCB retention. Constructed from UL 94V-0 flame retardant thermoplastic housing. Includes board stand offs for improved PCB mounting stability. Standard 2.54 mm pitch for versatile stacking applications.
Rated for a current of 12A ensuring reliable electrical performance. Through-hole mount type with straight orientation. Bronze contact material plated with tin for durability and conductivity. Wide operating temperature range from -55°C to 105°C.
Two mounting height options: 7 mm and 8.5 mm. Explore related PCB Sockets and connectors in the Electronics & Electricals category on EnvMart for comprehensive industrial and electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 12A, ensuring efficient electrical performance.
The HV100 series socket features a standard pitch size of 2.54 mm, suitable for various stacking applications.
The socket is constructed with UL 94V-0 flame retardant thermoplastic housings and features bronze contacts with tin plating for durability and corrosion resistance.
This model operates reliably within a temperature range of -55°C to 105°C, making it suitable for harsh environmental conditions.
It is designed for through-hole mounting with a straight orientation, providing robust mechanical strength and stability.
The socket features kinked solder legs that provide enhanced retention on the PCB, reducing the risk of disconnection during mechanical stress.
This socket is available in two mounting heights: 7 mm and 8.5 mm, accommodating various stacking requirements.
This socket utilizes a board-to-board connector system, making it suitable for power and signal transmission applications.
The HV100 series socket has 2 contacts, designed for female connections in PCB applications.
The board stand offs provide stability and elevation on the PCB, facilitating easier assembly and reliable mechanical connection.
The contact material used in this PCB socket is bronze, which is plated with tin to enhance conductivity and resist corrosion.
This PCB socket is manufactured in India.
